Cisco 4000 Series 256 Channel Network Module High Density Voice Digital PVDM4-256
Cisco 4000 Series 256 Channel Network Module High Density Voice Digital PVDM4-256
Cisco 4000 Series 256 Channel Network Module High Density Voice Digital PVDM4-256
Cisco 4000 Series 256 Channel Network Module High Density Voice Digital PVDM4-256
Specifications
Brand Name :
cisco
Model Number :
PVDM4-256
Certification :
FCC
Place of Origin :
USA
MOQ :
1/unit
Price :
$2507/unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200/unit/day
Delivery Time :
3 days
Packaging Details :
Origianl New Cisco Box Packing
Slot :
On-board motherboard or T1/E1 module slot
Description :
256-channel high-density voice DSP module, or spare
Interface :
Integrated Services Card (ISC) slot on motherboard or T1/E1 NIM
Product Status :
In stock
Warranty :
1 year
Feature :
Motherboard PVDMs (PVDM4s)
Weight :
36 g
Low Complexity :
256
Description

Cisco 4000 Series 256 Channel Network Module High Density Voice Digital PVDM4-256

Product Information

The Cisco PVDM4 expands the capabilities of the Cisco 4451-X Integrated Services Router to provide voice and data support. The Cisco PVDM4 is installed on a slot on the motherboard or on Cisco Fourth-Generation T1/E1 Voice and WAN Network Interface Module.

Codec complexity describes the amount of processing power required to perform codec compression algorithm. Codec complexity affects the number of voice channels that is supported on the DSP module.

The following table lists the channel density support for different complexities for the different Cisco PVDM4 modules.

Table 1 Quick Spec.

Product Code PVDM4-256
Slot On-board motherboard or T1/E1 module slot
Description 64-channel high-density voice DSP module
Low Complexity 256
Medium Complexity 196
High Complexity 128
Device Type Voice DSP module
Form Factor Plug-in module
RAM 512 MB
Designed For Cisco 4431 router

Table 2 shows the details of PVDM4-256.

Feature Motherboard PVDMs (PVDM4s)
Components
DSP Multicore DSP technology
Interface Integrated Services Card (ISC) slot on motherboard or T1/E1 NIM
Features
Operating temperature 32° to 122°F (0° to 50°C)
Voltage 3.3V
Current 1.47A
Power 4.85W
Weight 0.08 lb (36 g)
Dimensions (H x W x D) 0.67 x 2.50 x 2.62 in. (1.7 x 5.1 x 6.7 cm)
Regulatory and Compliance
Safety Complies with:
IEC 60950 (worldwide)
AS/NZS 60950-1 (Australia and New Zealand)
CAN/CSA-C22.2 No. 60950-1, 1st and 2nd Ed. (Canada)
GB4943-95 (People's Republic of China)
EN60950-1, 1st and 2nd Ed. (CENELEC; includes EU and EFTA)
NOM-019-SCFI-1998 (Mexico)
UL 60950-1, 1st and 2nd Ed. (United States)
Homologation Platform dependent
Mean time between failures (MTBF) System dependent

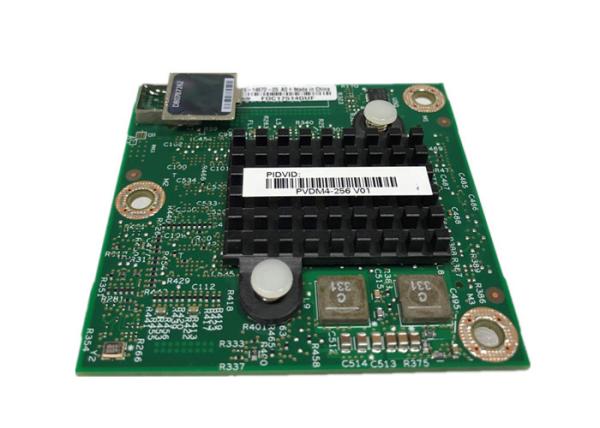

Show the appearance of PVDM4-256.

Cisco 4000 Series 256 Channel Network Module High Density Voice Digital PVDM4-256

Our Advantage

1.100% Cisco original factory sealed clean serial.
2. Extensive Real Inventory
3. Save up 50%-92% off the Global Price list
4. Flexible payment shipment
5. Unparalleled Experience Service

Shipping

1. Fast: in 2-3 days upon receipt of payment.
2. Safe: original package with protection foam in case of equipment broken in transportation
3. Economic: Low cost express fee via DHL, Fedex, TNT,EMS,Postal etc.
4. Flexible: We also ship to your Assigned Forwarder or Pickup by your forwarder
