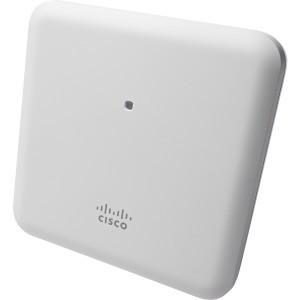

Cisco Aironet AP1852I IEEE 802.11ac 1.69 Gbit/s Wireless Access Point AIR-AP1852I-A-K9
Product Description:
Ideal for small and medium-sized networks, the Cisco® Aironet® 1850 Series delivers industry-leading
performance for enterprise and service provider markets via enterprise-class 4x4 MIMO, four-spatial-stream
access points that support the IEEE's new 802.11ac Wave 2 specification. The Aironet 1850 Series extends
support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops
that have integrated 802.11ac Wave 1 or Wave 2 support.
Networking
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 1.7 Gbps |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 5.0) |
Frequency Band | 2.4 GHz, 5 GHz |
Status Indicators | Status |
Features | DFS support, Wi-Fi Multimedia (WMM) support, Link Aggregation Control Protocol (LACP), Maximum Ratio Combining (MRC), 4T4R MIMO technology, 802.1x authentication, radio resource management (RRM), cyclic shift diversity (CSD), MU-MIMO technology, beamforming technology |
Encryption Algorithm | AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac (draft 5.0) |
Environmental Parameters
Min Operating Temperature | -4 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
General
Device Type | Wireless access point |
Ruggedized Design | Indoor |
Width | 8.3 in |
Depth | 8.3 in |
Height | 20 in |
Weight | 3.11 lbs |
Localization | Colombia, Venezuela, Canada, Bolivia, Peru, Paraguay, Ecuador, Costa Rica |
Processor / Memory / Storage
RAM | 1 GB |
Flash Memory | 256 MB |
Expansion / Connectivity

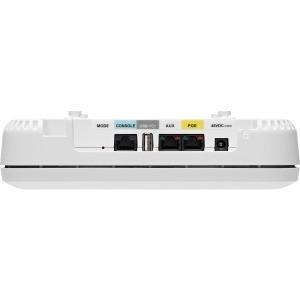

Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x 1000Base-T - RJ-45 |
Power
Power Over Ethernet (PoE) Supported | PoE+ |
Power Device | External power adapter |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Power Consumption Operational | 20.9 Watt |
Antenna
Antenna | Internal |
Directivity | Omni-directional |
Gain Level | 5 dBi |
