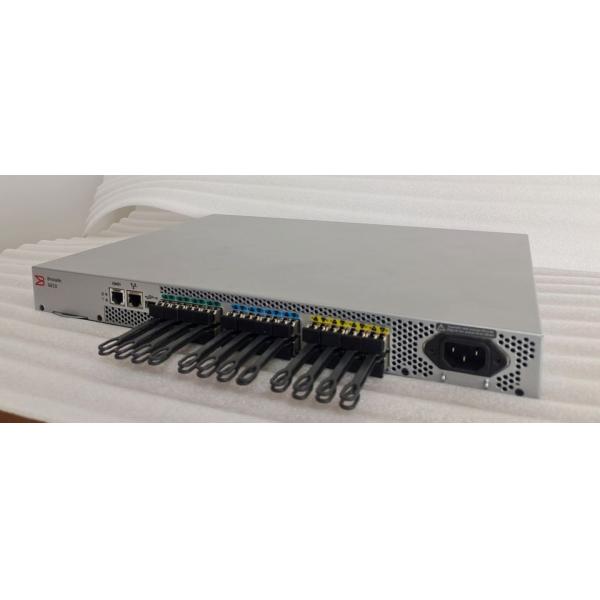

BR-G610-8-16G-0 Gigabit Ethernet Switch 8-Port 16G Brocade
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-Port 16G Brocade
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-Port 16G Brocade
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-Port 16G Brocade
Specifications
Brand Name :
N/A
Model Number :
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Certification :
N/A
Place of Origin :
China
MOQ :
1 pcs
Price :
$ 2942 $
Payment Terms :
Western Union T/T Bank Wire
Supply Ability :
25 PCS 3 DAYS
Delivery Time :
2---3 Working days
Packaging Details :
add protecting boxes outside original box
Product Name :
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Weight :
10.2kgs
Model :
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Package :
Standard cartoon original
Part Number :
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Warranty :
1 year
Keywords :
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Color :
Grey --- Silver
Description

BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade

Products Overview

BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed,full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade

Specification

Fibre Channel ports
Switch mode (default): 8-, 16-, and 24-port configurations (8-port increment through Ports on Demand [PoD] license); E_Ports,
F_Ports, M_Ports, and D_Ports. Brocade Access Gateway default port mapping: 16 F_Ports, 8 N_Ports.
Scalability
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Certified maximum
6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS? fabrics; larger fabrics certified as required.
Performance
Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed,full duplex; 28.05Gb/s
line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds
ISL trunking
Frame-based trunking with up to eight 32G SFP+ ports per ISL trunk; up to 256Gb/s per ISL trunk.Exchange-based load balancing
across ISLs with DPS included in Brocade Fabric OS fabrics.
Aggregate bandwidth
768Gb/s BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Maximum fabric latency
Latency for locally switched ports is <780 ns (including FEC).
Maximum frame size
2112-byte payload BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Frame buffers
2000 dynamically allocated
Classes of service
Class 2, Class 3, Class F (inter-switch frames)
Port types
F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports.Brocade Access Gateway mode: F_Port and NPIV-enabled
N_Port.
Data traffic types
Fabric switches supporting unicast
Media types
32G FC SFP+ LC connector: SWL, LWL, ELWL
16G FC SFP+ LC connector: SWL, LWL, ELWL
USB
One USB port for system log file downloads or firmware upgrades
Fabric services
Note: Some fabric services
do not apply or are unavailable
in Brocade Access Gateway
mode.
BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning);
Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact
Notification (FPIN); Fabric Vision; FDMI; Flow Vision; F_Port Trunking; FSPF; Integrated Routing;
ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port Decommission/Fencing; QoS;
Registered State Change Notification (RSCN); Target-Driven Zoning; VMID and AppServer
Management
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Management
HTTP/HTTPS; SNMP v1/v3 (FE MIB, FC Management MIB); SSH; Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav
Global View; EZSwitchSetup; Command Line Interface (CLI); RESTful API; trial licenses for add-on capabilities
Security
DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IP filtering, LDAP
with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, User-defined Role-Based Access Control (RBAC), Secure Copy (SCP), Secure
Syslog, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch
Management access
10/100/1000 Mb/s Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45) and one USB port.
Diagnostics
Active Support Connectivity (ASC) and Brocade Support Link (BSL); built-in flow generator; ClearLink optics and cable
diagnostics, including electrical/optical loopback, link traffic/latency/distance; Fabric Performance Impact Monitoring (FPI);
flow mirroring; Forward Error Correction (FEC); frame viewer; Monitoring and Alerting Policy Suite (MAPS); nondisruptive daemon
restart; optics health monitoring;
POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute); power
monitoring; RAStrace logging; Rolling Reboot Detection (RRD); Syslog/
Audit Log; VM Insight.
Mechanical
BR-G610-8-16G-0 Gigabit Ethernet Switch 8-port 16G New brocade
Enclosure
Back-to-front airflow (non-port-side intake); power from back, 1U
Size
Width: 428.80 mm (16.88 in.)
Height: 42.90 mm (1.69 in.)
Depth: 306.60 mm (12.07 in.)
System weight
5.75 kg (12.67 lb) with one integrated power supply, without transceivers

BR-G610-8-16G-0 Gigabit Ethernet Switch 8-Port 16G Brocade
