Specifications
Brand Name :
YINGHANG
Model Number :
BWG4-BWG24
Certification :
SGS
Place of Origin :
CHINA
MOQ :
5 tons
Payment Terms :
L/C, T/T
Supply Ability :
500 tons one month
Delivery Time :
15 days
Packaging Details :
Plastic inside, outside hessian or naylon woven
Price :
according size
Products Name :
Low Carbon Steel Wire Hot Dipped Galvanized Iron Wire For Construction Material
Keyword :
galvanized iron wire
Material :
Q195
Zinc Rate :
30-360g/m2
Wire gauge :
BWG4-BWG24
Galvanized technique :
Hot Dipped Galvanized,Electro Galvanized
Tensile Strength :
30kg-70kg/mm2
Elongation Rate :
10%-25%
Packing :
Plastic inside, outside hessian or naylon woven
Function :
Binding Wire,Baling Wire,armouring cable,Mesh netting,Galvanized Iron Wire
MOQ :
5TONS
Delivery :
10 Days
Description

Low Carbon Steel Wire Hot Dipped Galvanized Iron Wire For Construction Material

Galvanized iron wire is made with mild steel, hard-drawn, and then galvanized. It is rust-resistant, and very versatile in applications. Galvanized iron wire can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire. galvanized wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g /sqm. With zinc coating thickness, corrosion resistance and other characteristics.

Galvanized wire(Galvanized steel wire, galvanized iron wire, G.I wire) is devided into hot-dip galvanized wire and electro galvanized wire in terms of galvanization method. The most common method is hot-dip galvanizing, in which the wire is submerged in a bath of molten zinc. Normally Hot-dip galvanized wire has two grades in zinc layer thickness: regular coating and Heavy coating.

Hot Dipped Galvanized Iron Wire Specification:

Material Low Carbon Steel Q195
Diameter BWG5-BWG24
Zince Coated 30-360g/M2
Tensile Strength 350-550mpa/mm2
Elongation Rate 10%-25%
Weight/coil 0.1kg-1000kg/coil
Packing Plastic Inside Outside Hessian or Nylon Woven
Applicatons Use to Wire Rops, Wire Mesh And Fencing Weaving, Consruction Binding .

Hot Dipped Galvanized Iron Wire Size:

Wire Gauge SWG in mm BWG in mm in Metric System mm
8# 4.06 4.19 4
9# 3.66 3.76 -
10# 3.25 3.4 3.5
11# 2.95 3.05 3
12# 2.64 2.77 2.8
13# 2.34 2.41 2.5
14# 2.03 2.11 -
15# 1.83 1.83 1.8
16# 1.63 1.65 1.65
17# 1.42 1.47 1.4
18# 1.22 1.25 1.2
19# 1.02 1.07 1
20# 0.91 0.89 0.9
21# 0.81 0.813 0.8
22# 0.71 0.711 0.7

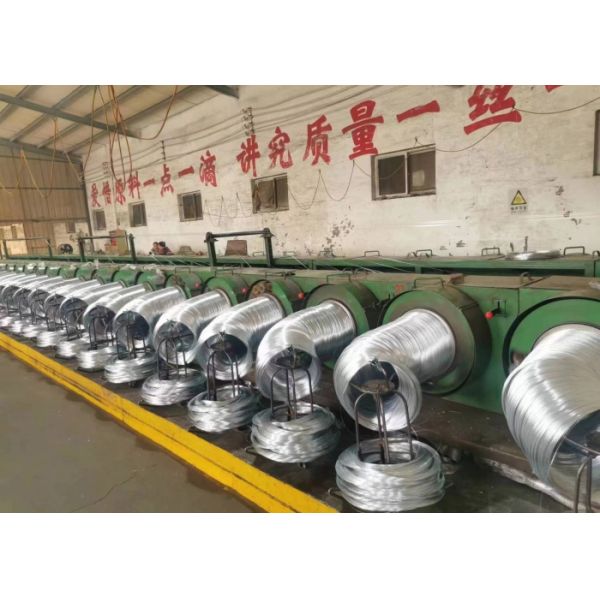

Galvanized Iron Wire Production Process:

Steel Rod Coil⇒Wire Drawing⇒Wire Annealing⇒Rust Removing⇒Acid Washing⇒Boiling⇒Drying⇒Zice Feeding⇒Wire Coiling

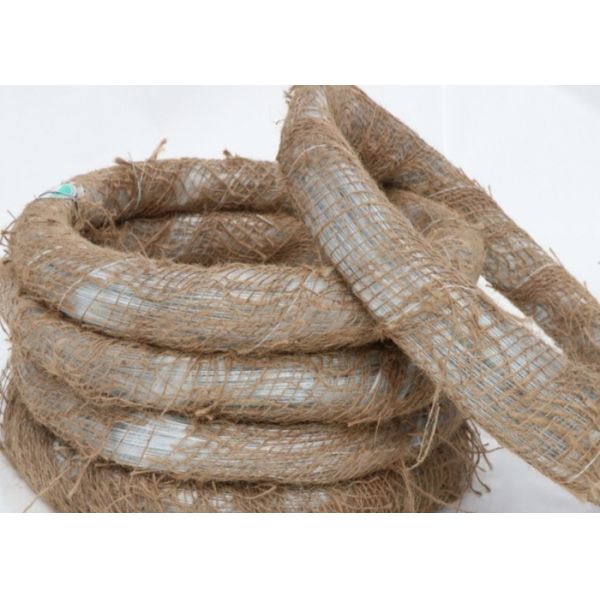

Galvanized Iron Wire Packing :

1. Plastic inside and nylon woven outside.

2. Plastic inside and hessian outside.

3.According customer ask.
