Factory Direct Sale Customized Galvanized H-Beam Steel I Beam Steel Structural Steel Top Beam
Factory Direct Sale Customized Galvanized H-Beam Steel I Beam Steel Structural Steel Top Beam
Factory Direct Sale Customized Galvanized H-Beam Steel I Beam Steel Structural Steel Top Beam
Factory Direct Sale Customized Galvanized H-Beam Steel I Beam Steel Structural Steel Top Beam
Factory Direct Sale Customized Galvanized H-Beam Steel I Beam Steel Structural Steel Top Beam
Factory Direct Sale Customized Galvanized H-Beam Steel I Beam Steel Structural Steel Top Beam
Specifications
Brand Name :
YINGHANG
Model Number :
Q235/Q345/S355/S235/SS400/ASTM36 etc.
Certification :
ISO9001
Place of Origin :
China
MOQ :
25tons
Price :
$400-$550
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
10000tons per monthly
Delivery Time :
within 7 days
Packaging Details :
Exporting packing
Grade :
Q235B
Standard :
ASTM
Tolerance :
±1%
Alloy Or Not :
Non-Alloy
Technique :
Hot Rolled
Thickness :
5-34mm
Length :
2-12m
Payment terms :
30%T/T Advance + 70% Balance
Description

Factory Direct Sale Customized Galvanized H-Beam Steel I Beam Steel Structural Steel Top Beam


H-Beam Introduction:


Structural steel beams are used in a variety of applications thanks to their versatility, strength and affordability.

Edcon Steel stocks and sells a range of structural steel beams , and channels, which are a great solution for a range of applications, including house building and renovations, construction, infrastructure, strutting beams, floor bearer beams, verandah beams and lintel beams and rafters.

Usingstructural steel in housing, we have compiled a guide for beginners to assist you in choosing the right structual steels product from our range.

H-Beam Materials:

Q235/Q345/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR

Size H*B*t1*t2(mm) KG
200*200 200*200*8*12 50.5
200*204*12*12 56.7
250*250 250*250*9*14 72.4
250*255*14*14 82.2
300*300 294*302*12*12 85
300*300*10*15 94.5
300*305*15*15 106
350*350 344*348*10*16 115
350*350*12*19 137



400*400



 388*402*15*15 141
394*398*11*18 147
400*400*13*21 172
400*408*21*21 197
414*405*18*28 233
428*407*20*35 284
458*417*30*50 415
498*342*45*70 605


Benefits of structural beams:

Significantly lower in beam depth (or height) compared to timber: this not only provides you more space but is important in buildings with low headroom where you need to maximise ceiling heights.
Minimal deflection over the long term: Structural steel is very stable and does not generally sag further over time. Structural beams do not bow, warp or twist, ensuring no long-term movement problems.
Sustainability: Steel is infinitely recyclable. Learn more about the steel recycling journey.
Steel beams have the ability to be pre-cambered (charges apply): This means after your beams come under load and deflect, the result is a straight beam (consult with your engineer if this is of interest).

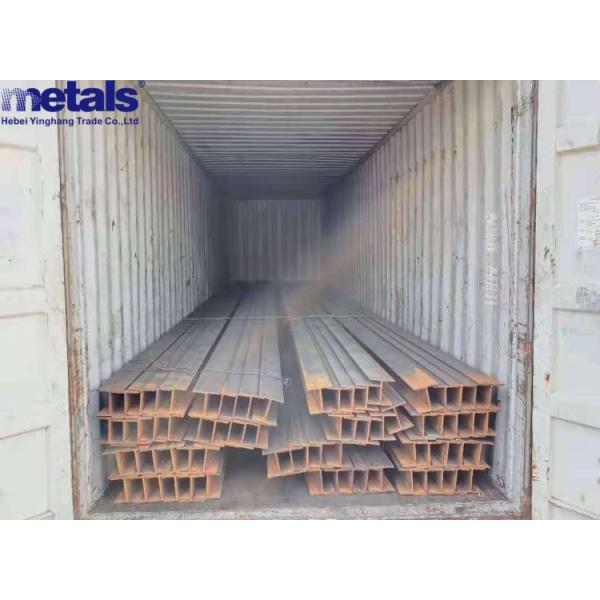

Packing:

Factory Direct Sale Customized Galvanized H-Beam Steel I Beam Steel Structural Steel Top Beam
