Kevlar Ropes for Glass Temepring furnace/ Firber ropes

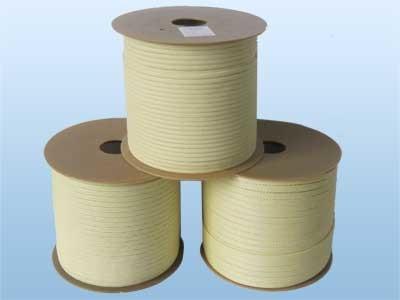

Kevlar Aramid Ropes for Glass Tempering Furnace 10 x 5mm
Mainly For Quenching Section, Loading/unloading Section
1. Application:
- Kevlar Aramid high temperature roller rope is made of aramid 1414 twisted, aramid fiber has high temperature resistance, fire retardant and high pressure resistance.
- Wear resistance, heat resistance, chemical resistance, good mechanical properties, etc.
- Uses: is mainly used for: glass tempering furnace roller conveyor. tempering furnace roller winding. Kiln furnace industrial furnace insulation, etc.
2. Main Features:
- Low specific gravity
- The product has a density of only 1.36g/cm3 and is lightweight and easy to transport and replace.
- Low extension
- The product has a low elongation of only 3.6% and is not easily deformed during long-term use.
- Low thermal expansion coefficient
- When the product is exposed to hot objects, the product will not be deformed due to sudden high temperature, which will affect normal use.
- High intensity
- The product is made of Kevlar fiber and has high strength, wear resistance and high temperature resistance.
- High temperature resistance, flame resistance
- The product has high temperature resistance, long-term high temperature resistance up to 330 ° C, short-term high temperature resistance is up to 600 ° C Degree, fire retardant does not support combustion.
- High chemical resistance, high stability, and resistance to creep
- The product is chemically stable. When it is attacked by strong acid and alkali materials, it will not produce large performance changes.
- It is used normally in harsh environments, so it has a long service life and does not need to be replaced frequently.
- The product is non-conductive and electrically insulated, making the product safer during use and isolating the risk of electric shock.
3. Specification (or customized):
5.5×5.5mm | 12×3.0mm |
6.0×6.0mm | 12×3.5mm |
8×3.0mm | 12×4.0mm |
8×4.0mm | 13×3mm |
12×1.5mm | 13×3.5mm |

Products Characteristics:


Fiber rope changing
During operating, fibre ropes of rollers were easy damaged sometimes because of high temperature, once you found the fibre ropes were broke, you should maintain or change them as soon as possible. And you shall notice following points when changing fibre rope:
on. Screw-pitch shall be evenly, rotary direction shall be same with original rotary direction.
- When twisting fiber rope, operator should smear glue on the inner surface of fiber rope to adhere with rollers, and assure no glue exists on the surface of non-twined fiber rope of rollers. Which can avoid the broken glass adhering on the rollers after glasses were broke.
- Head of fibre rope shall be fixed firm and reliable, head of fixing screw is not allowed to higher than surface of roller.
- After dismantled the damaged fiber rope, operator should completely eliminate the colloidal matters on roller surface and other attachments to assure the light and clean of roller surface.
- When twisting fibre rope, it shall be in state of tension all the time, straight and no contortion. Screw-pitch shall be evenly, rotary direction shall be same with original rotary direction.
- When twisting fiber rope, operator should smear glue on the inner surface of fiber rope to adhere with rollers, and assure no glue exists on the surface of non-twined fiber rope of rollers. Which can avoid the broken glass adhering on the rollers after glasses were broke.
- Head of fibre rope shall be fixed firm and reliable, head of fixing screw is not allowed to higher than surface of roller.
