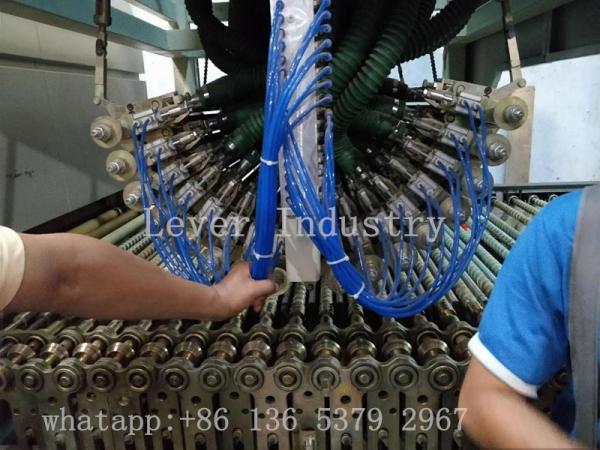

LV-TB-L Series Bending Glass Tempering Furnace for Automobile Sidelites glass
LV-TB-L Series Bending Glass Tempering Furnace for Automobile Sidelites glass
Specifications
Brand Name :
Lever
Model Number :
LV-TB-L series
Certification :
CE/ISO
Place of Origin :
Luoyang city, China
MOQ :
1 set
Price :
FOB Qingdao port, USD300,000-600,000 per set
Supply Ability :
100 sets
Delivery Time :
120 days
Packaging Details :
seaworthy or customized
Payment Terms :
L/C, T/T
machine type :
Glass Tempering Furnace
Application :
Automotive glass, sidelites, side window
Production capacity :
customerized, & Continuous bending type available
Ceramic rollers :
Vesuvius brand
PLC :
Siemens
Glass Processing Machine :
Glass Toughening Machine
Glass Machine :
Glass Toughened furnace
Glass oven :
Glass Tempering Furnace
Glass Tempering Machine :
Glass Tempering Machine
Description

Bending Glass Tempering Furnace / Bending Glass Toughening Furnace / Bending Glass Tempering Machine / Bending Glass Toughening machine / Bending Glass Tempering Oven

1. Machine Application

Continuous Bending Glass Tempering Machine is a special plant used to produce the bent tempered glass, which mainly used in the fields of side windows (sidelites) of automotives, trucks, shower room, furniture, etc. The side door of the automotive should be single curvature. Our customer produced the side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.

Model Max. Loading Area Min.Glass Size Thickness Min.Radius
(mm) (mm) (mm) (mm)
LV-TB1206L 1200 x ⌒600 150 x ⌒280 3～19 ≧350
LV-TB1608L 1200 x ⌒800 150 x ⌒280 4～19 ≧450
LV-TB2010L 2010 x ⌒1000 150 x ⌒280 4～19 ≧500

2. Main Technical Features:

2.1. The bending forming is with servo motors & servo controllers which from Yaskawa, Japan.

2.2. Higher precision and speed arc-changing.

2.3. Most advanced bending forming technology in China. Easy & accurate arc-adjustment. The glass type change could be finished within few minutes.

2.4. Helix matrix structure for heating oven, which can control the temperature of each area independently.

2.5. Full closed heating oven and high quality Insulating materials with top performance which can ensure a minimum power consumption and uniform oven temperature.

2.6. Fault diagnosis system for the heating elements.

2.7. PID temperature control,

2.8. Preventive function for the wrong operation

2.9. Synchronous and asynchronous running of each section

2.10. Power monitoring function

2.11. Suitable for processing clear float glass, patterned glass, reflective glass, low-e glass, etc.

2.12. Standard for processed products: GB15763.5, GB9656, EN12150-1:2000, ECER-43, ANSIZ97.1, etc.
