Specifications
Brand Name :
Lever
Model Number :
LV-TB-L
Certification :
CE
Place of Origin :
Luoyang city, China
MOQ :
1 set
Price :
USD100,000 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 SETS PER YEAR
Delivery Time :
120 Days
Packaging Details :
seaworthy
machine type :
glass tempering furnace
usage :
Automotive glass, sidelites, side window
capacity :
customerized, & Continuous bending type available
ceramice rollers :
World best Vesuvius brand
glass size :
1200 x 900mm
glass thickness :
3mm
Description

Continuous Production Side Glass Tempering Furnace for Car Side lites

1. Machine Application

  • Continuous Production Side Glass Tempering Furnace is a special plant used to produce the bent tempered glass, which mainly used in the fields of side windows (sidelites) of automotives, trucks, shower room, furniture, etc. The side door of the automotive should be single curvature. Our customer produced the side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.
Model Max. Loading Area Min.Glass Size Thickness Min.Radius
(mm) (mm) (mm) (mm)
LV-TB1206L 1200 x ⌒600 150 x ⌒280 3～19 ≧350
LV-TB1608L 1200 x ⌒800 150 x ⌒280 4～19 ≧450
LV-TB2010L 2010 x ⌒1000 150 x ⌒280 4～19 ≧500

2. Supply Scope:

  • Loading table
  • Heating section

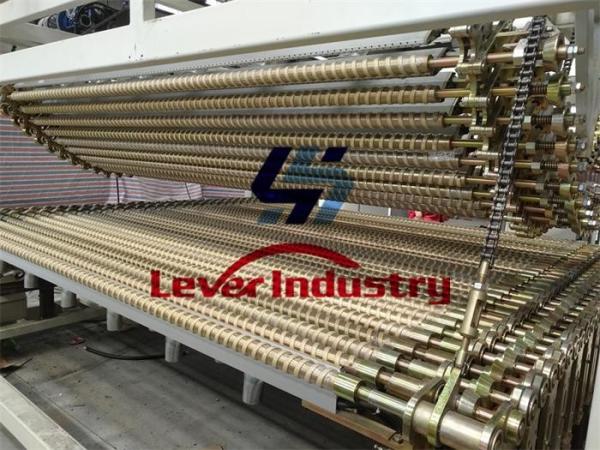

  • Bending Glass section (Rigid shaft bending)
  • Unloading table
  • Blowers system
  • Electrical & control system
  • Spare parts as listed in appendix
  • Technical documents

3. Main Technical Features:

  • The bending forming is with servo motors & servo controllers which from Yaskawa, Japan.
  • Higher precision and speed arc-changing.
  • Most advanced bending forming technology in China. Easy & accurate arc-adjustment. The glass type change could be finished within few minutes.
  • Helix matrix structure for heating oven, which can control the temperature of each area independently.
  • Full closed heating oven and high quality Insulating materials with top performance which can ensure a minimum power consumption and uniform oven temperature.
  • Fault diagnosis system for the heating elements.
  • PID temperature control,
  • Preventive function for the wrong operation
  • Synchronous and asynchronous running of each section
  • Power monitoring function
  • Suitable for processing clear float glass, patterned glass, reflective glass, low-e glass, etc.
  • Standard for processed products: GB15763.5, GB9656, EN12150-1:2000, ECER-43, ANSIZ97.1, etc.

Continuous Production Side Glass Tempering Furnace for Car Side litesContinuous Production Side Glass Tempering Furnace for Car Side litesContinuous Production Side Glass Tempering Furnace for Car Side lites
