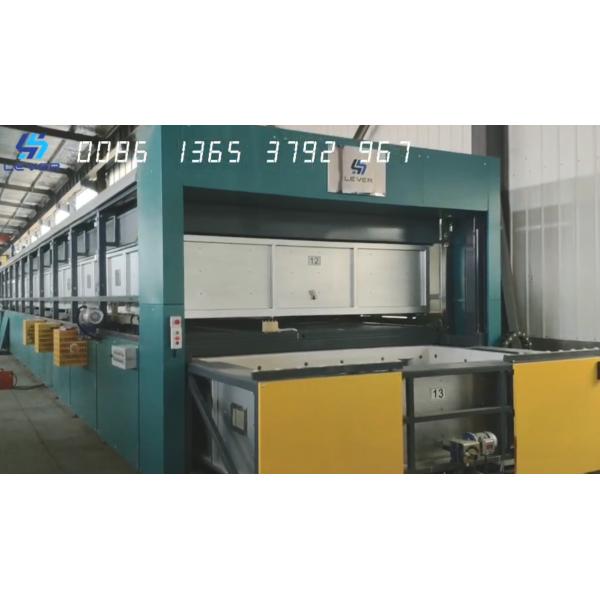

660KW Laminated Windshield Glass Bending Furnace
660KW Laminated Windshield Glass Bending Furnace
Specifications
Brand Name :
Lever
Model Number :
LV-CTB series
Certification :
CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union, MoneyGram,
Supply Ability :
50 Sets per year
Delivery Time :
120 days
Packaging Details :
seaworthy
Product Name :
Automotive Glass Windshield Bending machine
Application :
for car bus automotive front windshield glass
Automatic :
Computer control
glass bending :
mold bending
Productivity :
About 240-300 pairs/8h (2+2mm)
Warranty :
life time services.,12 Monthsa quality guarantee
Dimension(l*w*h) :
Customized
Wagons qty :
21 No. Wagons
Description
  • Windshield Glass Bending Furnace / windscreen Laminated Glass Making machine

1. Machine Application
Continuous Automotive Front Windshield / windscreen Glass Bending Furnace is a special plant used to produce the laminated windshield for the car. It is the first processing machine in the whole windshield production line. The glass produced by this machine is the thermal bent glass.

2. Supply Scope:
2.1. Loading system
2.2. Pre-Heating chamber

2.3. Heating Chambers
2.4. Pre-forming Chamber

2.5. Forming Chamber

2.6. Annealing chamber

2.7. Cooling chabmers

2.8. Unloading table

2.9. Electrical control cabinet

3. Machine Main Features:
3.1. The machine adopts computer-control with high automatization, easy operation and high finished product.
3.2. The machine adopts inverter, movement smooth, fluent and with the high reliable.
3.3. There are sliding stainless-steel rails on the wagons and the molds and glass can move freely on them, easy for the change of molds and glass loading and unloading. The wagon's transverse moving adopts computer-controlled, which has the advantages of running rapid and reliable, to decrease working intensity and increase efficiency.
3.4. The door of wagons is moveable, loading and unloading glass easier.
3.5. Automatic temperature control and display for the heating chamber, easy for operating.

4. Technical Specifications:

► heating box Dimensions: 2850×1820×640mm
► heating tank insulation material thickness: 80mm
► heating box Number: 21
► Electric heating power: 660 KW
► Product (Max.): 2200 × 1200mm
► Compressed Air 0.3m3 / h
► Cooler Power: 0.37KW × 8

► Yield (Max.):

For reference only, according to glass shape and bend depth, thickness etc.

 About 240-300 pairs/8h (2+2mm)

  • 660KW Laminated Windshield Glass Bending Furnace
