Flat Glass Tempering Furnace , Customized Tempered Glass Machine 1500 X 2500mm
Flat Glass Tempering Furnace , Customized Tempered Glass Machine 1500 X 2500mm
Specifications
Brand Name :
LEVER
Model Number :
LV-TF1525
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
FOB Qingdao Seaport, China USD155,000
Payment Terms :
T/T, or L/C, Western Union, MoneyGram
Supply Ability :
40 SETS Per Year
Delivery Time :
90 days
Packaging Details :
wooden case or seaworthy packing in container by sea
Machine Type :
Tempered Glass Making machine
Glass Application :
Architecture, Furniture household, showeroom glass etc
Process Max. Glass Size :
1500*2500mm
Glass Thickness range :
4-19mm
PLC :
Siemens
Heating Power :
225KW
Blower Power :
185KW
Productivity :
16-18 loads per hour for 4mm thickness glass
Description

Customized Tempered Glass Machine Flat Glass Tempering Furnace 1500 x 2500mm

Our machines' advantage compared to others,

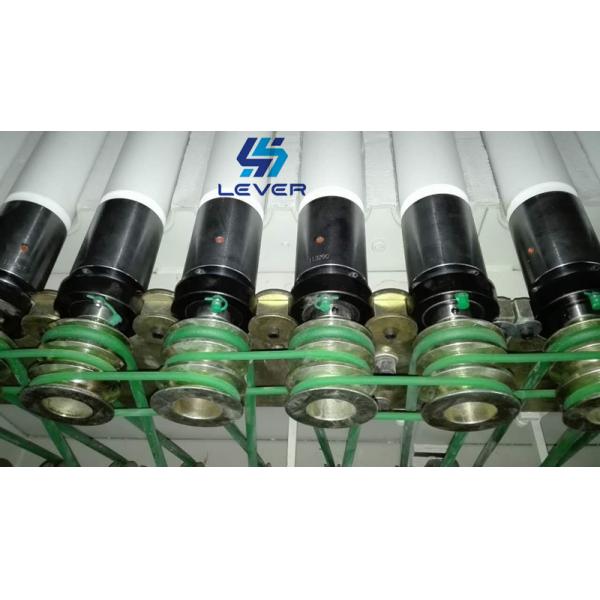

  • Multiple belt driving for ceramic rollers.
  • Our heating elements adopt the gapless design heating (parallelogram shape), which could make the heating more even and improve the finished product rate and better product quality.
  • We use helical gear type reducer for driving, more reliable & stable running. Others use cheap cycloidal needle type reducer.
  • use the same top quality insulating materials for whole heating oven (inner side and outer side), save energy consumption.
  • Independent Nozzles for upper quench.
  • More air inlets in quenching section, which guarantee more homogeneous air blowing.

Supply Scope:

  • Loading table
  • Heating section
  • Flat Tempering and quenching section
  • Unloading table
  • Blower system
  • Electrical & control system
  • Generator for emergency power of computer system
  • Spare parts as listed in appendix

Machine Application

Leverglass Flat Glass Tempering Machine is a specially used to produce the flat tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), shower room, home appliance, garden fence, elevator, furniture, etc.

The machine adopts industrial control computer and PLC, the speed can be adjusted by the inverter steplessly. High automation made it reliable and precise, easy to operate and efficient.

Popular machine models for option:

Model

Max. Loading Area

Min.Glass Size

Thickness

Capacity

(mm)

(mm)

(mm)

(Batch/Hour)

LV-TF1525

1500 x 2500

150 x 280

3～19

15～17 (5mmfor example)

LV-TF2436

2440 x 3660

150 x 280

4～19

15～17 (5mmfor example)

LV-TF2442

2440 x 4200

150 x 280

4～19

15～17 (5mmfor example)

LV-TF2450

2440 x 5000

150 x 280

4～19

15～17 (5mmfor example)

LV-TF3060

3000 x 6000

150 x 320

5～19

15～17 (5mmfor example)

LV-TF3380

3300 x 8000

150 x 320

5～19

15～17 (5mmfor example)
