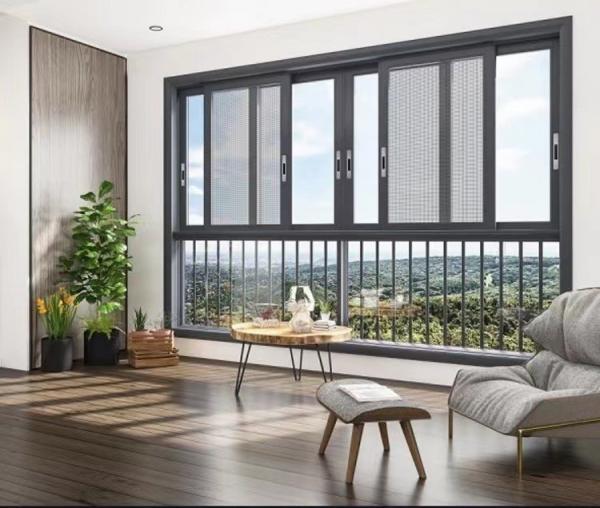

6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
Specifications
Place of Origin :
Shandong, China
Brand Name :
Skate
Model Number :
SKATE 85 series silding window
Frame Material :
Aluminum Alloy
Opening Pattern :
Horizontal
Screen Netting Material :
Stainless steel
Warranty :
5 years
Material :
Aluminum
Feature :
Folding Screen
Open Style :
Sliding
Function :
Soundproof
After-sale Service :
Return and Replacement, Online technical support, Onsite Training, Free spare parts
Project Solution Capability :
3D model design
Application :
Bedroom
Design Style :
Modern
Curtain Type :
hanging
Series :
SKATE 85 series silding window
Section :
Broken bridge aluminum profile
Overlapping Length :
6mm
Opening Mode :
silding/tilt and turn
Number Of Sealing Layers :
8-way seal
Wall Thickness :
2.2 mm
Air Tightness :
Level 8
Wind Pressure Resistance :
Level 9
Glass :
5+12A+5+12A+5
Color :
customize
Port :
Shanghai
MOQ :
10 square meters
Price :
$256.00 - $279.00/square meters
Description
Product Feature
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
Specification
Series
SKATE 85 series silding window
Section
Broken bridge aluminum profile
Hardware
SKATE original hardware
Overlapping Length
6mm
Opening Mode
silding/tilt and turn
Number Of Sealing Layers
8-way seal
Wall Thickness
2.2 mm
Thermal Insulation Performance
1.1W/ (㎡·K) Grade 9
Wind Pressure Resistance
Level 9
Water Tightness
Level 6
Air Tightness
Level 8
Heat Insulation Strip
High strength nylon PA66
Seal Strip
High quality TPE EPDM adhesive strip
Angle Plate
Welding pin gluing process 304 stainless steel gluing angle plate
Screen Window
304 stainless steel mesh
Glass
5+12A+5+12A+5
Color
customize
Product Description
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
Product quality assurance
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
Packing & Delivery
6mm Overlapping Length Aluminium Three Track Sliding Windows for Advanced Designs
Company Profile
SKATE is one of the first famous doors and Windows brands to enter the home decoration doors and Windows industry in China. It has now developed into a well-known Chinese enterprise mainly engaged in system doors and Windows, sunshine room, smart home, health and other related industries. Since its inception, SKATE adhere to the quality line, the pursuit of excellence, concentrate on the design and research and development of passive high-end doors and Windows, let more families use energy-saving and environmentally friendly passive doors and Windows is the most important corporate responsibility and social mission of SKATE's people. For more than 20 years, SKATE has adhered to its original intention and walked unswervingly till today!
