PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
Specifications
Brand Name :
Fiber Optic Cable Protection Fusion Splice Sleeve
MOQ :
500 pcs
Price :
0.01-0.2USD per pcs
Supply Ability :
500000 pcs per week
Delivery Time :
5-15 working days based on qty
Packaging Details :
Fiber Optic Cable Protection Sleeve will packing with standard export carton box
Model Number :
Fiber Optic Machine RIBBON FIBER (30~60MM)
Certification :
ISO9001 2015
Place of Origin :
Guangdong Shenzhen
Item Name :
Fiber optic cable protection fusion splice sleeve
Steel Size :
1mm, 1.2mm, 1.5mm
Application :
Protect Splicing Point
Shrinking Temperature Range :
110 to 130°C
Working Temperature :
-45 to 110°C
Clad DiameterLength :

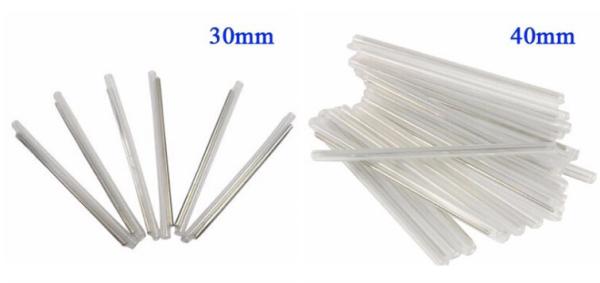

25/ 35/45/40/60mm or customize
Tensile Strength (Mpa) :
20
Raw Material :
PE
Description

Fiber Optic Cable Protection Fusion Splice Sleeve Fiber Optic Components

The sleeve can be divided into two types(single and mass) according to the function.

The single type is used for the single-fiber, and the mass type is used for the ribbon fiber.

It is different in the reinforcement between two types.

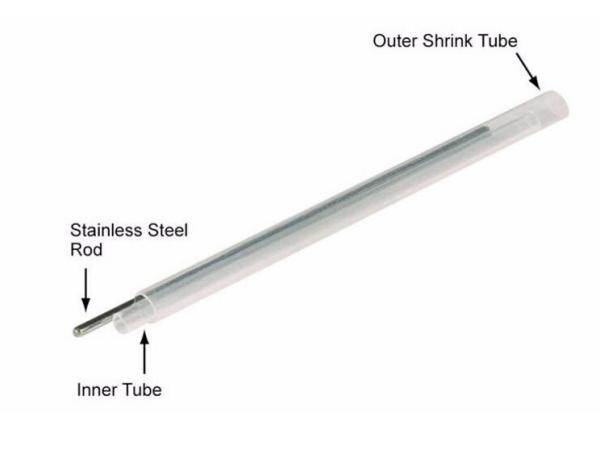

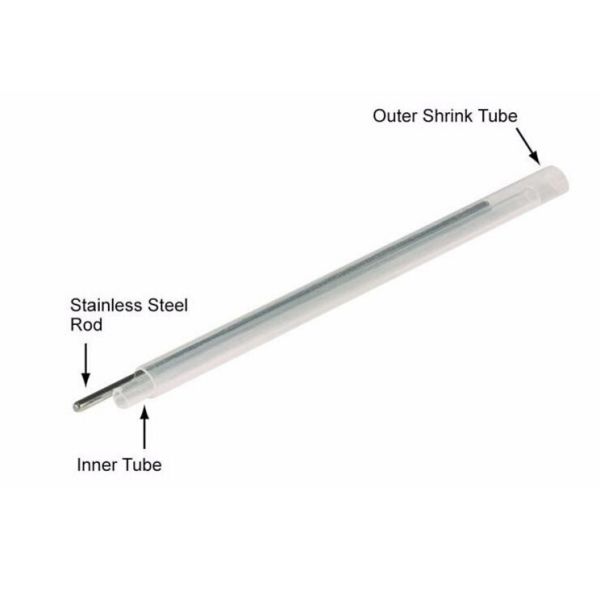

The single one realizes the reinforcement by the stainless steel needles,

the later one via the ceramic reinforcement member to realize the function.

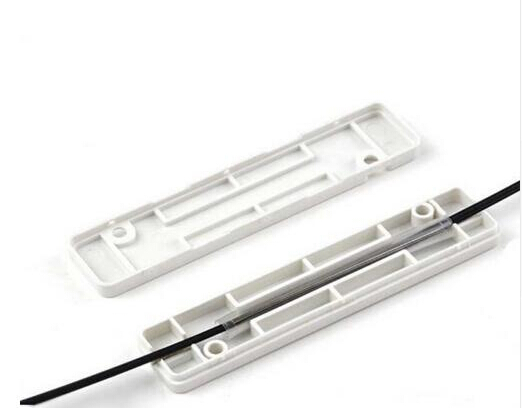

Shrinkable sleeve is applied to the optical fiber closure to fix and protect

the optical fiber when splicing.

Mass means there are several cores for the fiber. So the mass sleeve includes

4cores,6cores,8cores,12cores(for types).

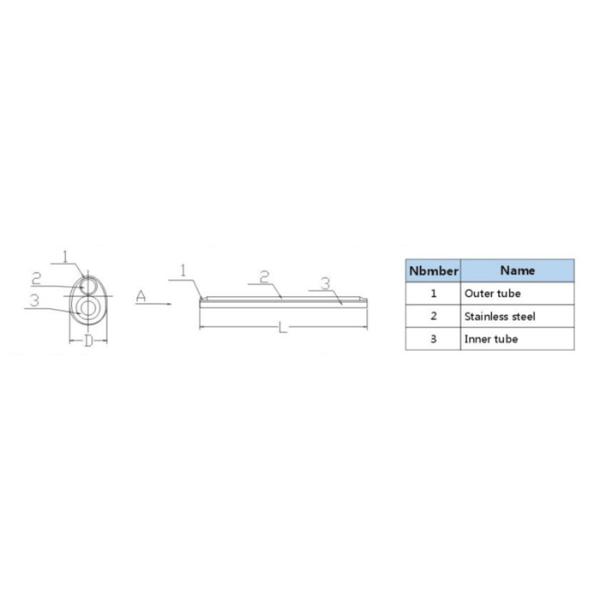

Specification

Model

Sleeve Diameter

After Shrink(mm)

Out Tube Length

(mm)

Steel Diameter

(mm)

Steel Length

(mm)

Package

(pcs)
HCW-40 3.0 40 1.5 36 100
HCW-45 3.0 45 1.5 40 100
HCW-60 3.0 60 1.5 56 10

Features

1.Good moisture and environmental performance

2.Transparent casing can be connected better before contraction

3.Easily operating to the optical fiber

4.Waterproof, RoHS compliant

Applications

1. Use the enhanced wire, hot-melt tube and cross-linked polylefin composition

2.Reconstruct the fiber coating

3.Junction to provide a good mechanical strength

4.Ensure good optical transmission properties

Shrinking Temperature (°C)
110 ~ 130
Radial Shrinking Rate (%)
>50
Axial Shrinking Rate (%)
<10
Low Temperature Property
No crackle at -55°C lasting 4 hours
Normal Operation Temperature (°C)
-55°C ~ + 135°C
Normal Operature Relative Humidity
≤95%
Spark- over Strength (kV/mm)
≥20
Tensile Strength (Mpa)
20
Loss at -40°C
0.03dB
Loss at +60°C RH95%
0.02dB

PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve

PE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice SleevePE 1mm 1.2mm Fiber Optic Components Cable Protection Fusion Splice Sleeve
