Uneven Division Of Television CATV Long HDMI Cable , 4 Way RF Tap HDMI Optical Cable
Uneven Division Of Television CATV Long HDMI Cable , 4 Way RF Tap HDMI Optical Cable
Uneven Division Of Television CATV Long HDMI Cable , 4 Way RF Tap HDMI Optical Cable
Uneven Division Of Television CATV Long HDMI Cable , 4 Way RF Tap HDMI Optical Cable
Uneven Division Of Television CATV Long HDMI Cable , 4 Way RF Tap HDMI Optical Cable
Uneven Division Of Television CATV Long HDMI Cable , 4 Way RF Tap HDMI Optical Cable
Specifications
Brand Name :
HICORPWELL
Model Number :
5-1000MHZ CATV Cable TV 4 Way RF Tap
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
10M
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000KM Per Week
Packaging Details :
Dimension (mm) 76x47x15.5, Weight : 41G
Compatibility :
5-1000MHZ CATV Cable TV 4 Way RF Tap
Frequency range :
5-1000MHz
Housing Material :
Zinc die-casting waterproof
Dimension (mm) :
76x47x15.5
Weight :
41G
Splitting Loss (dB) :
7.0
Description

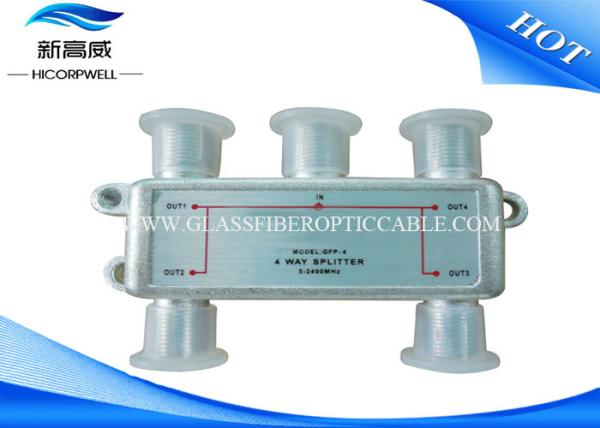

CATV Cable TV 4 Way RF Tap For Uneven Division Of Television

Descriptions:


AC/RF bypass switch to provide uninterrupted downstream-subscriber service


Economical two-step upgrade to power passing matches incremental expenses with new revenues


AC blocking capacitors on each port to minimize RF signal distortions


Housing backwards compatibility supports economical faceplate upgrades

Surge-resistant circuitry srctm for maximum reliability


1, 2, 4, 8-way capability for maximum design flexibility

Mechanical:


Tin plated brass f-ports to ensure a corrosion-resistant drop interface.

Al360 housing with powder coating for superior environmental protection.


Sealed and swaged extended f-ports for maximum resistance to moisture ingress.


Operating temperature from -40degree to +60 degree.


EMI shielding minimum -110 dB.


Pressure test at 10 psi for 60 seconds under water.

Others:


CATV outdoor taps (power passing)


CATV outdoor taps (non power passing)


CATV outdoor splitters


CATV indoor taps and splitters


CATV power inserters


CATV power supply

Specifications

ITEM Model: R-xW
R-2W R-3W R-4W
Splitting Loss
(dB)		 5-50MHz 3.5 5.8 7.0
50-550MHz 3.6 6.0 7.0
550-750MHz 3.8 6.5 7.5
750-1000MHz 3.8 6.5 7.5
Isolation
(dB)		 5-50MHz 30 28 28
50-550MHz 30 28 28
550-750MHz 30 28 28
750-1000MHz 30 28 28
Return Loss (dB) 5-50MHz 22 20 20
50-550MHz 20 20 20
550-750MHz 20 20 20
750-1000MHz 18 18 18
Shield Factor (dB) ≥110
Dimension (mm) 54x47x15.5 54x47x15.5 76x47x15.5
Weight (g) 28.5 31.5 41
