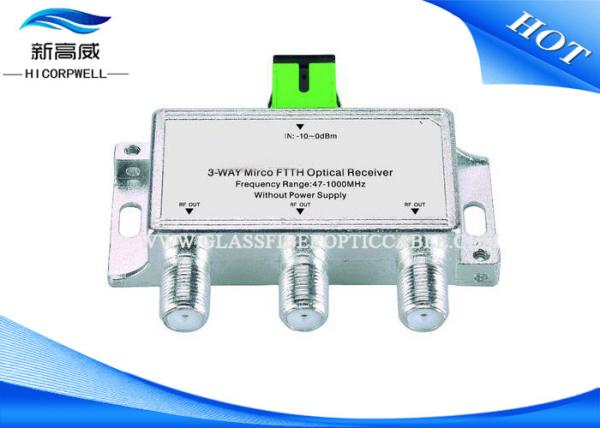

Mini 3 Way HDMI AOC Cable CATV Passive Optical Node / FTTH Optical Recever
Mini 3 Way HDMI AOC Cable CATV Passive Optical Node / FTTH Optical Recever
Specifications
Brand Name :
HICORPWELL
Model Number :
Mini 3 Way CATV Passive Optical Node FTTH Optical Recever
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
100 pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000pcs Per Week
Packaging Details :
Dimension (mm) 54x47x15.5, Weight : 28.5G
Compatibility :
Mini 3 Way CATV Passive Optical Node
Frequency range :
5~2400Mhz
Housing Material :
Zinc die-casting waterproof
Dimension (mm) :
54x47x15.5
Weight :
28.5G
Splitting Loss (dB) :
3.5
Optical connector :
SC/APC
RF connector :
F-female
Description

Mini 3 Way CATV Passive Optical Node /FTTH Optical Recever HDMI AOC Cable

Features:


1. Low insertion loss, high return loss and isolation.


2. Die cast aluminum housing


3. RF frequency range 5 to 1000 MHz


4. CE, RoHS, ISO9001

Descriptions:

1. easy to install,can well meet the requirements of satellite signals.

2. using zince alloy shell intergration,surface nickel processing cover the use of punch pinched

waterproof paint sealed.

3. waterproof good performance and high degree of shielding to prevent signal leakage

and external signak interference.

We are in CATV line in China,we offer catv splitter,catv amplifier,catv optical receiver,

catv optical transmitter, catv optical switch,EDFA , catv modulator, digital equipments and so on.

Our catv power splitter feature:

2. TECHNICAL PARAMETER

Freq rangeMHz Splitting lossdB Isolation lossdB Return lossdB
2 way splitter
5-10 ≤3.5 ≥25 ≥16
10-50 ≤3.6 ≥25 ≥16
50-750 ≤3.8 ≥25 ≥16
750-1000 ≤4.0 ≥25 ≥16
3 way splitter
5-10 ≤5.7 ≥22 ≥16
10-50 ≤5.5 ≥25 ≥16
50-750 ≤6.2 ≥25 ≥16
750-1000 ≤6.5 ≥22 ≥16
4 way splitter
5-10 ≤6.8 ≥25 ≥16
10-50 ≤7.0 ≥25 ≥16
50-750 ≤7.6 ≥25 ≥16
750-1000 ≤8.0 ≥25 ≥16
6 way splitter
5-10 ≤8.9 ≥25 ≥16
10-50 ≤8.8 ≥26 ≥16
50-750 ≤9.9 ≥26 ≥16
750-1000 ≤10.5 ≥25 ≥16
8 way splitter
5-10 ≤10 ≥25 ≥16
10-50 ≤10.1 ≥25 ≥16
50-750 ≤10.9 ≥25 ≥16
750-1000 ≤11.5 ≥25 ≥16
10 way splitter
5-10 ≤13.5 ≥22 ≥16
10-50 ≤13.8 ≥25 ≥16
50-750 ≤14.3 ≥25 ≥16
750-1000 ≤14.7 ≥22 ≥16
12 way splitter
5-10 ≤13.5 ≥22 ≥16
10-50 ≤13.8 ≥25 ≥16
50-750 ≤14.3 ≥25 ≥16
750-1000 ≤14.7 ≥22 ≥16
14 way splitter
5-10 ≤13.3 ≥25 ≥16
10-50 ≤13.6 ≥25 ≥16
50-750 ≤14.3 ≥25 ≥16
750-1000 ≤14.5 ≥25 ≥16
16 way splitter
5-10 ≤13.3 ≥25 ≥16
10-50 ≤13.6 ≥25 ≥16
50-750 ≤14.3 ≥25 ≥16
750-1000 ≤14.5 ≥25 ≥16
