31.5G HDMI AOC Cable Three Way Splitting Loss 5.8 dB RoHS Approved Flexible
31.5G HDMI AOC Cable Three Way Splitting Loss 5.8 dB RoHS Approved Flexible
Specifications
Brand Name :
HICORPWELL
Model Number :
CATV Cable TV 3 Way RF Tap
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
10M
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000KM Per Week
Packaging Details :
Dimension (mm) 54x47x15.5, Weight : 31.5G
Compatibility :
CATV Cable TV 3 Way RF Tap
Frequency range :
5-1000MHz
Housing Material :
Zinc die-casting waterproof
Dimension (mm) :
54x47x15.5
Weight :
31.5G
Splitting Loss (dB) :
5.8
Description

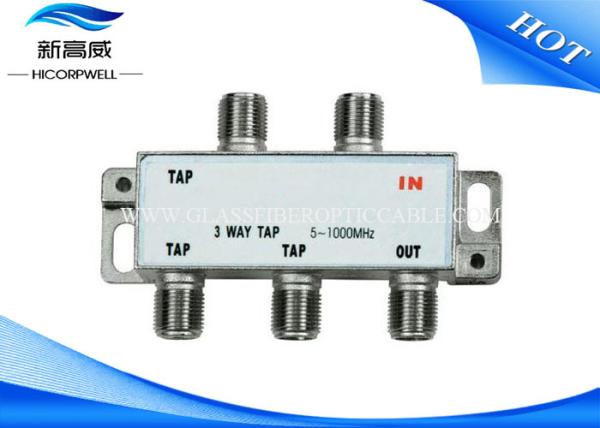

CATV Cable TV 3 Way RF Tap Catv splitter tap HDMI AOC Cable

Features:


1. Low insertion loss, high return loss and isolation.
2. Die cast aluminum housing
3. RF frequency range 5 to 1000 MHz
4. CE, RoHS, ISO9001

Descriptions:


AC/RF bypass switch to provide uninterrupted downstream-subscriber service
Economical two-step upgrade to power passing matches incremental expenses with new revenues
AC blocking capacitors on each port to minimize RF signal distortions
Surge-resistant circuitry srctm for maximum reliability
1, 2, 4, 8-way capability for maximum design flexibility
Housing backwards compatibility supports economical faceplate upgrades
System open circuit time 0 ms

Mechanical:


Al360 housing with powder coating for superior environmental protection.
Sealed and swaged extended f-ports for maximum resistance to moisture ingress.
Tin plated brass f-ports to ensure a corrosion-resistant drop interface.
Operating temperature from -40degree to +60 degree.
EMI shielding minimum -110 dB.
Pressure test at 10 psi for 60 seconds under water.

Others:


CATV outdoor taps (power passing)
CATV outdoor taps (non power passing)
CATV outdoor splitters
CATV indoor taps and splitters
CATV power inserters
CATV power supply

Specifications

ITEM Model: R-xW
R-2W R-3W R-4W
Splitting Loss
(dB)		 5-50MHz 3.5 5.8 7.0
50-550MHz 3.6 6.0 7.0
550-750MHz 3.8 6.5 7.5
750-1000MHz 3.8 6.5 7.5
Isolation
(dB)		 5-50MHz 30 28 28
50-550MHz 30 28 28
550-750MHz 30 28 28
750-1000MHz 30 28 28
Return Loss (dB) 5-50MHz 22 20 20
50-550MHz 20 20 20
550-750MHz 20 20 20
750-1000MHz 18 18 18
Shield Factor (dB) ≥110
Dimension (mm) 54x47x15.5 54x47x15.5 76x47x15.5
Weight (g) 28.5 31.5 41
