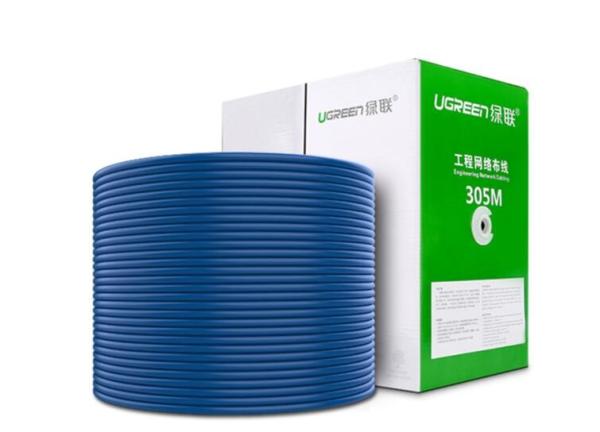

305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
Specifications
Brand Name :
HICORPWELL
Model Number :
Cat6a Lan Cable
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
30 roll
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500 Rolls Per Week
Packaging Details :
305 meters each roll
Cable Type :
Cat 6 A Network Ethernet Lan Cable
Paintcoat Color :
Orange
MOQ :
30 roll
Roll Length :
305 m
Material :
CCA,BC Copper
Test :
Pass Fluke Test
Number of Conductors :
8
Jacket material :
PVC, ROHS PVC, LSZH PVC
Description

305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket

Full CAT6 specification with moulded snagless boots and unique connector latch protection Snagless

strain relief prevents damage to the RJ-45 latch during installation and removal Standards:

ISO/IEC 11801 EN50173 EIA/EIA 568B.2 Gigabit Ethernet ready 100% performance tested Stranded core

cables allowing repeated flexing without damage prolonging the life of the cable Ideal for connecting

computers hubs switches print servers patch panels etc.

Useful for colour coding your departments workgroups etc.

Specification

Item UTP Cat6 Cable
Conductor Material Oxygen-free Copper
Conductor AWG23
Type UTP
Plug RJ45
Jacket PVC
Insulation HDPE
Connector Unshield
Plug gold plating 3-50u
Color Black, White, Grey, Blue, Green, Red, Orange, Yellow, Purple, Pink,etc.
Length 100m/305m/500m
Certification SGS,RoHS,ISO9001,fluke test
Pairs Twisted Pairs

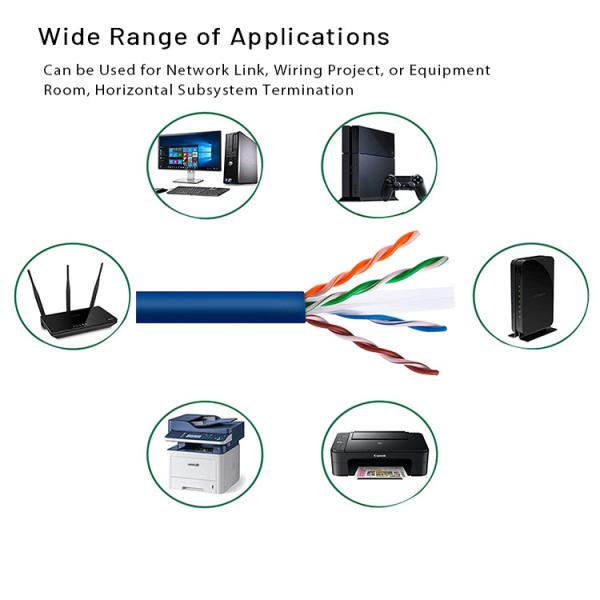

Application

· ISDN,10BASE-T Ethernet(IEEE802.3)

· 100BASE -T Ethernet(IEEE802.3)

· 155MbpsATM

· 100VgAnyLAN(IEEE802.12)

· TP-PMD(ANSI X3T9.5)

· 16Mbps Token Ring(IEEE802.5)

· 1000BASE- T Ethernet(IEEE802.3ab)

Frequency Return Loss Min Attenuation Max

NEXT

Min

PSNEXT

Min

ELFEXT

Min

PSELFEXT

Min
(MHz) (dB) (dB/100m) (dB/100m) (dB/100m) (dB/100m) (dB/100m)
1 20 1.84 74.3 72.3 68 65
4 23.01 3.69 65.27 63.27 55.96 52.96
10 25 5.89 59.3 57.3 48 45
16 25 7.51 56.24 54.24 43.92 40.92
20 25 8.43 54.78 52.78 41.98 39.98
31.25 23.64 10.64 51.88 49.88 38.1 35.1
62.5 21.54 15.36 47.36 45.36 32.08 29.08
100 20.11 19.78 44.3 42.3 28 25
200 18 28.97 39.78 37.78 21.98 18.98
250 17.32 32.84 38.33 36.33 20.04

17.04
Cat5e UTP FTP SFTP Cable
Conductor material CCA,BC Copper
Conductor diameter Solid one: 0.4mm, 0.45mm, 0.5mm
Stranded one: 24 AWG, 26 AWG, 28 AWG
Num of Conductor 2P, 4P, 8P, 10P, 25P, 50P, 100P, 200P ,,,,,
Insulation material PE , HDPE
Insulation diameter 0.9±0.02mm
Jacket material PVC, ROHS PVC, LSZH PVC
Cat6 /cat6a/cat7 UTP FTP SFTP Cable
Conductor material CCA,BC Copper
Conductor diameter Solid one: 0.5mm, 0.56mm, 0.57mm
Stranded one: 23AWG, 24 AWG
Num of Conductor

2P, 4P, 8P, 10P, 25P, 50P, 100P, 200P ,,,,,
Insulation material PE , HDPE
Insulation diameter 0.9±0.02mm
Jacket material PVC, ROHS PVC, LSZH PVC

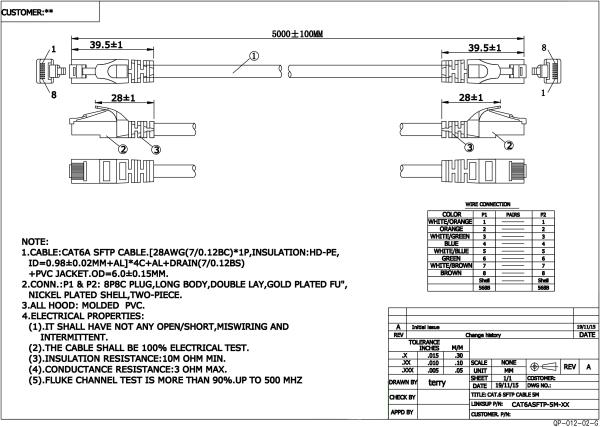

CAT6A SFTP CABLE 5M-Model.pdf

305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket305 Meters Ethernet LAN Cable CAT6 UTP / STP 305 M Roll Length LSZH PVC Jacket
