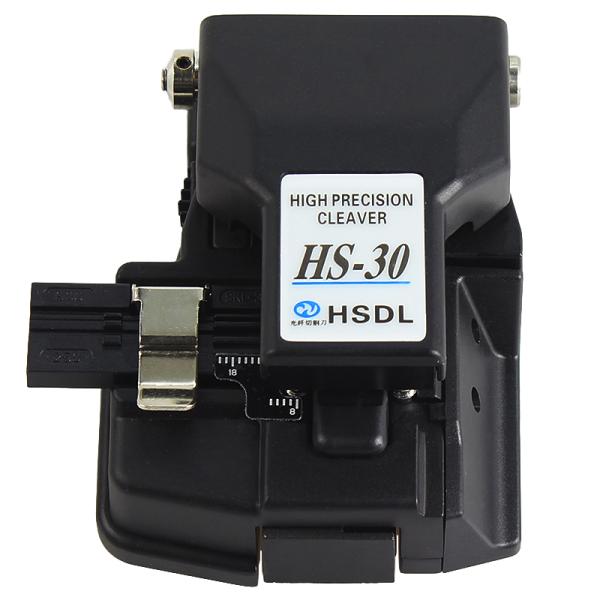

HS - 30 Fiber Optical Cleaver For 250 To 900 Micron 0.5 Degrees Adjustable Blade
HS - 30 Fiber Optical Cleaver For 250 To 900 Micron 0.5 Degrees Adjustable Blade
Specifications
Brand Name :
HICORPWELL
Model Number :
Fiber Optical Cleaver
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000pcs Per Week
Packaging Details :
Dimensions (W x D x H): 77mm x 84mm x 42mm (2.7" x 3.2" x 1.6")
Packages Size :
77W x 84D x 42H (mm)
Cladding Diameter :
0.125mm
Weight :
430g Without Scrap Collector;
Typical Cleave Anglector :
0.5 Degrees
Typical Blade Life :
48,000 Fiber Cleaves
Coating Diameter :
250 to 900 Micron Fiber
Description

HS-30 Fiber Optical Cleaver Fiber Tester Tools For 250 to 900 Micron Fiber

Used for Single Fiber Cleaving


Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency


Prevents Double Scoring of the Fibers


Has Superior Blade Height and Rotational Adjustment


Available With Automatic Fiber Scrap Collection


Can Be Operated With Minimal Steps

It is a simple operation for the user to remove or install the single fiber adapter and alternate

between mass and single fiber cleaving.


Built on a robust high-quality platform, this is an ideal for use with fusion splicing or

other precision applications, setting a new standard for flexibility and performance.

An optional fiber scrap collector can be installed to help maintain loose scraps, resulting

from the cleaving process.

The scrap collector works to automatically grab and store the scrap fibers as the cleaver’s

lid is raised, following a completed cleave.

Features:

• Model No: HS-30


• Applications: Single fibers: 250um to 900um coating, 125um cladding


• Fiber Handling System: AD-30A Adapter Plate


• Cleave Length: (900um fiber) 10mm to 20mm, (250um fiber) 6mm to 20mm


• Dimensions (W x D x H): 77mm x 84mm x 42mm (2.7" x 3.2" x 1.6")


• Weight: 210g (0.4 lbs)


• Blade lifetime: 48,000 fiber cleaves (4000 12-fiber cleaves)


• Cleave angle capability: typically < 0.5°

Package Includes:

1 x Fiber Cleaver HS-30


3 x Allen Wrench


1 x Black Bag

Dimensions 77W x 84D x 42H (mm)
Weight 210g
Coating Diameter 0.25mm - 0.9mm (Single)
Cladding Diameter 0.125mm
Cleave Length

9mm - 16mm (Single Fiber - 0.25mm coating)

10mm - 16mm (Single Fiber - 0.9mm coating)
Typical Cleave Angle 0.5 Degrees
Typical Blade Life 48,000 Fiber Cleaves
Number of Steps for Cleave 2
Blade Adjustments Rotational & Height
Automatic Scrap Collection Optional
