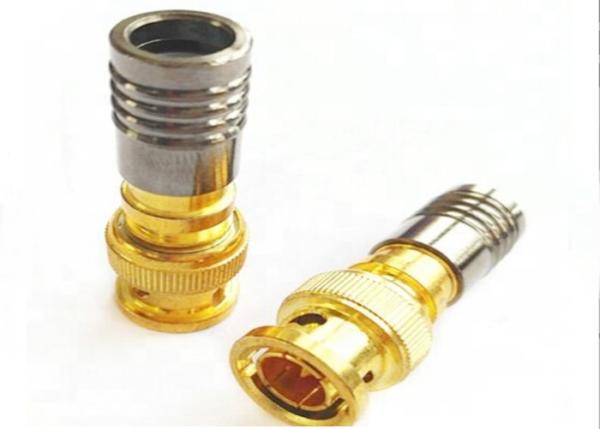

Waterproof BNC Male Compression Connector For RG59 Cable Gold / CCTV Connector
Waterproof BNC Male Compression Connector For RG59 Cable Gold / CCTV Connector
Waterproof BNC Male Compression Connector For RG59 Cable Gold / CCTV Connector
Waterproof BNC Male Compression Connector For RG59 Cable Gold / CCTV Connector
Waterproof BNC Male Compression Connector For RG59 Cable Gold / CCTV Connector
Waterproof BNC Male Compression Connector For RG59 Cable Gold / CCTV Connector
Specifications
Brand Name :
HICORPWELL
Model Number :
Waterproof BNC Male Compression Connector
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
500 pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500000 Piece/Pieces per Month
Packaging Details :
PE bag+carton Box
Type :
BNC Cable
Name :
BNC to BNC SDI Cable
Side B :
Right angle BNC male
Working :
Super long hours for 7×24 hours without stop.
Cable Length :
Customized
Side A :
Right angle BNC male
Description

Waterproof BNC Male Compression Connector For RG59 Cable Gold / CCTV Connector

Specifications

BNC to BNC SDI Cable


1.Best price


2.OEM are welcomed


Specifications:

Competitive price


High quality approved,strict QC controlled.

Specialized and personalized service

Short lead time.

Great variety of products,attractive design

OEM and ODM are welcomed

In order to provide an one-stop service, we proudly offer cable assemblies for our customers.


we have own fully trained technicians to make it happen.


Each cable is fully tested for pin-pin continuity, as well as having a high voltage test to ensure

that there are no potential breakdown problems.

Every cable is fully inspected to ensure that it meets the requirements specified.

We do it according to customers' requirements.If you would like to discuss your requirements

or receive a quotation, please feel free to contact us.

We can make all types of cables as per customers' request.

MOCO P / N
cable assembly
Temp (min)
-40 deg
Temp (max)
200 deg C
Humidity (max)
<=95% [at 60 deg C / 140 F]
Vibration
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt Spray Corrosion
>144 hr
Shielding (min)
75 dB (10 MHz)

Characteristic impedance 50Ω 75Ω Operating Temperature -45~+65°C
Frequency Range DC~4GHz(50Ω) Dielectric Resistance ≥5Ω
DC~2GHz(75Ω)
Dielectric Withstanding voltage ≥1500V RMS Disengage force ≥0.6N
Contact resistance Center conductor ≤1.5mΩ
Outer conductor ≤1mΩ
Durability Mating cycles ≥500
Weatherproof Rate IP67
Material And Plating Parts Name Material Plating
Body Brass nickel plated
Male center contacts Brass gold plated
Insulators PTFE —
Gaskets Beryllium copper gold or nickel plated
Crimp ferrules Copper alloy gold or nickel plated
Suitable Cable Family RG59 Cable

Waterproof BNC Male Compression Connector For RG59 Cable Gold / CCTV Connector
