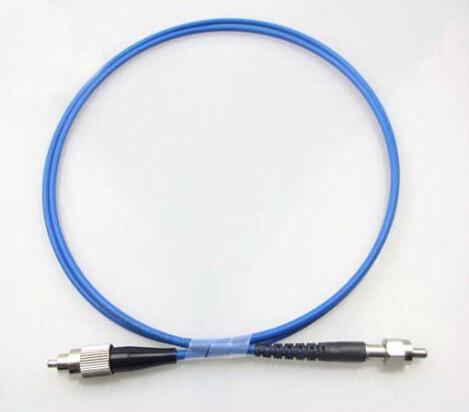

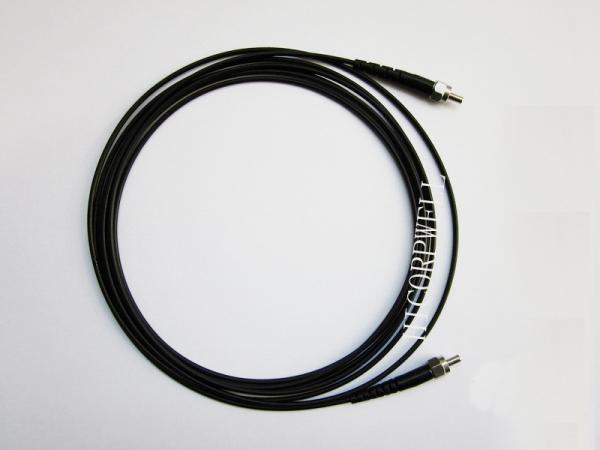

SMA 905 Fiber Optik Patch Cord 105/125/245 Bore Size 125~1580um Stainless Steel Ferrules
SMA 905 Fiber Optik Patch Cord 105/125/245 Bore Size 125~1580um Stainless Steel Ferrules
SMA 905 Fiber Optik Patch Cord 105/125/245 Bore Size 125~1580um Stainless Steel Ferrules
SMA 905 Fiber Optik Patch Cord 105/125/245 Bore Size 125~1580um Stainless Steel Ferrules
SMA 905 Fiber Optik Patch Cord 105/125/245 Bore Size 125~1580um Stainless Steel Ferrules
SMA 905 Fiber Optik Patch Cord 105/125/245 Bore Size 125~1580um Stainless Steel Ferrules
Specifications
Brand Name :
HICORPWELL
Model Number :
SMA Fiber Optic Patch Cables
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
10sets
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000pcs Per Week
Packaging Details :
Polybag and Carton
Cable Type :
SMA Fiber Optic Patch Cables
Connectors :
SMA Connectors
Paintcoat Color :
Black
Type :
SMA to SMA
Application :
Outdoor Communication
Cable Dia :
2.2mm
Bend Radius :
30mm
Core Material :
PMMA
Description

SMA 905 Fiber Optik Patch Cord 105/125/245 Bore Size 125~1580um Stainless Steel Ferrules

SMA 905 Fiber optic Patch cord 105/125/245 , Bore size 125~1580um,Stainless Steel

Ferrules,High-Temperature Connectors for Environments up to 250 °C

Suitable for cable OD:1.8mm,2.2mm, 2.5mm, 3.0mm.. Armored or unarmored

Standard SMA 905 connector for use with industry-standard 1.0mm core plastic optical fiber

with 2.2mm outside-diameter jacket.Connector ferrule body features retention ridges for use

with push-on strain relief.Ferrule and nut are passivated per ASTM A967 for extra corrosion resistance.

The products includes connector,black strain relief and silicone dust cap.

SMA905 connectors, which are HIGH QUALITY with both multimode fibers and singlemode,

have a stainless steel ferrule design that is ideally suited for large core fibers range

from Ø125 µm to Ø1580 µm .

SMA 905 Connectors are complete compatiable with any standard SMA port optical transmitter and receiver, and comply with RoHS certificate.

Access Network

Telecom/CATV Systems

FTTx

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.3dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB(PC/UPC)
≥55dB(APC)		 ≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

Subject
Parameters
Fiber O.D.
1mm
Outer O.D.
Φ1.0/2.2mm
Fiber
PMMA
Wavelength
650nm
Attenuation
<0.19
Bending Radius
5 times
Connector IL
<0.5db
Numerical Aperture
0.47
Tensile Strength
27kg
Operation Lowest Temp.
-40℃
Operation Highest Temp.
70℃
Transmission Delay
5ns/m

Item no. Connector 1 Connector 2 Core diameter Core style Cablecolor Length
ST-ST ST ST POF 980/1000 simplex black or customized 1000 mm
SC-SC SC SC POF 980/1000 simplex black or customized 1000 mm
FC-FC FC FC POF 980/1000 simplex black or customized 1000 mm
LC-LC LC LC POF 980/1000 simplex black or customized 1000 mm
SMA-SMA SMA SMA POF 980/1000 simplex black or customized 1000 mm
SMI-SMI SMI SMI POF 980/1000 duplex black or customized 1000 mm
TOCP 155/F05 TOCP 155/F05 TOCP 155/F05 POF 980/1000 simplex/duplex black or customized 1000 mm
TOCP 255/F07 TOCP 255/F07 TOCP 255/F07 POF 980/1000 duplex black or customized 1000 mm
