Military Armored Tactical Fiber Optic FO Cable With Mobile Reel Outdoor 2 4 6 8 12 Cores
Military Armored Tactical Fiber Optic FO Cable With Mobile Reel Outdoor 2 4 6 8 12 Cores
Specifications
Brand Name :
HICORPWELL
Model Number :
2 4 6 8 12 16 24 Core Outdoor Singlemode Armored Fiber Optic Jumper Patch Cable
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
1 KM
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000 Kilometer/Kilometers per Week
Packaging Details :
5000 Kilometer/Kilometers per Week Armored Tactical FO Military SM G657A2 Cable
Cable Type :
2 4 6 8 12 16 24 Core Outdoor Singlemode Armored Fiber Optic Jumper Patch Cable
Connectors :
Customized,LC,FC,SC Connectors
Paintcoat Color :
Black or Orange or ,Yellow ,others
Cable Purpose :
Telecome application
Length :
500 m to 1000m
Application :
Military Tanks and Outside Broadcast vehicles
Description

Military Armored Tactical Fiber Optic FO cable with Mobile Reel Outdoor 2 4 6 8 12 Cores

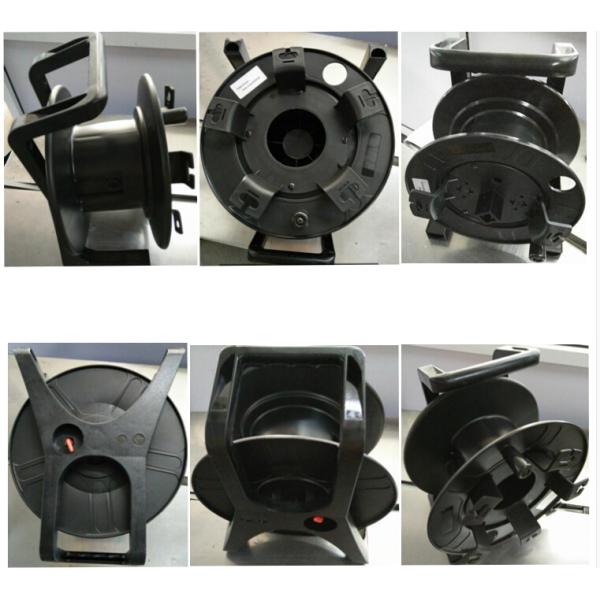

A cable reel is a round, drum-shaped object such as a spool used to carry various types of cables. Cable reel which can also be termed as drums have been used for many years to transport electric cables, fiber optic cables and wire products.
Portable field deployable tactical fber optic cable reel has been optimised for using in harsh environments where mobility and rapid deployment of the cable are very essential.
This assembly is specifically designed for field deployable applications. Particularly, it can broadcast the communication for film crews to connect HDTV camera equipments with central broadcasting trucks about events like music concerts and sporting events.
This deployable assembly includes a marcaddy drum, breakout modules with ruggedised tails at each end, choice of connectors, tactical cable and a high durability protective conduit IP rated pulling sock.

Note: 500 meter is the rated cable capacity of fiber optic patch cable reel. we can also provide 200, 300 and 1000 meter optional.
The Application of Fiber Optic Patch Cable Reel
we can supply several deployable fiber cable reels, which can be used in the following situations - field communication and CATV, quick deployment, quick distributing and retrieving of military field communication system, cable deployment of radar, aviation and naval vessel, complicated circumstances of oil field, mining and harbors, TV re-broadcasting and communication, emergency repairing and supporting LAN cabling.

FO Cable Specifications Performances

Cable
Count		 ITEM CABLE
OD.mm(a)		 S.S.T.
OD.mm(b)		 T.B.O.F.
OD.mm(C)
4F 4.5MM Φ4.5±0.2 Φ2.4±0.02 Φ0.5
6F 4.5MM Φ4.5±0.2 Φ2.6±0.03 Φ0.5
8F 5.0MM Φ5.0±0.2 Φ2.8±0.05 Φ0.5
10F 5.0MM Φ5.0±0.25 Φ3.0±0.05 Φ0.5
12F 5.5MM Φ5.5±0.25 Φ3.2±0.05 Φ0.5
24F 7.0MM Φ7.0±0.3 Φ4.3±0.05 Φ0.5

Cable
Count		 ITEM CABLE OD.
mm(a)		 CABLE
WEIGHT
(kg)		 MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn. Sta.
4F 4.5MM Φ4.5±0.2 26.5 800 400 70 35 3000
6F 4.5MM Φ4.5±0.2 38.5 1000 500 100 50 3000
8F 5.0MM Φ5.0±0.2 33.0 1000 501 100 50 3000
10F 5.0MM Φ5.0±0.25 36.0 1000 502 120 60 3000
12F 5.5MM Φ5.5±0.25 39.0 1200 600 150 75 3000
24F 7.0MM Φ7.0±0.3 54.0 1500 750 170 85 3000
