Specifications
Brand Name :
HICORPWELL
Model Number :
Loss Zirconia Ceramic Ferrules SC LC 1.249mm SM
Certification :
ISO9001-2015
Place of Origin :
Guangdong China
MOQ :
100pcs
Price :
0.15-0.25
Payment Terms :
L/C, T/T
Supply Ability :
4000000 Piece/Pieces per Month
Delivery Time :
3-7 working days
Packaging Details :
Vacuum packing or following your order's demand
Name :
Loss Zirconia Ceramic Ferrules
Conerntricity :
SM≤1.0 MM≤4.0
Length :
SC: SM10.5±0.05 MM10.5±0.1 LC:
Ferrule :
SC/LC/APC/CUSTOMIZED
OD Size :
SC:2.499±0.0005 LC:1.249±0.000
Material :
zirconia dioxide
Color :
White
Sample :
Free
Nearest port :
Shenzhen/HK
MOQ :
Min order and sample order is acceptable.
Description

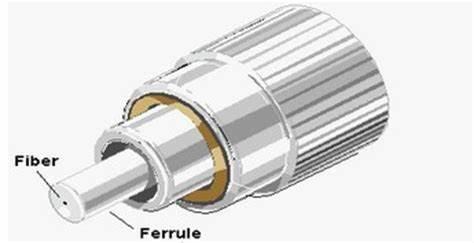

SC/LC/APC/Customized Loss Zirconia Ceramic Ferrules Fiber Optic System Components

Surface treatment

Heat treatment, polishing, PVD/CVD coating, galvanized, electroplating, spraying, and painting and so on

Testing tool

CMM, Measuring Projector, Mitutoyo Digital Vernier Caliper, Mitutoyo Digital Height Gauge, Feeler Gauge

& Plug Gauge & Thread Gauge, Hardness Inspection Instrument, Salt spray testing machine, Fluorescent

Magnetic Particle Flaw Detector, Roughness Tester, etc

Processing equipments

CNC machining center, CNC lathe, grinding machine, automatic lathe machine, conventional lathe

machine, milling machine, drilling machine, EDM, wire-cutting machine, CNC bending machine,

Punching press, etc

Samples

Samples can be provided according to customers’ requirements or after get customers’ drawings.

Sample cost should be afforded by customer and return back when place bulk order.

• High precision and Reliability .


• Excellent Strength, Endurability and Anti-aging performance .


• Various types of ferrules and End-faces .

Parking :Carton, Wooden box, or as per the customer’s requirements

Delivery time

In 15-25 days after get the deposit (including tooling making time).

O.D.Size

SC:2.499±0.0005 LC:1.249±0.0005

I.D.Size

Customized

Concentricity

SM≤1.0um MM≤4.0um

Length

SM10.5±0.05 MM10.5±0.1 LC:6.4+0.1

Ferrule Type

SC/LC/APC/Customized

Material

Zirconia Dioxide

Endface

Conical type/ Step type/Plane type

Color

White

Sample

Free

Type

SC

LC

MU

APC

UNIT

O.D.Size(mm)

SM: 2.4999±0.0005

SM: 2.4999±0.0005

1.249±0.0005

2.499±0.0005

φd±0.0005

MM: 2.4999±0.001

MM: 1.249±0.001

I.D.Size(mm)

SM: d±0.001

SM: d±0.001

d±0.001

d±0.001

d±0.001

MM: d±0.002

MM: 0.126±0.004

Concentricity(um)

SM: ≤1.0

SM: ≤1.0

≤1.0

≤1.0

Customized

MM: ≤4.0

MM: ≤4.0

Length(mm)

SM: 10.5±0.05

6.4+0.1

6.5±0.05

10.5±0.05

L±0.05

MM: 10.5±0.05

SC/LC/APC/Customized Loss Zirconia Ceramic Ferrules Fiber Optic System Components

SC/LC/APC/Customized Loss Zirconia Ceramic Ferrules Fiber Optic System Components

SC/LC/APC/Customized Loss Zirconia Ceramic Ferrules Fiber Optic System ComponentsSC/LC/APC/Customized Loss Zirconia Ceramic Ferrules Fiber Optic System Components

SC/LC/APC/Customized Loss Zirconia Ceramic Ferrules Fiber Optic System Components
