400-2500nm Near-Visible-Near Infrared H1000/1100/ 1600-22-AC H500/550/ 900-22-AC Silica Fibers
Fiberglass, or “glass fiber,” itself has a familiar base structure and a wide variety of uses.
Fiberglass really is made of glass similar to that in windows or kitchen drinking glasses. To manufacture fiberglass, glass is heated until molten,
then forced through superfine holes. This creates glass filaments that are extremely thin—so thin, in fact, that they're best measured in microns.

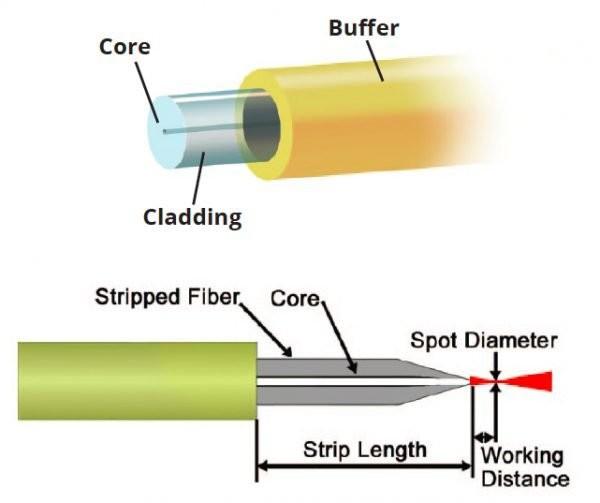

Main Parameters :
Wavelength / spectralrange UV:190 – 1200nm
WF:400 – 2500nm
Numerical aperture(NA) 0,22 ± 0,02 or customised
Operating temperature: -40～+85℃
Standard core diameter : 105um/200um/300um/400um/500um/600um/800um/1000um
Cladding Diameter: 25um/125um/220um/330um/440um/ 550um/660um/880um/1100um
Coating Diameter: 245um/320um/520um/700um/900um /960um/1100um
Core/Cladding Offset : < 3 μm
Specification :
| Item | Wavelength
Range | Hydroxyl
Content | Core
Diameter | Cladding
Diameter | Coating
Diameter | Core /
Cladding | Coating | Proof Test | Stripping
Tool |
| HCW050UGA | 250 - 1200 nm | High-OH | 50 μm ± 2% | 125 ± 1 μm | 250 μm ± 4% | Pure Silica /
Fluorine-Doped Silica | Acrylate | ≥100 kpsi | T08S13 |
| HCW050LGA | 400 - 2400 nm | Low-OH |
| HCW105UCA | 250 - 1200 nm | High-OH | 105 μm ± 2% | 125 ± 1 μm | 250 μm ± 4% | T08S13 |
| HCW105LCA | 400 - 2400 nm | Low-OH |
| HCW200UEA | 250 - 1200 nm | High-OH | 200 μm ± 2% | 220 ± 2 μm | 320 μm ± 5% | T10S13 |
| HCW200LEA | 400 - 2400 nm | Low-OH |
| Items | Parameters |
| Fiber Type | H105/125/ 245-22-AC | H-200-220-320- 22-AC | H300/330/520-22-AC | H400/440/ 700-22-AC | H500/550/ 900-22-AC | H1000/1100/ 1600-22-AC |
| Core-Cladding Materials | Silicon fiber Core -----Hard Resin Coated Material |
| Range | |
| Core Material | Low Hydroxyl Quartz Glass |
| Cladding Material | |
| Jacket material | AC (UV curable acrylic resins) |
| Numerical Aperture(NA) | |
| Fiber Cores(±2%) | 105μm | 200μm | 300μm | 400μm | 500μm | 1000μm |
| Fiber Cladding(±2%) | 125μm | 220μm | 330μm | 440μm | 550μm | 1100μm |
| Jacket Diameter (±5%) | 245μm | 320μm | 520μm | 700μm | 900μm | 1600μm |
| Temperature | -40-----85℃ |
These flexible filament threads can be used in several applications:
They can be woven into larger swatches of material or left in a somewhat less structured form used for the more familiar puffy texture used for insulation or soundproofing. The final application is dependent on the length of the extruded strands (longer or shorter) and the quality of the fiberglass.
For some applications, it's important that the glass fibers have fewer impurities, however, this involves additional steps in the manufacturing process.

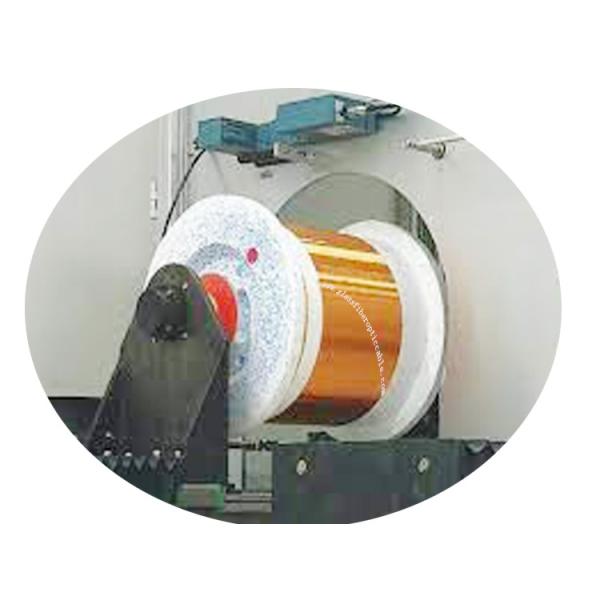

The purity of the glass is maintained by using corrosion-resistant plastic in the gas delivery system (valve blocks, pipes, seals) and by precisely controlling the flow and composition of the mixture.
The process of making the preform blank is highly automated and takes several hours. After the preform blank cools, it is tested for quality control (index of refraction).
Applications:
◆ Fine transmission performance at ultraviolet waveband, antiγ-ray at 800nm;
◆ Applied in ultraviolet spectrum analysis,
laser transmission, health detection,
nuclear energy and semiconductor etc;
◆ NA=0.22±0.02 (0.1to 0.28 on request);
