Plastic-clad Silica Fiber(BGHP)
Features:
◆ High NA;
◆ Fine anti-fatigue property;
◆ Fine anti-irradiation property;
◆ Applied in high power laser transmission, power signal transmission, medical sensors, optical thermometric, laser treat or operation and nuclear radiation detection.
| core[μm](±2%) | 200 | 200 | 300 | 400 | 600 | |
| cladding[μm](±2%) | 230 | 230 | 330 | 430 | 630 | |
| coating material : fluoride doped acrylate , Temperature range[℃]: -65-85 | ||||||
| jacket[μm](±3%) | 500 | 500 | 650 | 730 | 1040 | |
| NA | 0.37±0.02 | 0.40±0.02 | 0.37±0.02 | 0.37±0.02 | 0.37±0.02 | |
| jacket material | ETFE | AC | ETFE | ETFE | ETFE | |
| attenuation[dB/km] | @850nm | ≤8.0 | ≤5.0 | ≤8.0 | ≤8.0 | ≤8.0 |
| Index distribution | SI | GI | SI | SI | SI | |
Refractive Radiation Index:

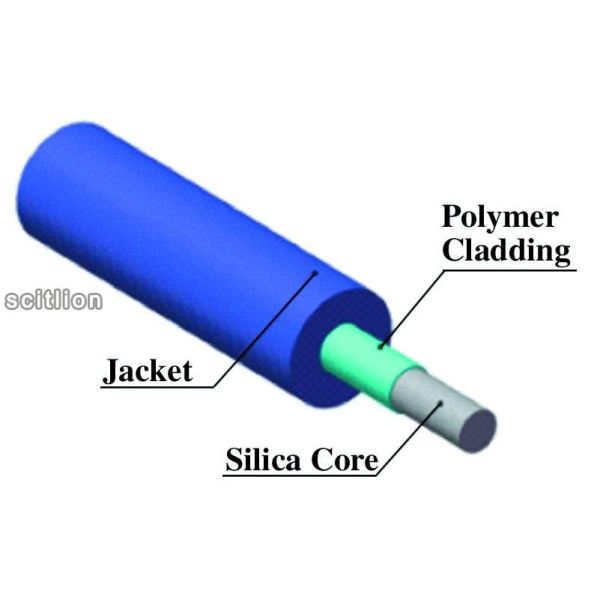

Optical Fiber Structure:
