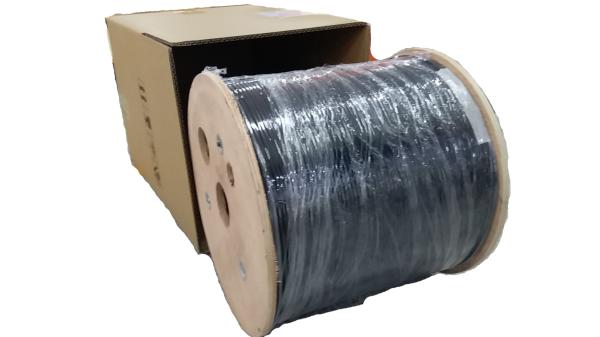

Crush Resistance Optical Fiber Patch Cable 1 Or 2 Cores GJYXCH Black Color
Crush Resistance Optical Fiber Patch Cable 1 Or 2 Cores GJYXCH Black Color
Crush Resistance Optical Fiber Patch Cable 1 Or 2 Cores GJYXCH Black Color
Crush Resistance Optical Fiber Patch Cable 1 Or 2 Cores GJYXCH Black Color
Specifications
Brand Name :
HICORPWELL
Model Number :
1KM G657A1 Fiber Optic Cable
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
500M+500M or 1KM
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000 Kilometer/Kilometers per Week
Packaging Details :
1000 Kilometer/Kilometers per G657A1 Frp 2 Core Cable
Cable Type :
G657A1 indoor FO cable
Connectors :
Customized,LC,FC,SC Connectors
Paintcoat Color :
Black or Orange or ,Yellow ,others
Cable Purpose :
Telecome application
Length :
500 m to 1000m
Application :
FTTH Indoor FO Cable Communication
Description

FTTH G657A1 fiber optical cable 1km price 1 cores 2 cores GJYXCH

Characteristic

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication


transmission property;

Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;

Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.

Simple structure, light weight and high practicability;

Novel flute design, easily strip and splice, simplify the installation and maintenance

Geometrical Characteristics

Fiber Core 1 2 4 6
Cable Dimension(mm) 2.0x5.0 2.0x5.0 2.0x5.5 2.0x6.0
Cable Weight (kg/km) 20 20 21 21

Mechanical Characteristics

Tensile strength(N) Long Term 60
Short Term 120
Bending Radius(CM) Dynamic 35
Static 15

Fiber

Fiber Type(core/cladding dimension) G.657A,G.652D

Transmission Characteristics

SMF
1310/1550(nm)
Attenuation(db/km) ≤0.4/0.30
Minimum Bandwidth(MHz·km) -----------------------

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃

SM Optic Fiber Characteristics

Type G.652D G.657A 50/125μm 62.5/125μm
Attenuation(+20℃) @850nm ≤3.0dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm ≤0.40dB/km ≤0.35dB/km
@1500nm ≤0.30dB/km ≤0.25dB/km
Bandwidth(Class A) @850nm ≥500Mhz.km ≥200Mhz.km
@1300nm ≥1000Mhz.km ≥600Mhz.km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
