10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential
10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential
10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential
10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential
10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential
10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential
Specifications
Brand Name :
HICORPWELL
Model Number :
10KW On Grid Solar System
Certification :
IEC
Place of Origin :
China
MOQ :
500W
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000KW　Per Month
Delivery Time :
25 working days
Packaging Details :
Poly 260W solar panel Size:1640*990*40mm Weight:20Kgs
Name :
10KW　On＆Off Grid Solar System
Rated Power :
10KW
Color :
blue
Solar panel rack :
flat ground and roof for optional
output wave :
pure sine wave solar system
Output frequency :
50HZ/60HZ
Output Voltage (V) :
110V/220V
Application :
Home Roof
Solar system Inverter :
Inverter With MPPT Controller
Power Type :
On & Off-grid
Description

10KW Home Solar Power Roof Mounting System Residential Solar Smart Power Application


Product Features:

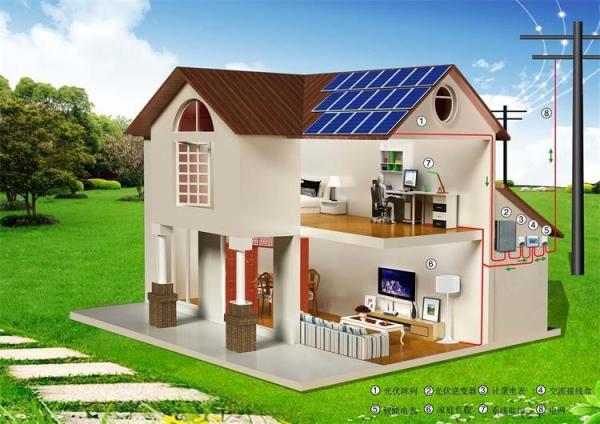

1. Off-grid & On-Grid system are mainly used for big solar power system users who wants to sell electricity to the government.

2. There has to be existing grid network. There is no need of battery bank for this system.

3. All the electricity generated from the solar panel will be supplied to the user’s house or

business as a priority, and the excess electricity will be fed back into the electric utility grid.


Specifications:

Ref No. OFF Grid --10KW
System Basic Information Solar Panel Rated Output Power 10KW
Suitable for Max Daily Power Consumption 30KWH
Rated Output AC Capacity 8KW
Solar panel
Type Crystalline Silicon PV Module, A-class 40pcs
Max Power 250W
Vmp 30.5V
Size 1655*992*45mm
Weight 22.5kg/pc
25 years power output guarantee (Note: 2pcs panels connect in series)
Controller
Voltage 12V/24V 2pc
Current 80A
Warranty 1 year
PWM high-efficiency charging controller, LED display, intelligent control; Temperature compensation, various protections.
Circuit Breaker Used for protection of controller, installed between PV array combiner and controller 2pc
Inverter
Input Voltage DC48V 2set
Output Voltage AC220V/110V 1-phase
Frequency 50/60Hz
Efficiency 90%
Note: This inverter provides grid power switch and battery charging functions.
Battery
Capacities 12V/200AH per piece 24 pcs
Service life 5 to 6 years
Warranty 3 years
Solar panel rack Flat-roof type mounting rack, steel material, anti-rust treatment(Other types of racks can be customized as per client's requirement) 2 set
Cable

100m


10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential


10KＷ Home Solar Power Smart Power Application Roof Mounting System Residential
