Specifications
Brand Name :
Sumitomo
Model Number :
T - 400S
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1 pcs one pcs in plastic box ,then in the carton
Price :
1200-1600 USD per set
Supply Ability :
100 pcs 　Per Month
Delivery Time :
5-8 days
Packaging Details :
Dimension :125mm (W) X 195MM (D) X 99mm (H) , 1.2kg (without Battery), 1.3kg (with Battery BU-15)
Size :
129*195*99（mm）
Fiber Types :
SMF(G.652). MMF(G.651). DSF(G.653), NZDSF(G.655). BIF(G.657)
MMF :
0.01dB SMF 0.02dB
Frequency :
4a（KHz）
spliceing time :
7sec (SM G652 Quick Mode)
Heating Time :
24sec (FPS-61-2.6 sleeve, S60mm 0.25 Mode)
With Battery :
1.3KG
Return Loss Range :
SMF : 0.02dB, MMF :0.01dB. DSF : 0.04dB. NZDSF : 0.04dB
Voltage :
240（V）
Data Storage :
100 images / 10,000 splice data (internal memory only)
Weight :
1.2kg (without Battery), 1.3kg (with Battery BU-15)
DC Input :
10-15V
USB :
USB 2.0 (Mini B)
Monitor :
4.3" color LCD display
Description

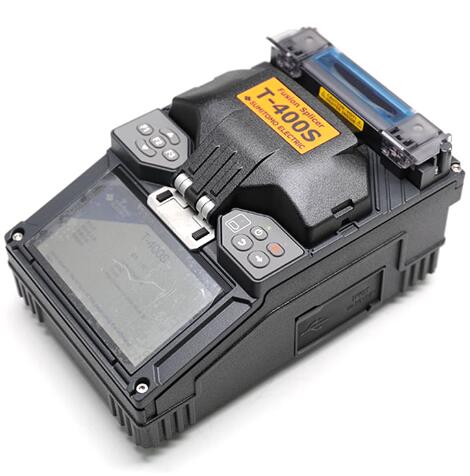

Polyester fiber blowing equipment T-400S fusion splicer

T400S fusion splicer

T400S fusion splicer sets the standard for core alignment fusion splicing by incorporating a user-friendly interface with enhanced features to provide the most rugged and reliable fusion splicer in the market today.

The new rugged construction adds improved reliability by resisting shock, dust, and rain, and drop test.

1.5 inches high Resolution colorful LCD display, image can be turned according to position


2.Average splice time: 10 second

3.Average tube-heat time: 25 second

4.Automatic heat mode

5.Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged

6.X or Y axis Separately views with 360 times magnification, or Simultaneously 220 times

7.Cutting-edge technology for image processing

8.New technology of fiber core alignment, enhanced accuracy, PAS Technology

9.New developed technology providing strong wind and dust resistance

10.Automatic self-inspection: Display inspection, Forward inspection

11.Cleave length: 9~16mm (0.25mm) 10~16mm (0.9mm)

12.Splicing mode: Auto & Manual & Full-Auto

13.Storing 6,000 groups of latest splice results

14.New technology of fiber core alignment, enhanced accuracy

15.New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)

16.New Multipurpose 1+N fixture (Patented technology)

17.1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector).

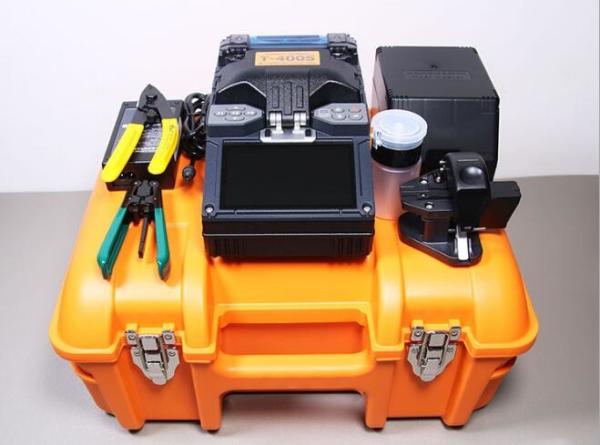

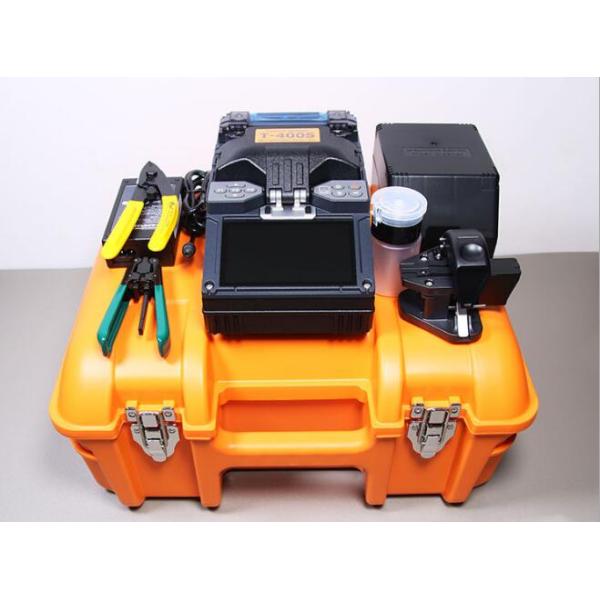

Packing:

1. T-400S Fusion Splicer

2. Fiber Cleaver

3. Carry case

4. Original battery

5. AC adaptor

6. AC power cable

7.Instruction Manual

Items
T-400S
Optical fiber
requirements
Fiber count/Profile types
Single / SMF(G.652), MMF(G.651), DSF(G.653),
NZDSF(G.655), BIF(G.657)
Cleave length
5 to 16mm for single fiber, 8mm for drop cable
Standard
performance
Splice time (typical)
7sec (SM G652 Quick Mode)
Heating time (typical)
24sec (FPS-61-2.6 sleeve, S60mm 0.25 Mode)
Programs
Splice programs
Maximum 150 splice programs can be selected
Heating programs
Maximum 50 splice programs can be selected
Functions
Splice image capture
/ Splice data storage
100 images / 10,000 splice data (internal memory only)
Multi clamp
Provided, applicable for 250 & 900μm coated fiber,
2 & 3mm jacket cord and rectangular drop cable
Size/Weight
Size
129(W) x 195(D) x 99(H) mm (without protrusion)
Weight
1.2kg (without Battery), 1.3kg (with Battery BU-15)
Monitor
4.3" color LCD display
Operating condition
Altitude : 0 ~ 5,000m, Temperature : -10 ~ +50°C,
Humidity : 0 ~ 95%RH (non-condensing), Wind velocity : up to 15m/sec
Software updates
Interne
