Specifications
Brand Name :
HICORPWELL
Model Number :
LC Duplex PVC Single-mode Fiber Loopback Module
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
10sets
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000pcs Per Week
Packaging Details :
Each fact connector into a plastic bag for LC Duplex PVC Single-mode Fiber Loopback Module
Type :
LC Duplex PVC Single-mode Fiber Loopback Module
Mode :
Single mode
Ports Type :
Plugs into input and output ports
Keyword :
LC Duplex PVC Single-mode
Fiber Length :
1m/2m/3m or Customized
Length Tolerance :
±10cm
Connector Type :
LC UPC
Package :
15X23X10 cm ( 50 pcs )
Description

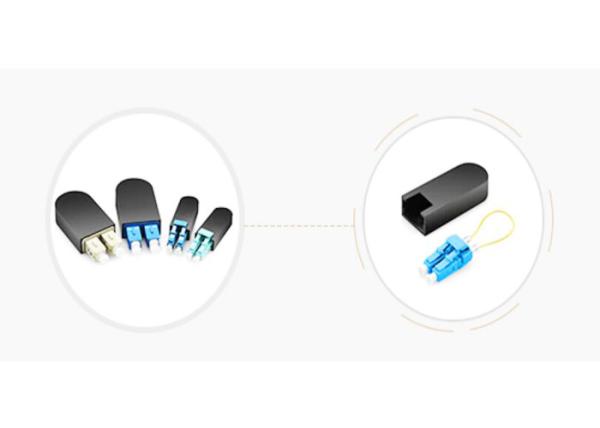

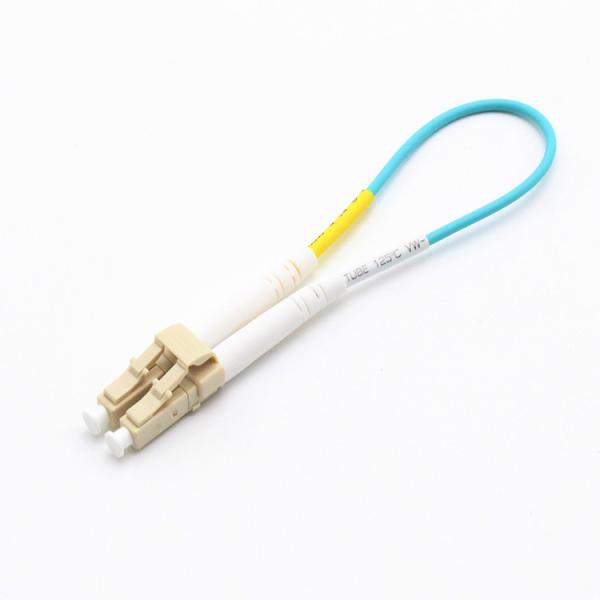

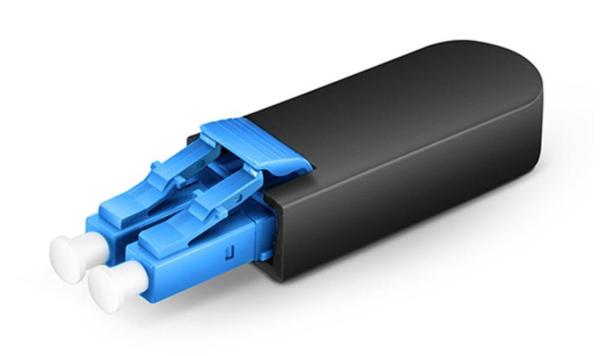

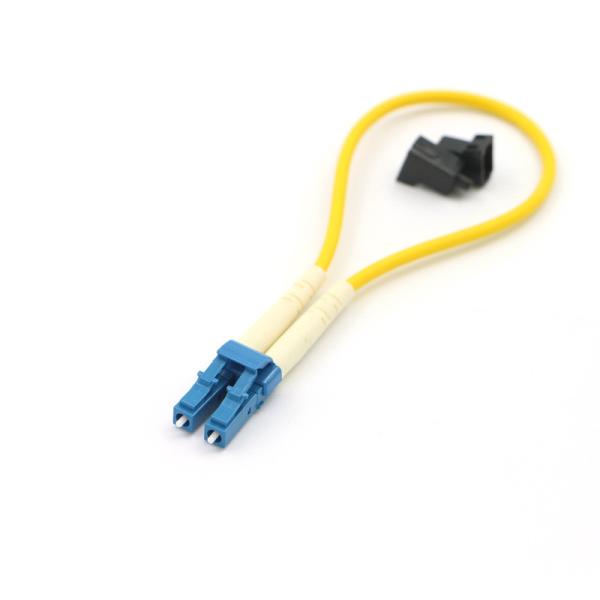

LC Duplex PVC Single-mode Fiber Loopback Module Cable for Data Center

Hicorpwell Loopback Modules are designed for testing and engineering purposes.
Our Fiber Loopback Module is designed to provide a media of return patch for a fiber optic signal.
Typically it is used for fiber optic testing applications or network restorations.
For the testing applications, the loopback signal is used for diagnosing a problem.

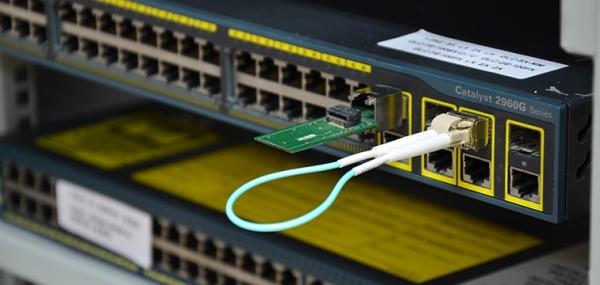

Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.
Fiber Loopback Module is abosolutely an economical solution for a number of fiber optic test applications.
Fiber type Single-mode 9/125 Fiber connector LC/UPC
Return loss SM≥50dB Insertion loss SM≤0.3dB
Jacket material PVC (Yellow) Insert-pull test 500times, IL<0.5dB
Operation temperature -20 to 70°C(-4 to 158°F) Dimensions 53x14x12mm
HTS-Harmonized Code 8517709000

Product Detail

Keywords LC Duplex PVC Single-mode Fiber Loopback Module
Application FTTH/Area Network/Test Equipment
Fiber Type SM Fiber 50/125 ;
Type Loopback Module, MM-SC UPC
Minium Purchanse 10 units
Application Burn-in test and engineering applications
Ports Type Plugs into input and output ports
Interface UPC


Feature

* Low insertion loss, High return loss;
* User friendly, Compact size;
* PVC or LSZH Jacket;
* PC/UPC/APC polish;
* Good exchangeability and repeatability;
* Comply with Telcordia GR-326-CORE Specification;
* 100% functionally tested guaranteeing performance and integrity;
Connector Type
LC
Fiber Mode
Singlemode
Insertion Loss
SM ≤0.2dB MM ≤0.2dB
Return Loss
SM ≥50dB MM ≥35dB
Repeatability
≤0.1
Fiber Length
1m/2m/3m or Customized
Length and Tolerance
±10cm

Application

*Various Test Equipments;
*Optical Fiber Communication System;
*Telecommunication Network;
*Cable Television Network;
*LANs,WANs;
*System Debugging.
LC Duplex PVC Single Mode Fiber Loopback Module Cable For Data CenterLC Duplex PVC Single Mode Fiber Loopback Module Cable For Data CenterLC Duplex PVC Single Mode Fiber Loopback Module Cable For Data Center
