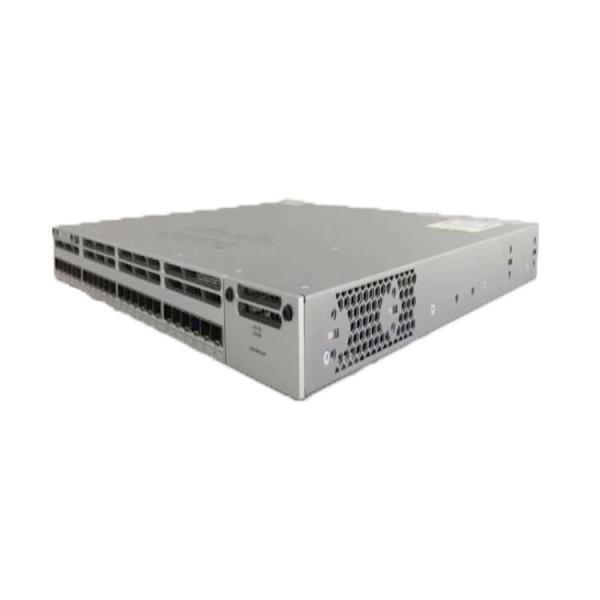

WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
Specifications
Brand Name :
HICORPWELL
Model Number :
WS-C3850-24XS-E
Certification :
FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000pcs Per Week
Packaging Details :
60pieces(box) per carton
Network Switch :
Cisco Catalyst 3850 Series
Transmission Rate :
10/100/1000Mbps
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
640G
Number of stacked wireless customers :
2000
Description
WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps

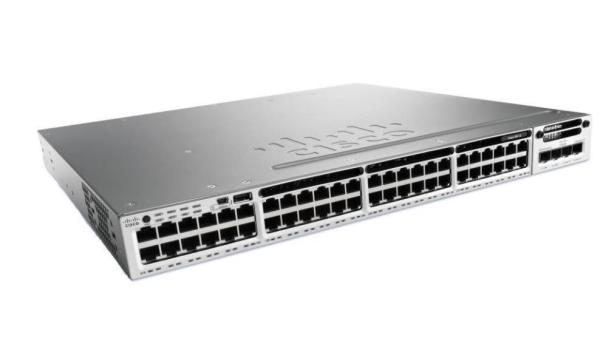

The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired
and wireless access. The new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit
(ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility,
and application optimization. This convergence is built on the resilience of the new and improved Cisco
StackWise-480 technology
Description:Cisco Catalyst 3850 24 Port 10G Fiber Switch IP Services
Product Code WS-C3850-24XS-E
Capacity (Gbps) 640 Gbps
Feature Set IP Services
Ports 24 Port 10G Porst
Forwarding Rate 454.55 Mpps
Stack bandwidth 480Gbps
DRAM(G) 8

Number of stacked

wireless customers

 2000

WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps

The Catalyst 3850 Series Switches support five optional network modules for uplink ports.

The default switch configuration does not include the network module.

At the time of switch purchase the customer has the flexibility to choose from the network modules described in Table .

Models Network Modules
WS-C3850-24T C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-48T C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
WS-C3850-24P C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-48P C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
WS-C3850-48F C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
WS-C3850-24U C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-48U C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
WS-C3850-24XU C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
WS-C3850-12X48U C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
WS-C3850-12S C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-24S C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-12XS C3850-NM-4-10G
WS-C3850-24XS C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
WS-C3850-48XS None

The Catalyst 3850 Series Switches support dual redundant power supplies. The switch ships with one power

supply by default, and the second power supply can be purchased at the time of ordering the switch or at a

later time. If only one power supply is installed, it should always be in power supply bay 1. The switch also ships

with three field-replaceable fans.

Below table shows the different power supplies available in these switches and available PoE powe.

Models Default Power Supply Available PoE Power
24-port data switch PWR-C1-350WAC -
48-port data switch
24-port PoE switch PWR-C1-715WAC 435W
48-port PoE switch
48-port full PoE switch PWR-C1-1100WAC 800W
24-port UPOE switch PWR-C1-1100WAC 800W
48-port UPOE switch
24-port Multigigabit UPOE switch PWR-C1-1100WAC 580W
48-port Multigigabit UPOE switch PWR-C1-1100WAC 630W
12-port SFP switch PWR-C1-350WAC -
24-port SFP switch
12-port SFP+ switch PWR-C1-350WAC -
24-port SFP+ switch PWR-C1-715WAC -

WS-C3850-24XS-E 10 Gigabit Switch 24 Port 10G Fiber IP Services Network Switch 1000mbps
