Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
Specifications
Brand Name :
HICORPWELL
Model Number :
FC/SC/ST/LC Hand Throwing Disk
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100pcs Per Week
Delivery Time :
15 working days
Packaging Details :
One piece in a carton
Name :
FC/SC/ST/LC Hand Throwing Disk
Connectors :
SC FC ST LC MPO MTP MTRJ
Type :
Square Pressure Polishing Machine
60RPM :
Grinding Plate is less than 0.015mm
Usage :
Polishing
Power supply :
220V(AC), 50Hz
Cores :
18 20 24
Timer :
Omron rotation, key digital timer, any timing
Description

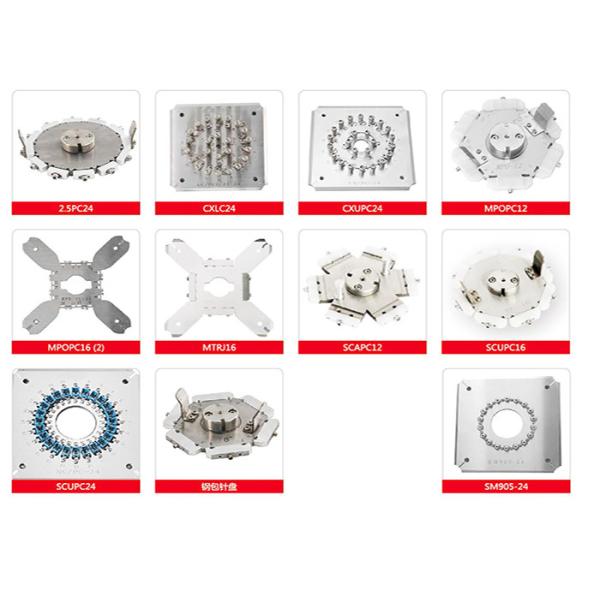

Square Pressure Polishing Machine Polishing Disc Sanding Grinding Disk Stainless Steel FC/SC/ST/LC Disk

Features

* Fiber ferrules for grinding 2.5mm and 1.25mm PC end faces, such as FC, SC, ST/LC, etc.
* Made of high quality finished stainless steel, hard and wearable;
*The inner and outer round edges are designed for easy manual operation;
*The processing size is exquisite, smooth and burr-free, ensuring the grinding effect;
* Light and small, easy to carry;

Description

Under the condition that replacement or welding is not allowed, the end face of the tail fiber of damaged ( including scratches and cracks )

optical devices with various functions ( such as lasers, transceivers, modulators, optical switches, amplifiers, compensators, etc. )

Fiber optic manual grinding disc Manual grinding disc for repairing optical fiber end face is a fast,

simple and efficient tool for repairing end face on site.

Specifications


1. Timer: Omron rotation, key digital timer, any timing

2. Suitable: φ2.5mm PC,APC:FC,SC,ST；φ1.25mmPC,APC:LC,MU,MT,mini-MT,MT-RJ；

PC,APC:MPO,MTP,MPX；Pig-tail；Fiber-arry；PLC

3 Cores:18 20 24

4. Standard fiber optic connectors: FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,

FC/APC,SC/APC,MT-RJ,E2000 etc.

5. Connector insertion loss: ≤0.2dB(SM),≤0.15dB(MM)

6. Return loss: ≥50dB(PC),≥60dB(APC)

7. Radius of curvature: PC:10～25mm(φ2.5mm),7～25mm(φ1.25mm),APC:5～12mm

8. Repeat loss: ≤0.1dB；Swap loss: ≤0.2dB

Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC DiskSquare Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk

Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk Square Pressure Grinding Machine Polishing Disc Stainless Steel FC/SC/ST/LC Disk
