Specifications
Brand Name :
HICORPWELL
Model Number :
The Fiber Collimator Series 60FC-T
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
800 pcs Per Month
Packaging Details :
Standard Package
Name :
The Fiber Collimator Series 60FC-T
Large Beam Diameters :
Focal lengths up to 200 mm
Choice of fiber receptacles :
FC PC or FC APC (standard), others available
Keyword :
Fiber Collimator
Material :
Nickel silver and black anodized aluminum (standard) or in amagnetic titanium
Connectors Type :
FC PC, FC APC, ST or LSA (compatible with fiber connectors type DIN, AVIO and AVIM).
Description

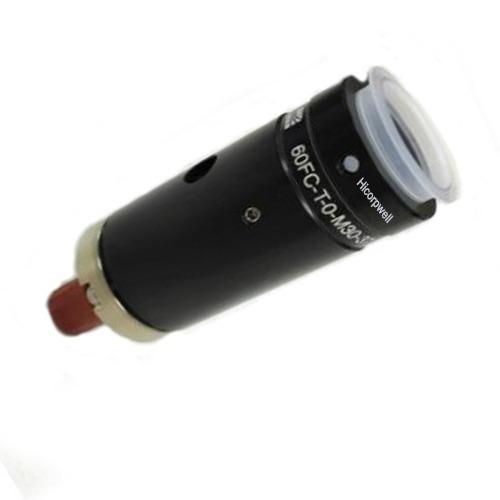

The Fiber Collimator Series 60FC-T Devices for Launching Collimated Light into The Fiber

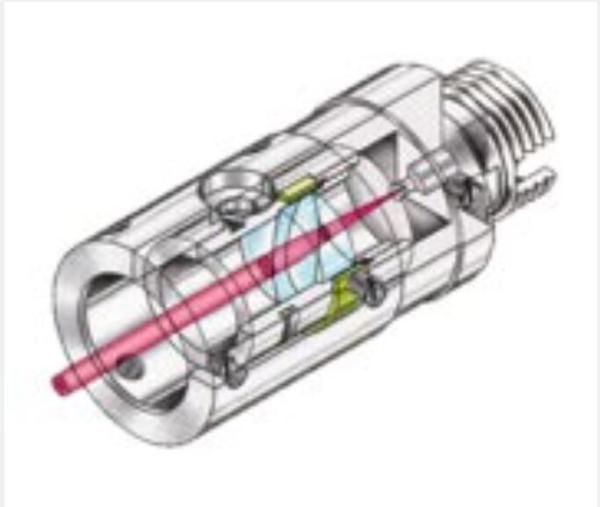

The fiber collimator series 60FC-T is designed for collimating radiation exiting from an optical fiber cable or used in reverse as a fiber coupler (fiber port) for coupling a beam into an optical fiber cable. It has an integrated TILT adjustment to prevent aberrations from vignetting or clipping.
  • Large beam diameters: Focal lengths up to 200 mm
  • Choice of monochromats or achromats
  • Various AR coatings for UV - IR
  • Choice of fiber receptacles: FC PC or FC APC (standard), many others available
  • Integrated TILT adjustment to prevent aberrations from vignetting or clipping

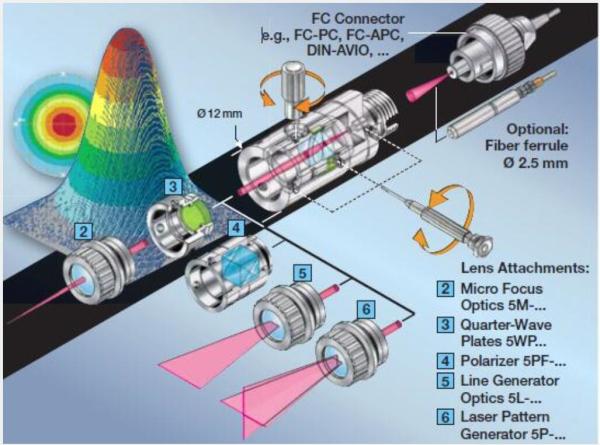

  • Front connector accepts attachment optics

Adjustment of focus and TILT


The distance between fiber end-face and collimating optics is adjusted by means of an eccentric key. The lens does not rotate when adjusting the focus. The final focus setting is locked by means of two radially arranged clamping screws. Additionally attachment optics can be mounted to the front of the collimator.
Additionally, the collimator has an integrated TILT adjustment for aligning the beam axis to the mechanical axis. This prevents vignetting of the collimated beam as well as diffraction arising from the clipped beam.

Material


The fiber collimators are made of nickel silver and black anodized aluminum (standard) or in amagnetic titanium. In case of titanium, the relative permeability is near 1 (µr=1.00005) making it almost transparent to magnetic fields. The linear coefficient of thermal expansion is close to that of the optics so that a thermal stability over a larger temperature range can be expected.

Mounting


All Fiber Collimators 60FC-T with diameter Ø25 mm can be placed in a standard mirror mount. 60FC-T with a larger diameter posses a flange for low-strain mounting e.g. using the clamp collars series CC.

Fiber Collimator Series 60FC-T Devices for Launching Collimated Light into The Fiber

Fiber Collimator Series 60FC-T Devices for Launching Collimated Light into The Fiber

Fiber Collimator Series 60FC-T Devices for Launching Collimated Light into The Fiber
