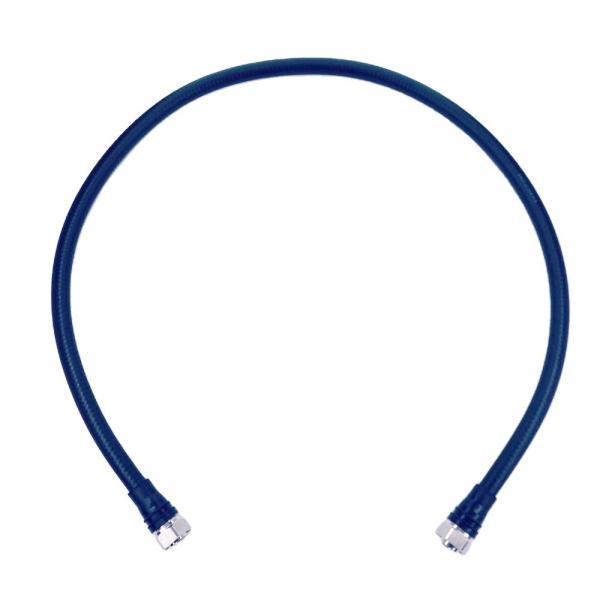

4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
Specifications
Brand Name :
HICORPWELL
Model Number :
4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500 pcs per Week
Packaging Details :
4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper
Cable Type :
4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper
Length :
3m 5m 10m 15M
Certificates :
IEC 60169
Characteristic Impedance :
50 ohm
Key Words :
RF coaxial cable as4.3-10 male --> 4.3-10 male to Male semblies
Frequency Range :
DC-6GHz
PIM3 :
≤-160dBc
Other Cable type: :
FSJ1-50A (1/4''), FSJ2-50 (3/8"), LDF4-50A (1/2"), LDF5-50A (7/8"), VXL5-50 (7/8"), LMR100, LMR195, LMR200, LMR240, LMR400, LMR500 and LMR600
Description

4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper

Jumper Cable RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps.With only one combination connector and the different cable clamps,a variety of connectors can be produced allowing a reduction in stock-levels.

The technical specifications can be obtained from the descriptions in the respective chapters for each series.

4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper

Note: connector and cable type,length an be changed based on customer's requirements.


Features:


1) RF coaxial cable assemblies
2) RF connector with Andrew / LMR / RG cable series
3) Connector type: N, L29 (7/16), SMA, SMB, MCX and others
4) Cable type: FSJ1-50A (1/4''), FSJ2-50 (3/8"), LDF4-50A (1/2"),
LDF5-50A (7/8"), VXL5-50 (7/8"), LMR100, LMR195, LMR200, LMR240,
LMR400, LMR500 and LMR600
5) OEM / ODM orders are welcome

Name :4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper

Interface
According to IEC 60169
Electrical
Characteristic Impedance 50 ohm
Frequency Range DC-6GHz
VSWR VSWR≤1.10(3.0G)
PIM3 ≤-160dBc
Dielectric Withstanding Voltage ≥2500V RMS,50hz,at sea level
Contact Resistance Center Contact ≤1mΩ Outer Contact ≤1mΩ
Dielectric Resistance ≥5000MΩ
4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper
Mechanical
Durability Mating cycles ≥500cycles
4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper
Material and plating
Material plating
Body Brass Tri-Alloy
Insulator PTFE -
Center conductor Tin Phosphor bronze Ag
Gasket SIlicone rubber -
Other Brass Ni
4.3-10 Male To Male Jumper 1m/2m/3m/4m/5m rf MINI DIN Superflex Jumper
Environmental
Temperature Range -40℃~+85℃
Rosh-compliance Full ROHS compliance

4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper4.3-10 Male To Male Jumper 1m 2m 3m 4m 5m Rf MINI DIN Superflex Jumper
