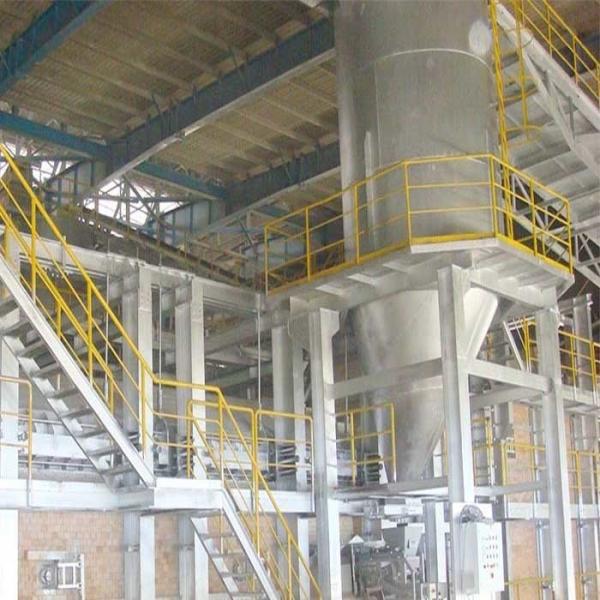

Big Capacity ISO45001 50Hz Glass Furnace Melting Device
Big Capacity ISO45001 50Hz Glass Furnace Melting Device
Big Capacity ISO45001 50Hz Glass Furnace Melting Device
Big Capacity ISO45001 50Hz Glass Furnace Melting Device
Specifications
Brand Name :
JEFFER
Model Number :
Customized
Certification :
ISO9001, ISO14001, ISO45001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1 set per 6 month
Delivery Time :
180 days after received the down payment
Packaging Details :
Wooden case, steel frame
Condition :
New
Voltage :
380V, 50Hz
Dimension :
Customized
Application :
Glass industry
Products :
Domestic Glass
Waranty :
One year
Type :
Cross fired furnace
Fuel type :
Heavy Oil
Color :
Customized
After-sales :
Engineers available to service machinery overseas
Description

Big Capacity of Glass Furnace Melting Device, Cross Fired Furnace

1. Brief Introduction

Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.


The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.

The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.


Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.

Big Capacity ISO45001 50Hz Glass Furnace Melting Device

2. Feature

1 High productivity
2 Longitudinal temperature adjustable

3. Structure of furance

1 Melting section
2 Breast wall
3 Crown
4 Port
5 Regenerator
6 Cooling section
7 Flue channel
8 Double deck reversing unit
9 Waste heat treatment system

4. Main component

  • Melting tank

The melting tank is combined with melting area and clearing area.

  • Regenerator

The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.

  • Port

It is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the

waste gas out.
