Large Size Gas Cross Fired ISO45001 Glass Melting Furnace
Large Size Gas Cross Fired ISO45001 Glass Melting Furnace
Specifications
Brand Name :
JEFFER
Model Number :
Customized
Certification :
ISO9001, ISO14001, ISO45001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1 set per 6 month
Delivery Time :
180 days after received the down payment
Packaging Details :
Wooden case, steel frame
Condition :
New
Voltage :
380V, 50Hz
Dimension :
Customized
Application :
Glass melting
Products :
Various
Waranty :
One year
Type :
Cross fired furnace
Fuel type :
Gas
Color :
Customized
After-sales :
Engineers available to service machinery overseas
Description

Large size, Gas Fuel, Cross Fired Furnace, Glass Material Melting Furnace

1. Brief Introduction


Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.

The direction of flames of a cross fired furnace is from one side to the other side, which is across the width of the furnace and perpendicular with the flow direction of glass liquid.

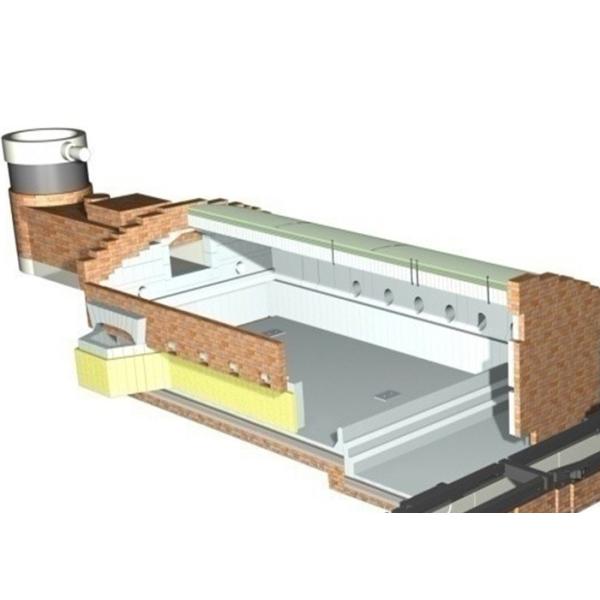

Large Size Gas Cross Fired ISO45001 Glass Melting Furnace

2. Process

1 The batching materials goes into the furance
2 The materials melt into glass liquid
3 The glass liquid goes into throat after clearing, homogenization and cooling

3. Main component

  • Batch charging

The dimension of batch charging area is determined by the different size of furnace and batching methods.

  • Melting tank

The melting tank is combined with melting area and clearing area.

  • Regenerator

The regenerator as a waste heat recovery device, the combustion air flows through the regenerator, after preheated, it will arrive at the furnace through the port.

  • Port

It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.

  • Double deck reversing unit

After a period of heating, the double deck reversing unit will change the flow direction of waste gas and combustion air.
