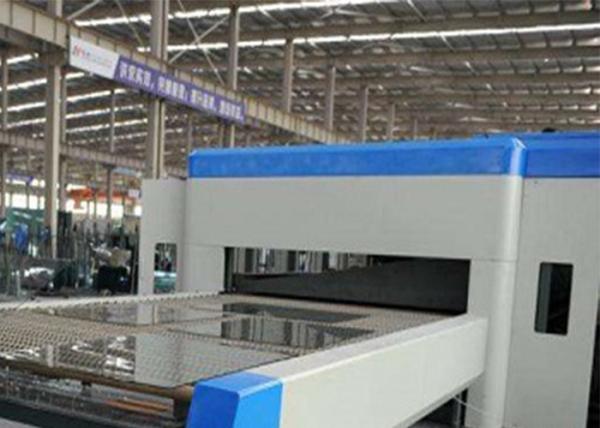

100 TPD Flint Construction Sheet Glass Making Machine
100 TPD Flint Construction Sheet Glass Making Machine
100 TPD Flint Construction Sheet Glass Making Machine
100 TPD Flint Construction Sheet Glass Making Machine
Specifications
Brand Name :
JEFFER
Model Number :
Customization
Certification :
ISO9001， ISO14001， ISO45001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1 sets per 4 months
Delivery Time :
120 days after receiving the down payment
Packaging Details :
Wood case, tray, steel frame......
Name of Product :
Sheet Glass
Application :
Construction
Raw Material :
Silica Sand, Feldspar
Condition :
New
Capacity :
100tpd
Voltage :
380V
Dimension :
Customized
Warranty :
1 year
Service :
Engineer oversea service avaliable
Description

100 Ton Per Day, Sheet Glass Making Machine, Flint Glass, Construction Glass

1. Brief Description

Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.

Production process of sheet glass was created by Belgium Glaverbel Company in 1961. Under this kind of process, it can achieve a glass thickness from 0.8mm to 12mm.

Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.

The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.



2. Characteristic

Item Description
1 Long-term stable production of thin glass under 3mm.
2 Good flatness
3 Small variation in thickness
4 Excellent product quality


3. Scope of Supply

  • Raw material treatment system
  • Internal and external cullet system
  • Glass furnace
  • Forming device
  • Cold end device
  • Utlity equipemnt
  • Auto control system


4. Raw Materials

Main materials are mainly including:

Silica Sand
Dolomite
Limestone
Feldspar
Soda Ash
Salt Cake
Cullet



5. Main Equipment Description

  • Batch Plant

For batching and mixing the raw materials.

  • Furance

The melting tank is key part of glass production line, the refractory materials quality is very important.

  • Forming

Compared with the float glass process, the sheet glass is combined with slotless process and horizontal stretching process, forming the glass liquid by slotless tank and stretching rotation method.

  • Annealing Lehr
The purpose of glass annealing is to eliminate the internal residual stress and optical heterogeneity of float glass in order to stabilize the internal structure of glass.
