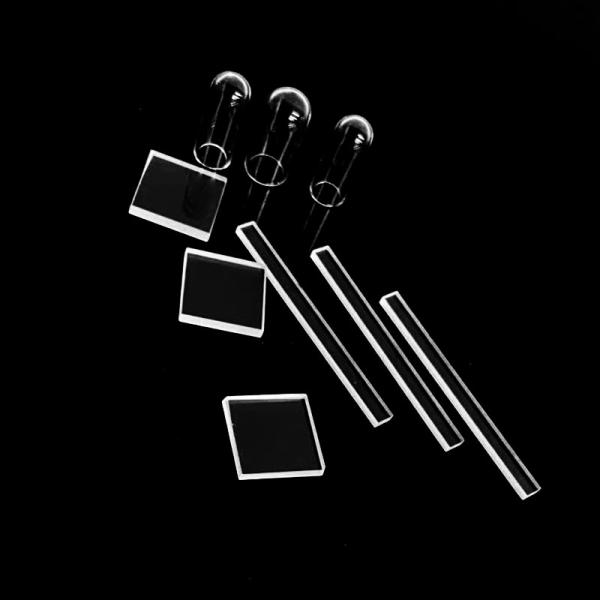

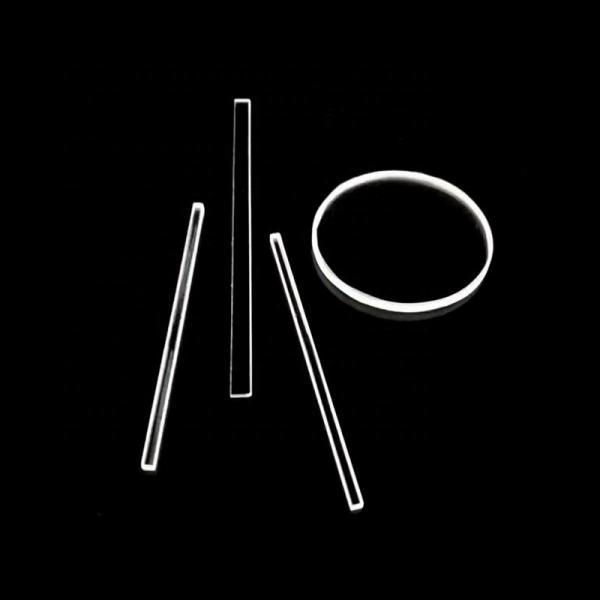

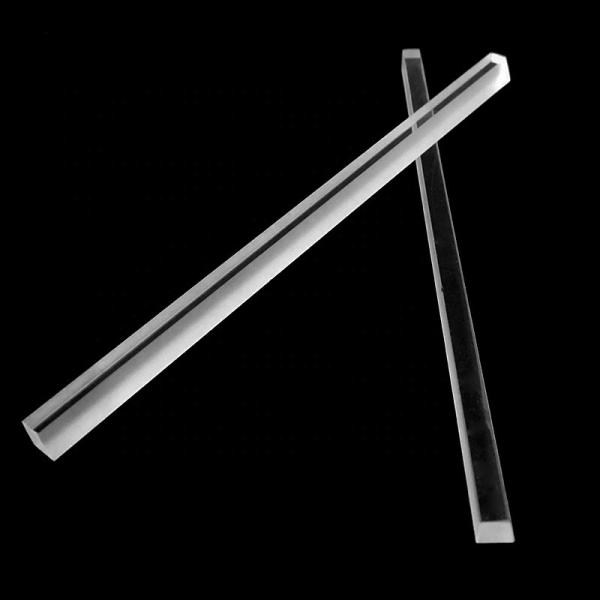

Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
Specifications
Brand Name :
UNIFORM
Model Number :
AUTC-LGR-129
Certification :
SGS CE ISO
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
10-15days
Packaging Details :
carton box and wooden box
Material :
Quartz
Size :
Customized
Color :
Transparent
Transmittance: :
92%
Melting point: :
1732℃
Softening point: :
1630℃
Description

Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods

Product Description:

The standard transparent quartz tube is made of high-purity quartz sand. High purity, strong heat resistance, high light transmittance and accurate size.

Quartz rods are used to manufacture high temperature and corrosion resistance of semiconductors, electric light sources, semiconductor communication devices, lasers, optical instruments, laboratory instruments, electrical
equipment, medical equipment and chemical instruments, chemical industry, electronics, metallurgy, building materials and national
defense industry. It is widely used.
Advantage of Quartz Rod:
Can do flame polishing
Broad Transmission Spectrum
Low Thermal Expansion Coefficient
Quartz Rod can work long time with 1100°C
No bubble, no airline
High Corrosion Resistance Transmission of visible light>85%
Specification
Sio2
99.99%
Density
2.2g/cm³
Hardness
570KNH100
Melting point
1732℃
Working temperature
1100℃
Annealing point
1180℃
Softening point
1630℃
Resistance Value
1000 times than ordinary glass
Light Transmittance
>92%
Application
electric light sources/semiconductor

Physical Properties:

Property Content
Unit
Property Index
Density

g/cm³

2.21

Tensile Strength

Pa(N/㎡)

4.9×107

Compression Strength

Pa

>1.1×109
(20℃-300℃)
Coefficient of Thermal Expansion

cm/cm℃

5.5×10-7

Thermal Conductivity

W/m℃

1.4

Specific Heat

J/kg℃

680

Softening Point

℃

1700

Annealing Point

℃

1210

Chemical composition (unit:ppm)

Al
Fe
K
Li
Cu
Na
B
Ca
Mg
OH
17
1.6
3.8
0.74
0.1
1.8
0.02
1.7
1.5
≤150

Light Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass RodsLight Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass RodsLight Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass RodsLight Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass RodsLight Guide Quartz Glass Square Rods Quartz Glass Square Rods Stirring Glass Rods
