Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens
Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens
Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens
Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens
Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens
Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens
Specifications
Brand Name :
UNIFORM
Model Number :
AUTC-GP-526
Certification :
RoHS, ISO9001, CE, TUV
Place of Origin :
CHINA
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300-500pcs/day
Delivery Time :
7 days
Packaging Details :
carton box and wooden box
material :
Quartz glass
Size :
dia.30mm, length:35mm
Transmittance :
95%
Shape :
rod shape
HS Code :
9001909090
Description

Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens

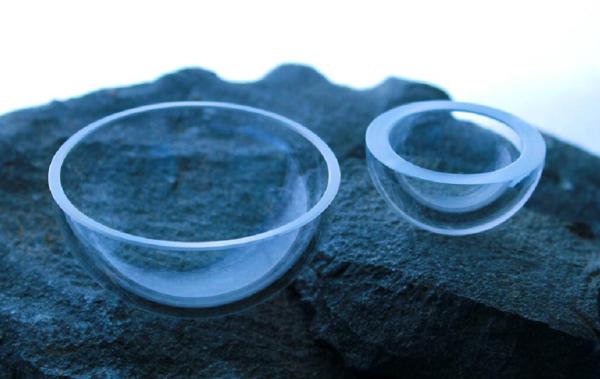

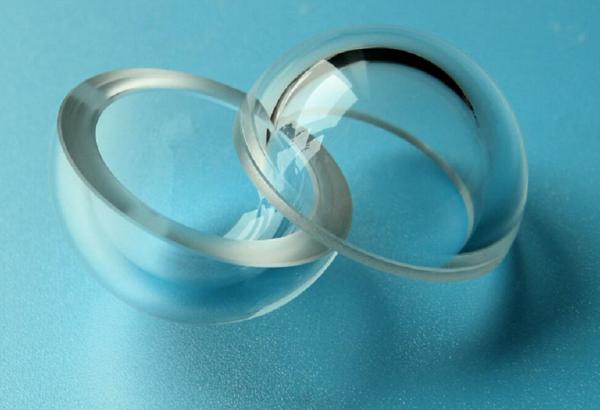

Optical Sapphire Sphere Dome Lens
Dome windows are hemispheres. The two optical surfaces are an equal thickness apart, creating a naturally strong shape that gets tougher under pressure. This makes dome windows ideal for underwater environments and in applications such as camera dome ports and submersible windows.
BK7 or K9L domes are used primarily in meteorology applications. BK7 offers excellent transmission from 300nm up to 2µm. BK7 is a relatively hard material, with excellent chemical durability.
UV fused silica domes ( JGS1 ): For applications operating in the deeper UV range, Worldhawk offers a range of UV fused silica domes. Fused silica domes are commonly used in underwater applications at extremely high pressures.
Sapphire domes: For infrared applications we can provide sapphire domes. Sapphire is an extremely hard material with transmission of over 80% in the 2-5µm wavelength range. As with fused silica, sapphire is able to withstand extreme pressures, making it the perfect material for underwater camera and missile fairing applications.

Specifications:

Material N-BK7 , H-K9L, UV Fused Silica, JGS1, Sapphire, IR crystal
Diameter 5mm-150mm, 150-300mm
Diameter Tolerance +/-0.1mm
Thickness >2mm
Thickness Tolerance ±0.2~0.1mm
Center Deviation 3-5'
Surface Accuracy 1L 1/2L 1/4L or According to size
Surface quality 80/50 60/40
Coating Both side Antireflection Coatings
Chamfers 0.2 x 45° typical

Dia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball LensDia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball LensDia 1~50mm Optical Glass Hemisphere Sapphire Sphere Dome Lens Half Ball Lens
