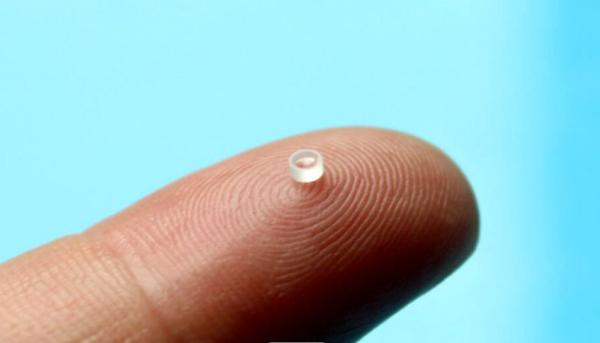

Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
Specifications
Brand Name :
UNIFORM
Model Number :
AUTC-GP-555
Certification :
RoHS, ISO9001, CE, TUV
Place of Origin :
CHINA
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300-500pcs/day
Delivery Time :
7 days
Packaging Details :
carton box and wooden box
material :
Quartz glass
Size :
dia.30mm, length:35mm
Transmittance :
95%
Shape :
rod shape
HS Code :
9001909090
Description

Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet and Achromatic Triplets )

Diameter 3~150mm
Diameter Tolerance +/-0.1mm, +/-0.05mm

Thickness Tolerance

( center, edge)

 +/-0.1mm, +/-0.05mm
Focus Length Tolerance +/-1% ~0.5%
Surface Accuracy 1lambda , 1/4 lambda
Surface Quality 60-40, 40-20 or better
Centration 5'~1'
Clear Aperture 85% ~95%
Chamfer 0.1~0.3mm x 45degree

+1 Cemented Achromatic Doublets

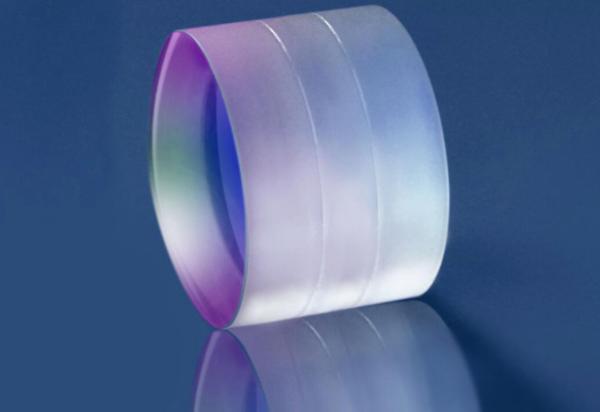

Achromatic lenses consist of two optical components cemented together to form an achromatic doubled, which is computer optimized to correct for on-axis spherical and chromatic aberrations. 		+2 Cemented Achromatic Triplets
An achromatic triplet is the simplest lens that corrects all primary chromatic aberrations. These triplets consist of a low-index center element cemented between two identical high-index outer elements and feature good on-axis and off-axis performance.
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets ) Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )

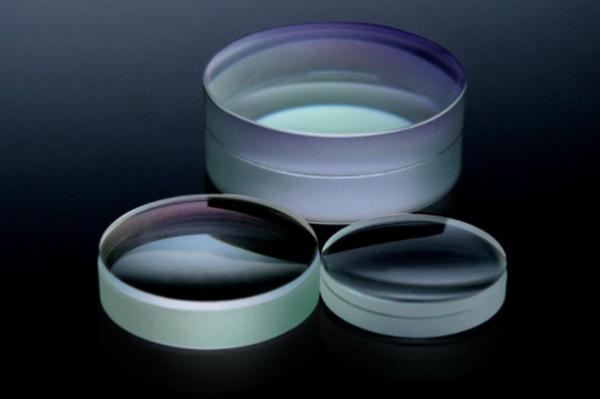

+3 Achromatic Doublet Pairs
Worldhawk offers Matched Achromatic Pairs for use in the visible or NIR spectral range. Matched Achromatic Pairs are ideal for image relay, NA conversion, or image magnification.		 +4 Air-Spaced Achromatic Doublets
Worldhawk' selection of air-spaced achromatic doublets offer diffraction-limited spot size, superior aberration correction, and higher damage thresholds than traditional cemented doublets. They have been designed for use across broad wavelength ranges with minimal aberrations.
Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets ) Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )

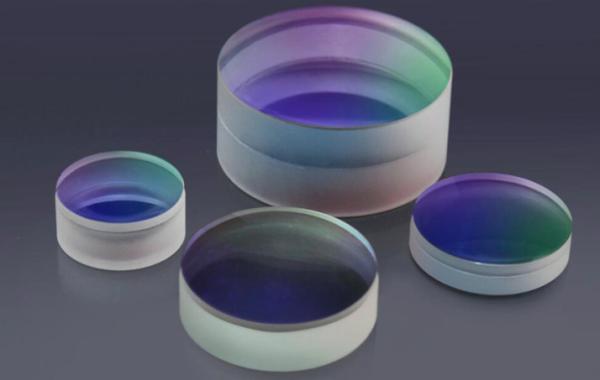

+5 Negative Achromatic Lenses
Consisting of two optical elements cemented together, negative achromats are corrected for color and on-axis aberrations. Used predominantly as Barlow lenses to extend focal lengths, they are often combined with positive achromatic mirror systems and imaging lenses.

Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )

Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )Miniature Optical Glass Telescope Lenses Achromatic Lens ( Achromatic Doublet And Achromatic Triplets )
