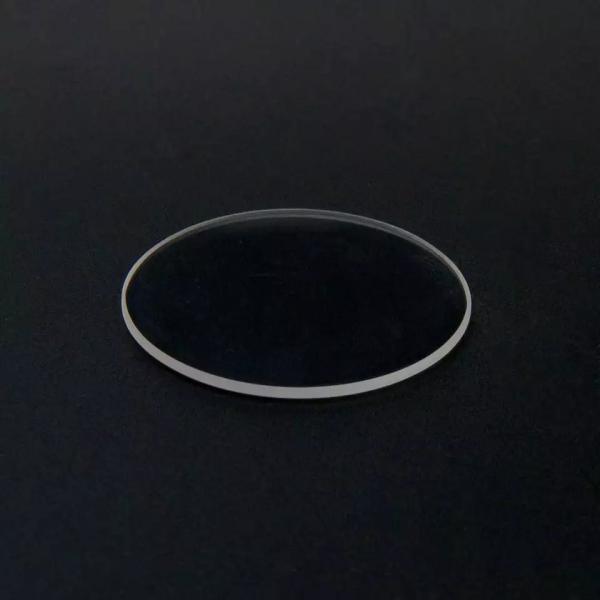

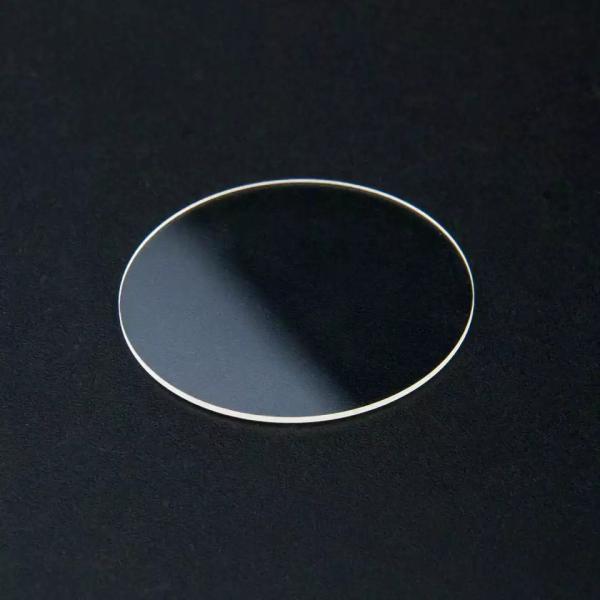

CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows
CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows
CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows
CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows
CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows
CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows
Specifications
Brand Name :
UNIFORM
Model Number :
AUTC-LGR-404
Certification :
CE,SGS
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
10000 pcs/month
Delivery Time :
15 days
Packaging Details :
carton box and wooden box
Colour :
Transparent Clear Glass
Material :
CaF2
Surface quality: :
60/40 40/20
Focal length: :
2mm-10000mm+/-0.3%
Shape: :
cylindrical
Structure: :
Plano-convex
Description

CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows

Calcium Fluoride is used for optical windows, drilled discs, lenses and prisms in transmision range 0.15-9µm. Degradation due to to moisture in the atmosphere is minimal, and polished surfaces of the CaF2 windows may be expected to withstand several years exposure to normal atmospheric conditions.
Since they are nonaxial, CaF2 crystals do not require consideration of axial direction. Because of CaF2 low refractive index, Calcium Fluoride windows can be used without an anti-reflection coating.
Typical applications: VUV - UV - IR imaging systems, excimer laser windows, CaF2 viewport, Spectroscopic windows and lenses.We produce CaF2 windows and mirrors for European manufacturers of gas detectors and gas analyzers.

Specification
Standard precision
High-precision
Dimension Tolerance
φ5-150mm+0/-0.2
φ3-200mm+0/-0.2
Thickness Tolerance
1-50mm+/-0.1
1-50mm+/-0.05
Parallelism
1 arc minutes
10 arc seconds
Surface Quality
60/40
20/10
Flatness
N<λ 2@633nm(at="">
N<λ 10@633nm(at="">
Clear Aperture
>90%
>95%
Chamfer
Protected <0.5mmx45deg
Protected <0.5mmx45deg

Production Process

CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows

CaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical WindowsCaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical WindowsCaF2 Window Optical Calcium Fluoride Infrared Optical Glass Optical Windows
