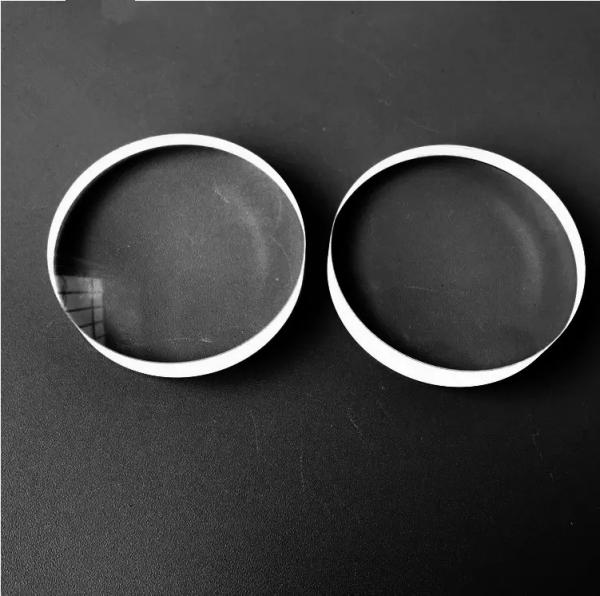

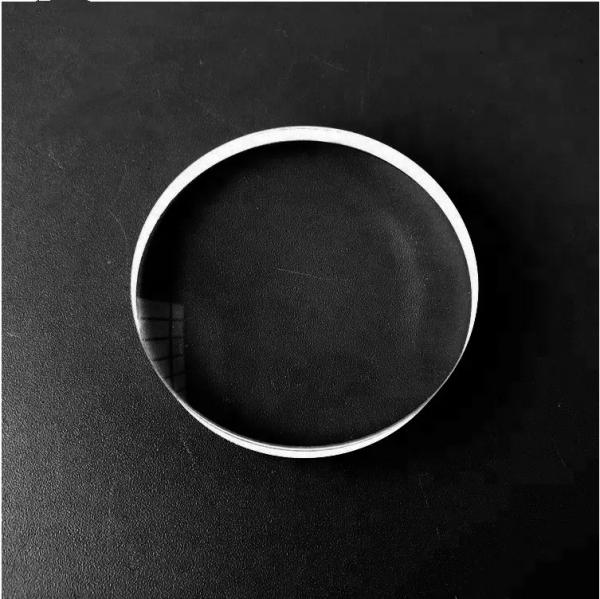

High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Windows
High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Windows
High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Windows
High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Windows
High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Windows
High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Windows
Specifications
Brand Name :
UNIFORM
Model Number :
AUTC-LGR-358
Certification :
CE,SGS
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
10000 pcs/month
Delivery Time :
15 days
Packaging Details :
carton box and wooden box
Colour :
Transparent Clear Glass
Material :
Quartz
Surface quality: :
60/40 40/20
Focal length: :
2mm-10000mm+/-0.3%
Shape: :
cylindrical
Structure: :
Plano-convex
Description

High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Window

Specification

window is the most common type of window. It has good performance over visible and near infrared wavelength region. BK7 window is ideal for applications require minimal transmitted beam deviation.

Diameter Tolerance
+0.0 / -0.2 mm
Thickness Tolerance
±0.1 mm
Clear Aperture
>90% Diameter
Parallelism
≤5 arcsec
Surface Flatness
λ/10 over CA
Substrate
N-BK7
Surface Quality
20-10 Scratch-Dig

Main advantages:
Diamonti masters the entire value chain and leverages its reliable product portfolio to produce customized aspheres
Custom designed products of the highest quality
Flexible production – from a single piece to serial production
Customized polishing possible
Advantages of using aspheres:
Improvement of imaging quality
Reduction of construction size and depth
Reduced weight
Enhanced total light transmission
Easier assembly

Production Process

High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Windows

High Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical WindowsHigh Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical WindowsHigh Temperature Resistant Quartz Material Uncoated Optical Glass N-BK7 Optical Windows
