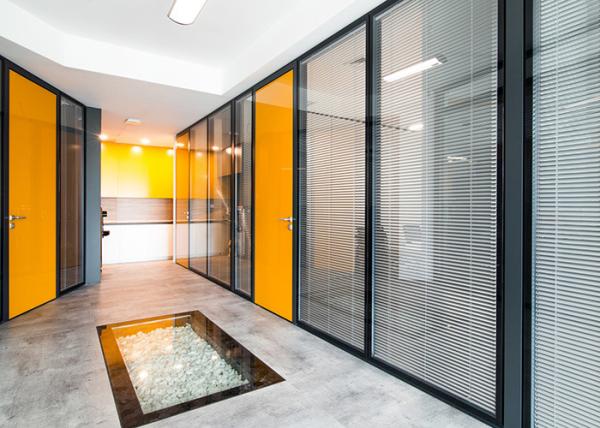

Office 2 Hour Fire Rated Glass Partition 6mm 12mm thick Steel Frame Glass Partition
Office 2 Hour Fire Rated Glass Partition 6mm 12mm thick Steel Frame Glass Partition
Office 2 Hour Fire Rated Glass Partition 6mm 12mm thick Steel Frame Glass Partition
Office 2 Hour Fire Rated Glass Partition 6mm 12mm thick Steel Frame Glass Partition
Specifications
Brand Name :
Glawall
Model Number :
79, 90, 108 series
Certification :
TUV, SGS, ISO 9001
Place of Origin :
Guangdong, China
MOQ :
10㎡
Price :
USD 29-110/㎡
Payment Terms :
T/T, L/C, Western Union, Paypal, D/P, D/A
Supply Ability :
3000㎡/month
Delivery Time :
15-30 days
Packaging Details :
Bubble film and paper package, wooden crate
General Use :
Commercial building furniture
Application :
Fireproof glass partition
Style :
Modern style
Materials :
Metal steel frame + fire rated glass
Size :
Customized size as per drawing
Aluminum Color :
Black, gray or white
Fire rated :
2 hour
Finish surface :
Steel frame + fire rated glass
Partition thickness :
79, 90, 108mm thick
Sound insulation :
42-48db
Description

Fire Rated Glass Partitions For Office 2 Hour Fire Retardant Steel Frame Glass Partition Walls

Product descriptions

Glawall offers glass steel partition or metal steel-partition systems that comply with specific fire resistance requirements. This style blends with fire-resistant glass or fire-resistant metal steel boards to make an integral interior space. Partitions and doors meeting specific requirements for fire resistance.

Fire proof glass partition is becoming more and more important in public administration building.

Office 2 Hour Fire Rated Glass Partition 6mm 12mm thick Steel Frame Glass Partition

Design features Fire rated glass partition wall
Series 108 series fire rated partition
Layers Single/double glass
Glass thickness 6mm , 12mm fire rated glass
Application Office and conference room
Panel thickness 90, 108mm
Built-in doors Single glass and double glazed doors, solid doors
View Transparent, colored or frosted glass, blinds intergrated between the glass panels
Noise reduction coefficient STC 48 db
Fire resistance performace 30 -120 min

108 Series metal frame glass partition

Height: Up to 4500mm

Width: Up to 1600mm

Wall thickness: 108mm

Glass thickness: 6mm fire-resistant glass

Design features: Steel profile with fire-resistant glass

●Core Construction: Panel to panel joint by steel structure

●Frame assembling: Modular, pre-assembling in factory

●Module Dimension: Customized size as per plan

●Average thickness of profile: 3.0mm

●Sound insulation: 45-48db

●Color: Black, sliver, gray

●Visibility: clear fire-resistant glass

●Fire resistance: 30-120 min

Office 2 Hour Fire Rated Glass Partition 6mm 12mm thick Steel Frame Glass Partition

Producsts Packing:
A. PE foam inside protecting material.
B. Corner covering for all aluminum materials.
C. Separated pp bag for hardware fitting inside.
D. Glass parts are packed by wooden frame to avoid fragile

Office 2 Hour Fire Rated Glass Partition 6mm 12mm thick Steel Frame Glass Partition
