Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Specifications
Glass Edging Machine Type :
No
Grinding Head Number :
No
Condition :
New
After-sales Service :
One Year
Transport Package :
Protective Film
Trademark :
Fssida
Origin :
China
HS Code :
8464201000
Supply Ability :
100sets/Month
Warranty :
One Year
Type :
No
Certification :
ISO 9001
Structure :
Horizontal
Control System :
No
Glass Washing Machine Type :
No
Customization :
Available | Customized Request
Place of Origin :
China
MOQ :
1 set
Delivery Time :
Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Description

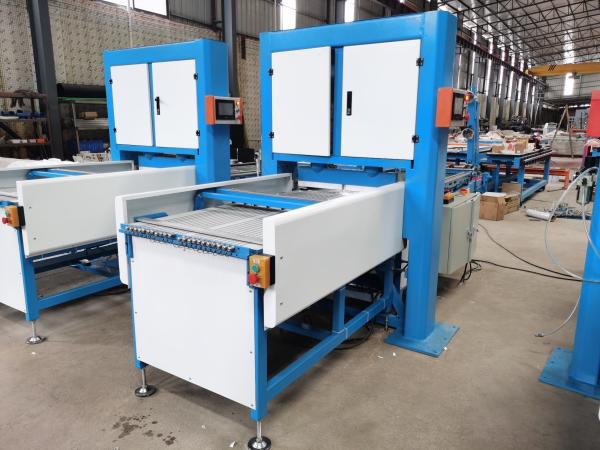

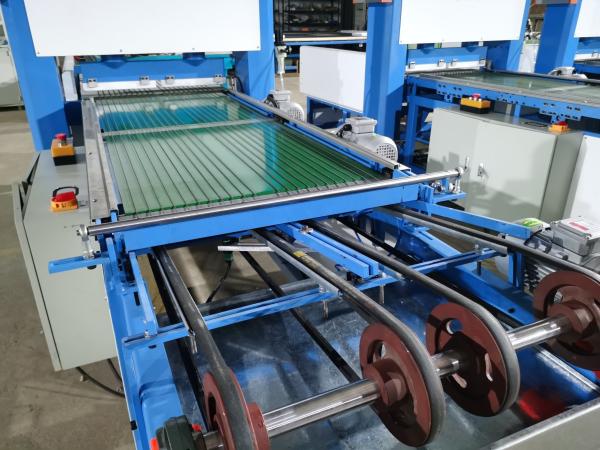

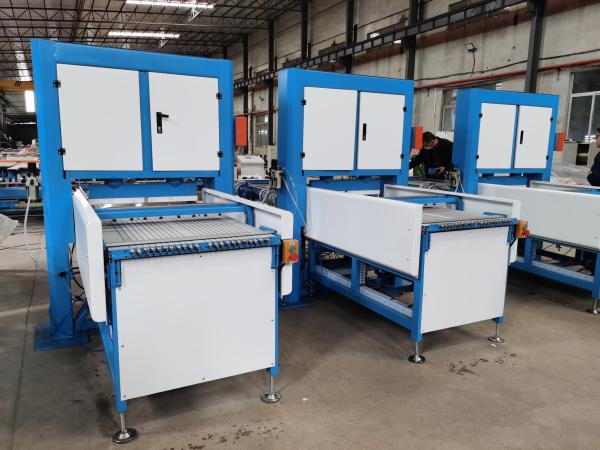

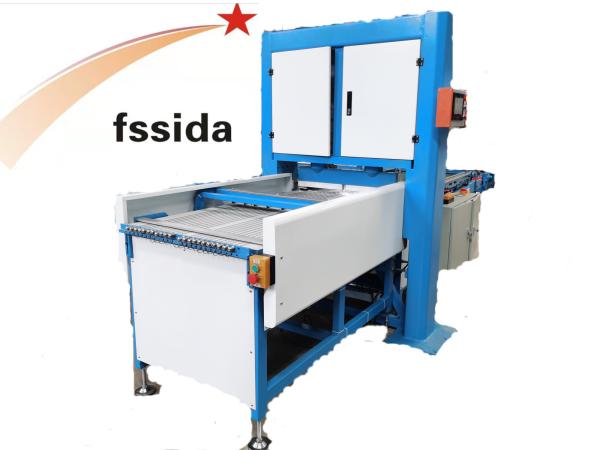

Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Machine introduction
This machine is a new type of mosaic breaking machine .

The machine has advanced technology in China, with characteristics of low carbon, environmental protection, high efficiency .It is easy to operate, one person can operate multiple machines at the same time.

Main Parameters
Machine size(L×W×H) Glass thickness Produce speed Weight Power Air pressure needed Power voltage
4200×1550×1900mm 3-12mm 40-600 SQM/Day 1100kg 8kw 0.4-0.8pa 380V/50Hz
The main feature
  • Large and stable production capacity (processing glass 40-80 cubic meters/8 hrs).
  • Easy to operate, good flatness on all surfaces of the finished glass pellets, low breakage rate
  • The thickness of the broken glass is 3mm~12mm.
  • The minimum size of the broken glass particles is 15mmX15mm
  • It has a small, fast and flexible personality, the body occupies a small space, and the operation is quick.
  • The size of the cracked glass can be flexibly changed at any time.
  • Using Siemens PLC control system and Japanese Panasonic servo driver, the product quality is guaranteed.
  • All parameters are set on the text display, which is very convenient to browse and modify.
  • Automatic typesetting.
Mosaic parameter
Mosaic size
(MM)		 Glass sheet size (MM) Time/Cycle Qty of mosaic/Cycle SQM/ 8 Hours
15*15*8 488*457*8 1 minute 40 seconds 2025 Pcs 69 SQM
960 Pcs 74 SQM
23*23*8 488*457*8 1 minute 437 Pcs 110 SQM
25*25*8 488*457*8 342 Pcs 102 SQM
48*48*8 488*457*8 20 seconds 90 Pcs 497 SQM
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
Fully Automatic Glass Mosaic Stamping Machine Advanced Technology Easy Operation
