Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Specifications
Type :
Gluing Machine
Applicable Industries :
Manufacturing Plant
Showroom Location :
Turkey, Italy, Viet Nam, Indonesia, Russia, Thailand, Malaysia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Pump
Condition :
New
Application :
PU,epoxies ,silicone
Packaging Type :
Polywood case
Packaging Material :
Plastic, Polywood case
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V /380V
Place of Origin :
Guangdong, China
Brand Name :
Daheng
Weight :
500 KG
Warranty :
1 Year
Key Selling Points :
High Productivity
Definition :
Automatic Glue Dispenser
Feeding way :
Automatic Feeding
Function :
Vacuum , heat , stir , self-clean
mixing way :
Dynamic /static mixing
tank compacity :
10L,25L , 40L or customized
Precision :
±2%
Glue-out precision :
0.5-12g/s
speed :
0-300mm/s
Pump precision :
0.2g/s
Control system :
PLC programming
Marketing Type :
Ordinary Product
Packaging Details :
According to the customer requirement
Port :
Guangzhou
Supply Ability :
50 Piece/Pieces per Month MOQ=1PCS
Price :
$32,000.00/pieces 1-1 pieces
Description
Product Description

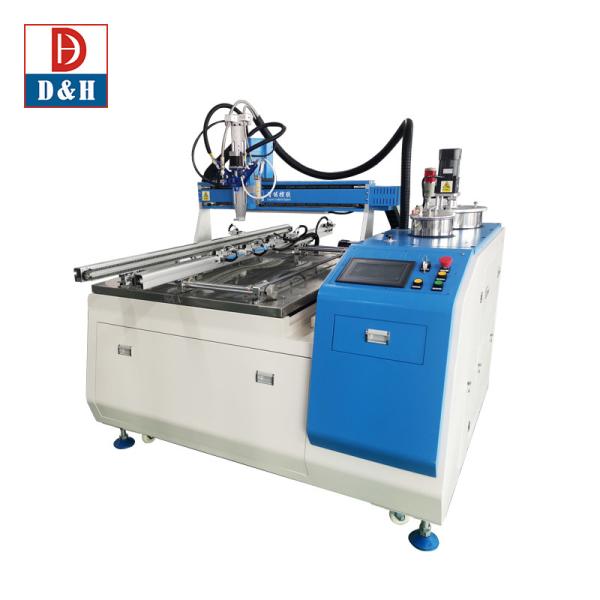

Gluing dispensing machine for epoxy ab glue China 3 axis 2K AB glue two component epoxy mixer dispense Automatic Glue Dispenser

Features and Benefits:

1. The glue potting system are for AB component materials for metering, mixing and potting .
2. Accurated metering and evenly mixing helps to avoid possible waste of glue.
3. Dispensing size and positioning keep consistently and fastly.
4. Good universality makes our machine suitable for applications of LED, electric and others glue potting and dispensing needed.
5. Easy to program and operate.
6.Fast metering & mixing and running speed keep potting with high efficiency.
7. Tally function, non-standard mode, tank level alert, filter mode, liquid display device, preventing backflow device and other functional device.
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser

Applications:

Reverse Sensor, Electronic Circuit Board, Electronic Ballast ，air Filters, LED products ,Electronic
components,Crafts，Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box ，Power module,Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. Etc
Specification
Potting working area
810mm×700mm×100mm
Processing
dot , line , arc , circle
Speed
0---250mm/s
Accuracy
≤±0.2mm
Mixing ratio
1 ：1 ---10：1
Out-glue speed
0.5g/s -12g/s
repeatability
≤±2%
program stock
99pcs
Viscosity
0cps~50000cps
Operation mode
Manual/auto/third party signal
Ratio
PLC/Double cylinder plunger pump
Flow control
Digital input
Program method
Teaching programming
Automatic controlling system
Touch screen / hand held tech box
Mixing method
Dynamic/static
Cleaning mode
Self-cleaning
Tank
Stainless steel material barrel
AB tank : 10L ,25L ,40L ,60L optional
Vacuum degas（-0.1MPa），4L/s
Liquid sensor
Tank stirring
Power supply
220V/50Hz/1500W(excluding heaters)
Input air pressure
0.4MPa—0.7MPa
Outer dimension
2092mm×1300mm X1157mm
Appearance material
Stainless steel material + industrial aluminum profile
Company Profile
About Company
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Certifications
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Exhibition
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
Packing & Delivery
Standard 3 Axis 2K AB Glue Two Component Epoxy Mixer Dispense Automatic Glue Dispenser
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service?
A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control?
A：We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q：What are your payment terms?
A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ?
A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
