Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Specifications
Type :
Gluing Machine
Applicable Industries :
Manufacturing Plant
Showroom Location :
Turkey, Italy, Viet Nam, Russia, Malaysia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Condition :
New
Application :
Machinery & Hardware
Packaging Type :
case
Packaging Material :
Plastic, Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
Customized
Place of Origin :
Guangdong, China
Brand Name :
D&H
Weight :
500 KG
Warranty :
1 Year
Key Selling Points :
high precision
Product name :
Doming sticker filling machine
Function :
AB epoxy mixing&stirring
speed :
0-200mm/s
metering precision :
±2%
Tank Capacity :
10L,25L,40L,60L,customized
Glue type :
two component
heating :
available
self-cleaning :
available
Mixing ratio :
1:1--10:1 adjustable
working area :
200x200x100mm
Marketing Type :
Ordinary Product
Packaging Details :
Standard export poly-wood case
Port :
Guangzhou
Supply Ability :
50 Piece/Pieces per Month MOQ=1PCS
Price :
$11,900.00/pieces 1-1 pieces
Description
Product Overview

Doming sticker filling machine glue sticker machine for epoxy glue dispenser automatic machine


Machine introduction

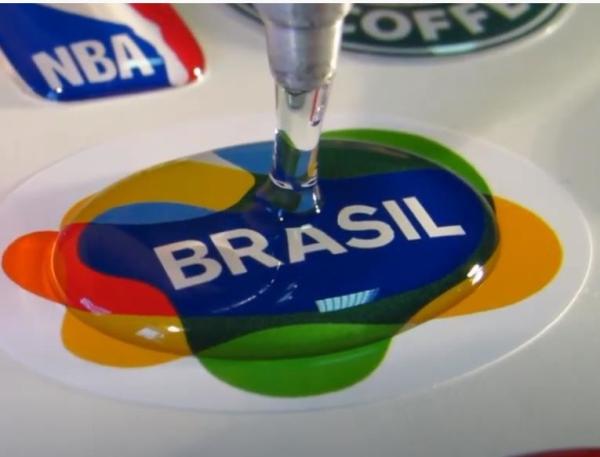

Our epoxy doming dispensing machine can help the manufacturer to produce different types of stickers , badge , key chains , arts , photo frame , and other arts which need to dome .

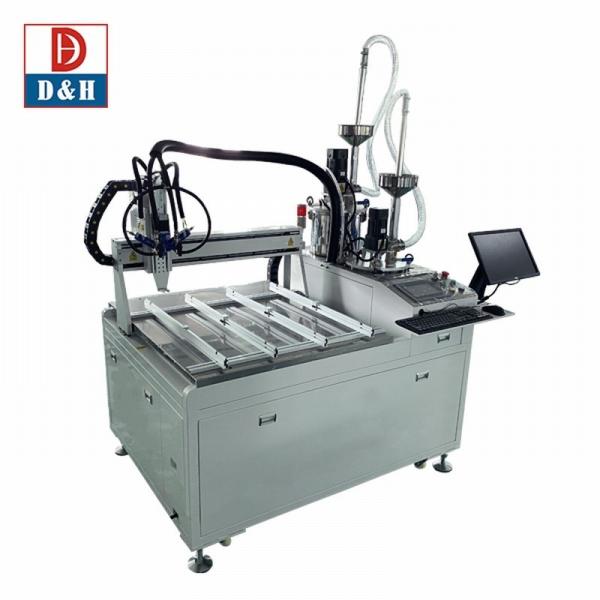

Daheng doming dispensing machine is used to bi-component epoxy , micro-injection , coating , spraying epoxy resin on the surface of the products . The machine is applied double vision location system , and replaces transitional manual injection to dispense different ratio epoxies .

Machine description and working principle
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pumps, supply to a mixing device fully mixing, and then potting/dispensing the desired products.
FEATURES AT A GLANCE
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Front elevation
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Down elevation
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Side elevation
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Requirements& application
Doming technology normally is used for advertising industry , automative industry , boards production , souvenirs products and so on . The doming requires unique characteristics like transparent , strong , non-yellowing in long time , non-toxic and so on .

Application for different stickers , badge , keychains , arts , photo frame , fridge magnet, lables , fashionable key chains ,badge ，boards ， and other crafts which need to dome process .
PRODUCT CONFIGURATION
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
700*700*100mm
Displacement speed
200mm/s（speed）
Out-glue speed
1-12g/s
Accuracy
±2%（output volume）±2%（mixing）
tolerance
≤0.2mm
Flow control
Digital input
Program memory
99pcs
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming
With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W
Air source
0.5-0.8Mpa
Viscosity range
50-20000cps
Outer dimension
1500L*1200W*1600H mm
A tank
25L stainless tank（optional）
B tank
10L stainless tank（optional）
Others
AB tank 、A pump、AB pipeline heating function
About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Certifications
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Exhibition
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
Packing & Delivery
Electric Doming Sticker Filling Machine for AB Epoxy Glue Dispenser Automatic System
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service?
A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control?
A：We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q：What are your payment terms?
A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ?
A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
