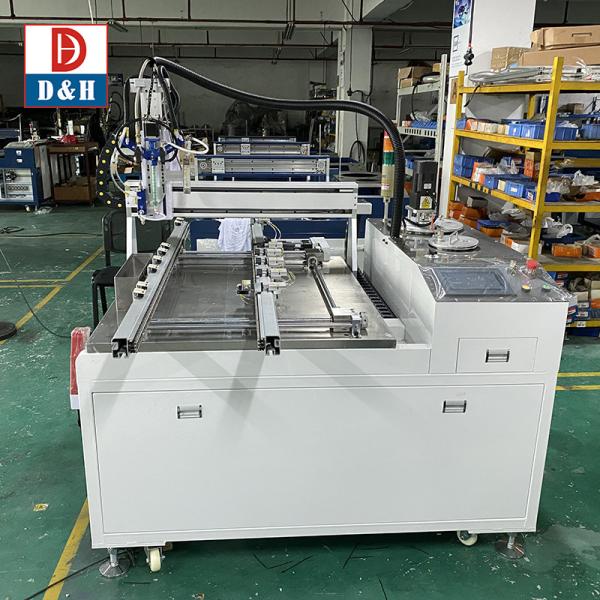

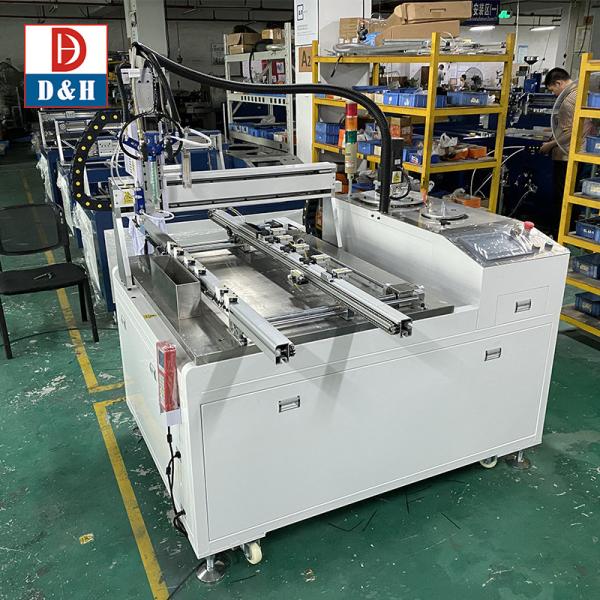

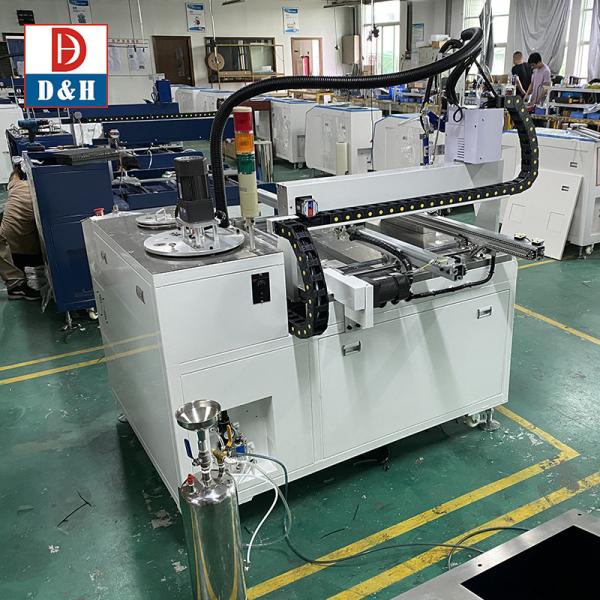

High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
Specifications
Type :
Gluing Machine
Applicable Industries :
Manufacturing Plant
Showroom Location :
Turkey, Italy, Viet Nam, Russia, Malaysia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Condition :
New
Application :
Machinery & Hardware
Packaging Type :
case
Packaging Material :
Plastic, Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
Customized
Place of Origin :
Guangdong, China
Brand Name :
D&H
Weight :
500 KG
Warranty :
1 Year
Key Selling Points :
high precision
Product name :
gluing machines
Function :
AB epoxy mixing&stirring
speed :
0-200mm/s
metering precision :
±2%
Tank Capacity :
10L,25L,40L,60L,customized
Glue type :
two component
heating :
available
self-cleaning :
available
Mixing ratio :
1:1--10:1 adjustable
working area :
700x700x100mm
Packaging Details :
Standard export poly-wood case
Port :
Guangzhou
Supply Ability :
50 Piece/Pieces per Month MOQ=1PCS
Price :
$11,900.00/pieces 1-1 pieces
Description

AB part epoxy urethane RTV silicone glue production line glue applicator machine gluing machines

Automatic AB potting dispensing machine is composed of Five parts:

1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.

Features

1、Controlling system of metering, mixing and potting.
2、Accurated metering and even mixing helps to avoid the waste of material.
3、Dispensing volume and positioning keep machine work consistent and fast.
4、Good universality
5、Easy to program and operate.
6、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device andother functional device.

Strong versatility / Multiple configuration / High production capacity / High precision
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
AB ratio:
100:100-100:10 adjustable
Movement Track:
Dot/Line/Arc/Circle
Speed:
300mm/s (Movement speed)
1-12g/s (gluing out speed)
Accuracy:
±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program:
99pcs/more
Input pressure:
0.5MPa-0.7MPa
Viscosity:
50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method:
Manual/Automatic
Meter Pump:
Gear pump/Screw pump/Double cylinder plunger pump
Flow Control:
Digital Input
Programming method:
Teaching programming
Automated control system:
PLC / touch screen (programming, modification, storage, etc.)
Glue control system:
AB glue suction valve to achieve independent operation of AB glue
Mixed mode:
dynamic and static optional, instant mixing, easy to clean
Tank：
stainless steel(40L)、(25L)、（10L）optional
Power supply:
220V/50Hz/1200W ( The power consumption without heater)

Application 1

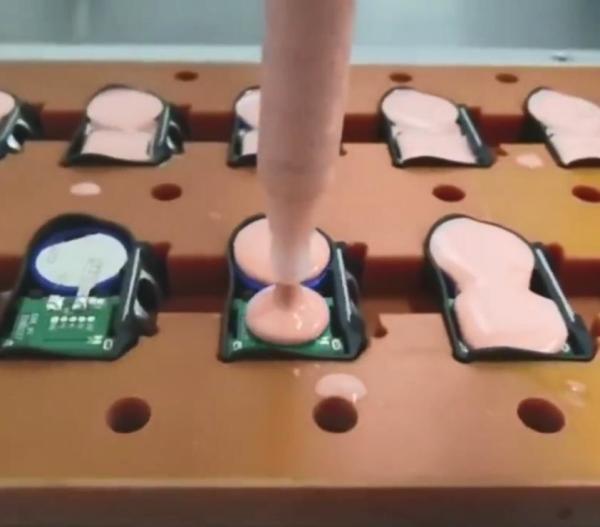

1. Potting&Casting:Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast ,aviation parts, aerospace.
2. Encapsulation & waterproof :LED strip ,PCB Board , led lamp , led bulb , aluminum ...
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine

Application 2

1. Bonding&dosing : LCD screen , medical parts，medical liquid ，ABS plastic
2. Doming&dispensing: Different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics .
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine

Suitable Materials:

2-part materials ,AB part compound materials , silicones , epoxies resin,PU, Ployster, polyurethane,UV materials，two component potting compound material ， 2K fuilds ， 2K liuquids material...
About Company
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
Certifications
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
Exhibition
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
Packing & Delivery
High Precision AB Part Epoxy Urethane RTV Silicone Glue Production Line Gluing Machine
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service?
A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control?
A：We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q：What are your payment terms?
A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ?
A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
