Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
Specifications
Model NO. :
SD-200
Glue Type :
Instant Glue
Application :
Machinery & Hardware, Chemical
Driven Type :
Pneumatic
Packaging :
Cartons
N.W :
4.5kg
Size :
25X15X12cm
Repeatability :
+/-0.01ml
Dispensing Frequency :
>800/Min
Power Input :
AC220V 50Hz
Pressure Input :
0.4-0.8MPa
Transport Package :
Wooden Carton Lined with Foaming PE
Specification :
CE & SGS
Trademark :
Daheng / OEM
Origin :
Guangzhou China
HS Code :
8500000
Supply Ability :
100PCS Monthly
Automatic Grade :
Manual
Gluing Mode :
Manual
Packaging Material :
Plastic
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

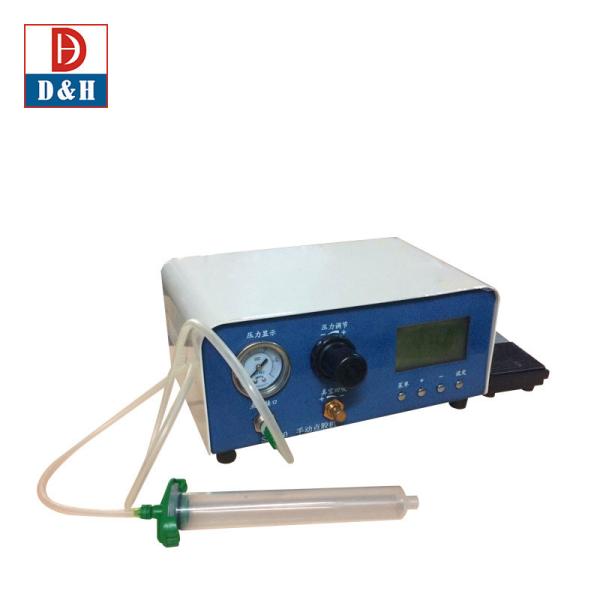

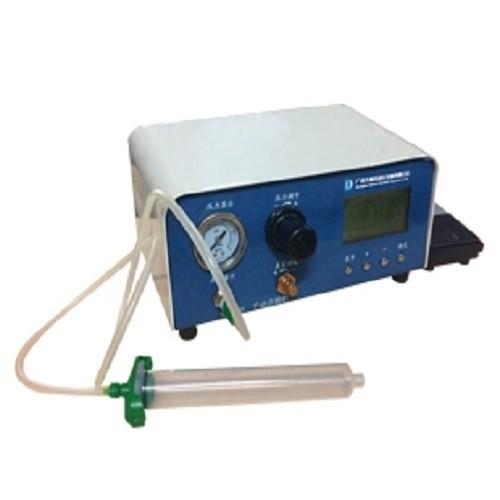

SD-200 Manual glue dispenser
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa



1. Tech Data

Time Display: LCD
Air pressure display: pressure gauge
Output pressure: adjusted by rotary knob
Suction pressure:micro-adjustable valve
Time adjustment: button
Operation mode: manual/automatic/circle work
Gluing precision: +/- 0.01ml
Dispensing frequency: ≥ 800 times/min
Dispensing needle:1-6(customized)
Moving mechanism:cantilever
Speed of X/Y/Z axles: 0-200mm/s(adjustable)
Repeat accuracy: ±0.02mm
Gluing accuracy: ±0.01ml
Dimension: L610 X W500 X H600mm
Weight: 40 kg
Voltage: AC220V 50Hz


Working principle
Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa
3. Glues Demanded:
solder paste, silver paste, UV glue, epoxy, intant glue, silicone and other liquid glue

Professional-Grade Pneumatic Glue Dispenser SD-200 with Pressure Input 0.4-0.8MPa

Model No.: SD-200
Time display LCD
Air pressure display Pressure gage
Input Aire pressure adjusted by rotary knob
Time adjustment button
Operation mode manual/Auto
Gluing accuracy +/-0.01ml
Repeatability >=800 times/S
Air pressure AC 220V.50HZ
Air source 0.4-0.8MPa


Version:0.9 StartHTML:0000000105 EndHTML:0000008109 StartFragment:0000000141 EndFragment:0000008069
Features.
1,Metal housing, more durable and not easy to break.
2,LCD screen display; higher precision
3,precision parts used.
4,vacuum back-draw function.
5,High precision back-draw valve, more stable.
6,More working mode: Auto mode, manual mode, and cycle mode are available.

Notes
1. Power cable must be safe into ground wire.
2. Once the glue is added into the syringe, keep it upright, otherwise the glue will run into the
machine inside.
3. No oil or wet moisture inside the air input!
4. You must turn slightly the back-draw valve; otherwise air bubble runs into the glue.
5. When the glue inside the syringe exceeds 4/5 of the capacity, please turn slightly the back-draw
valve, otherwise large glue quantity is sucked into the machine.
6. Never use chemical cleaner to wash the machine housing.
Eighth Installation:
1,Read carefully the user manual first.
2,Plug the glue dispensing converter into the joint of syringe.
3,Set the data wanted inside the machine.
4,Connect air.
5,Connect power
6,Open the switch
7,Install the needle
8,Add glue into the syringe.
9,Test machine and work.
