Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
Specifications
Type :
Gluing Machine
Applicable Industries :
Manufacturing Plant
Showroom Location :
Turkey, Italy, Viet Nam, Brazil, Indonesia, Mexico, Russia, Malaysia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Pump
Condition :
New
Application :
Commodity, Chemical, Machinery & Hardware
Packaging Type :
Cartons, case
Packaging Material :
Wood
Automatic Grade :
Semi-automatic
Driven Type :
Electric
Voltage :
1500W
Place of Origin :
Guangdong, China
Brand Name :
Daheng
Dimension(L*W*H) :
1020x500x1340mm
Weight :
290 KG
Warranty :
1 Year
Key Selling Points :
high accuracy
Description name :
2K resins compact mixing dispensing machine
Usage :
resins apply
Model Number :
JYPJ-1000
Speed :
12g/s
Function 1 :
resins feeding
fucntion 2 :
resins stirring
function 3 :
resins heating
functions 4 :
resins degas
functions 5 :
self-cleaning
Certification :
CE
Packaging Details :
Standard export ploywood case
Port :
Guangzhou/Shenzhen
Supply Ability :
1000 Piece/Pieces per Month
Price :
$20,000.00/pieces 1-1 pieces
Description

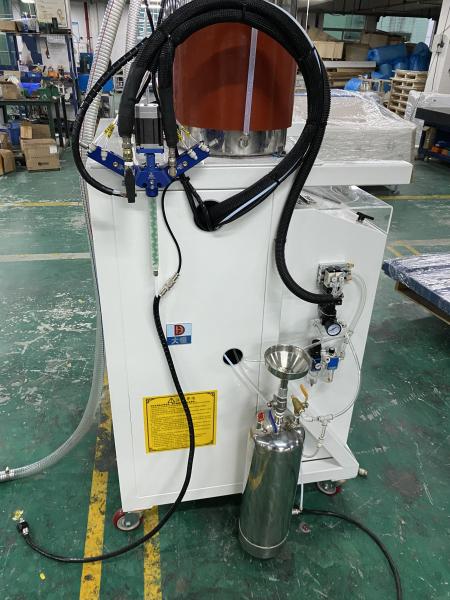

Complete compact 2K Dispensing metering resin machine

Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy

Main structural components of our potting and dispensing systems :

1. Two vacuum tanks

2. Two sucking hoses for feeding materials

3. Two sets of heating components

4. Two sets of stirrer blade with motors

5. Two sets of cylinder plunger pumps

6. Dual valves for glue potting process

7. One set of vacuum pump

8. One set of cleaning barrel

9. One set of PLC touch screen system

Main functions of our potting and dispensing machine:

1. Glue feeding from origin packs of resins .

2. Vacuum degas for A and B resins in tanks.

3. Tank stirring for A and B

4. Heating for A and B systems

5. Liquid level sensors of A and B tanks .

6. Self-cleaning for dispensing head (mixture in mixer tube)

7. Glue discharge function to avoid mixer tube cure in gap time .

8. Valve suck-back functions to prevent glue from dripping .

9. IO signal for connecting the production line and third party platform if needed .

10. Foot pedal or hand held glue gun or trigger to dispense or pot glue into products .

Characteristic of AB Epoxy resins

Epoxy resins have been widely used for many years – they are generally hard and tough and exhibit low shrinkage on cure.

They are characterised by an excellent level of mechanical properties, good high temperature performance and good adhesion to a wide variety of substrates, and show excellent chemical resistance across a wide range of chemicals.

The cross-linking or curing process generally takes place slowly especially where small volumes of resin are involved.

Fast cure hardeners can be used but these generate a lot of heat during cure, giving rise to a high exotherm which can damage electronic components and cause high mechanical stresses on both components and the circuit.

Epoxies Resins for Potting and Isolation in the Electronics and Electrical Industries:

Chemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy

Our potting and dispensing stories for epoxy resins :

Chemical Complete Compact 2K Dispensing Metering Resin Machine with High AccuracyChemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy

about

Chemical Complete Compact 2K Dispensing Metering Resin Machine with High AccuracyChemical Complete Compact 2K Dispensing Metering Resin Machine with High AccuracyChemical Complete Compact 2K Dispensing Metering Resin Machine with High AccuracyChemical Complete Compact 2K Dispensing Metering Resin Machine with High AccuracyChemical Complete Compact 2K Dispensing Metering Resin Machine with High Accuracy
