| Glue ratio | 1 :1 ---10:1 |
| Ratio acurracy | ±2% |
| Glue-out speed | 1g/s --24g/s |
| Glue-out accuracy | ±2% |
| Program memory | 99 pcs |
| Glue viscosity | 50cps~8000cps(Reference number) |
| Opearation Mode | Manual mode /Automatic mode |
| Ratio Control | PLC/ Double plunger pump (Can change different type of metering pumps) |
| Flow Control | Digital input |
| Parameter display | Pointer / digital display |
| Automatic control system | Touch screen / button switch/ third party signal |
| Mixing Method | Static mixing / Automatic cleaning |
| Storage Tank | Stainless steel A and B(10L,25L ,40L optional) |
| | Stainless steel cleaning berrel C(7L) |
| | Vacuum degas(-0.1MPa) |
| | Liquid level sensor(Low liquid level/high liquid level) |
| | A/B Tank stirring |
| | AB glue constant temperature heating(available) |
| | Glue filter |
| Power | 220V/50Hz/5000W |

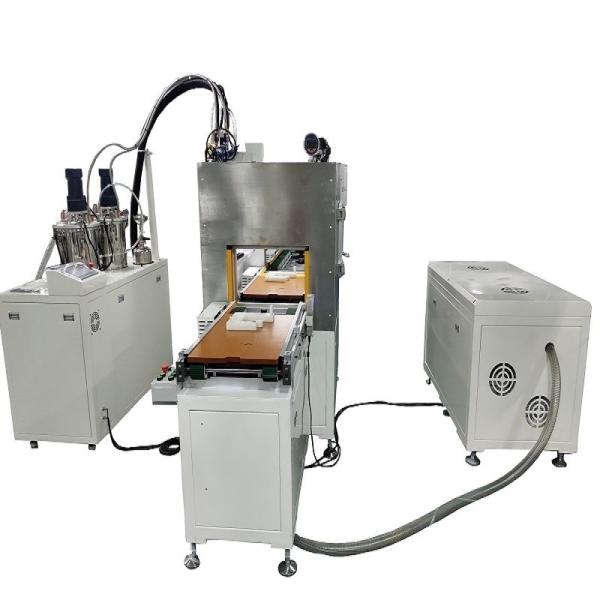

| Outer dimension | Glue Potting Machine:995mm×600mm×1500mm |
| Frame Materials | Cold rolled steel/industrial aluminum/stainless steel/sheet metal |
| Q:Do you offer oversea service? A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | | | | | ||||
| Q:How dose your factory do regarding quality control? A:We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | | | | | ||||
| Q:What are your payment terms? A:Normally, 30% advance by T/T and balance paid off before delivery. | | | | | ||||
| Q:Are you a factory or trading company ? A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. | | | | | ||||
