Specifications
Brand Name :
D&H
Model Number :
PGV-501
Certification :
CCC, CE
Place of Origin :
Made In China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
Polywooden case
Model NO. :
PGV500
Driven Type :
Electric
Glue & Ratio :
1:1 to 20:1, Epoxy, Silicone, PU, UV
Certificate :
Ce, SGS
Xyz Working Area :
700*700*100mm
Flow Speed :
0-66g/5s, or Customized
Additional Function :
Heating, Vacuum, Self-Refilling, Self-Cleaning
Transport Package :
Wood Box
Specification :
1500x1200x1500mm
Trademark :
DH
Origin :
China
Precision :
High Precision
Condition :
New
Warranty :
12 Months
Automatic Grade :
Automatic
Installation :
Vertical
Customization :
Available | Customized Request
Description

High Precision CCD Vision Dispensing System for Potting and Encapsulation Needs

High Precision CCD Vision Glue Dispensing System for Potting and Encapsulation Needs

High Precision CCD Vision Glue Dispensing System for Potting and Encapsulation Needs

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems ..2 Part Silicone plyurethane epoxy potting dispensing machine AB Resins compound dosing , dispensing ,potting system ,2K potting
technology AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine,Dual-component dispensing machine Meter-mix dispensing machine,Resin dispensing machine Adhesive dispensing system,Dispensing robot with high precision Dispensing valve, Liquid dispenser , Automated dispensing equipment.

Introduction :

1. Working Mode: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Core metering pump specially design for different material from low to high viscosities. 4. Mix glue A & B more evenly; no more or no less for agent B.

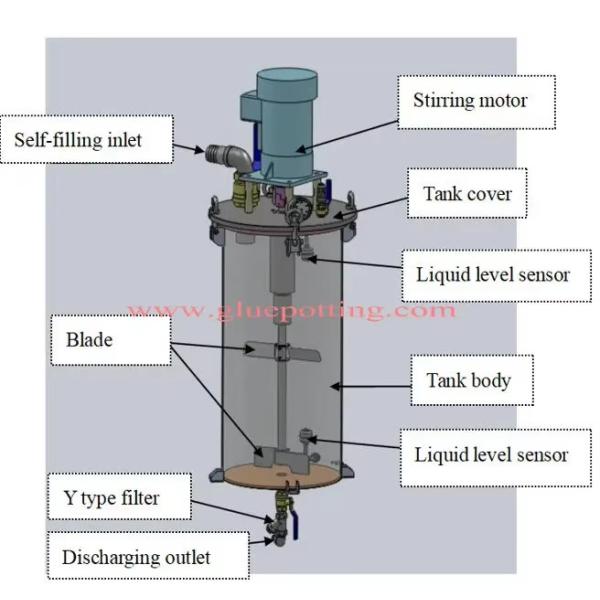

Tank system technology:

1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .

2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.

3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .

4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .

5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.

6 Tank with heater which can preheat materials to assure good flowability .
7 Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization .

High Precision CCD Vision Glue Dispensing System for Potting and Encapsulation Needs

D&H Pump technology

1. Two cylinder plunger pumps work by durable motors.

2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.

3.Also Suitable for high viscosity glue: 50cps~35000cps.

4. Suitable for big flow dispensing or slight flow dispensing.

5. Suitable for frequent start and stop dispensing.

6. Anti-wear, Anti-corrosion, super long life time.

High Precision CCD Vision Glue Dispensing System for Potting and Encapsulation Needs

Valve technology

1. Two cylinder plunger pumps work by durable motors.

2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.

3. Also Suitable for high viscosity glue: 50cps~35000cps.

4 . Suitable for big flow dispensing or slight flow dispensing.

5. Suitable for frequent start and stop dispensing.

6. Anti-wear, Anti-corrosion, super long life time.

High Precision CCD Vision Glue Dispensing System for Potting and Encapsulation Needs


Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGV-501 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

High Precision CCD Vision Glue Dispensing System for Potting and Encapsulation Needs
High Precision CCD Vision Glue Dispensing System for Potting and Encapsulation Needs


Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

High Precision CCD Vision Glue Dispensing System for Potting and Encapsulation Needs

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Model & Type PGV-501 Full Auto Gluing Machine Dispenser
Certificate CE, SGS
Dimension 1900x1650x2100mm
N.W. 260kg
XYZ Working Area 600x600x100mm
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 3kw - 5kw
Additional Function Heating, Vacuum, Self-refilling, Self-cleaning
Application LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^
