50/25 Hooked End Concrete Steel Fiber Resisting Crack For Shotcrete
50/25 Hooked End Concrete Steel Fiber Resisting Crack For Shotcrete
Specifications
Brand Name :
Yusen
Model Number :
YS-50/25
Certification :
ISO CE
Place of Origin :
China
MOQ :
1T
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000T/m
Delivery Time :
10Days
Packaging Details :
Pallet
Product name :
50/25 Hooked End Loose Concrete Steel Fiber Resisting Crack In Shotcrete
Aspect ratio :
30-100
Package :
Brown paper bag
Usage :
Airport runways and taxiways
Description

50/25 Hooked End Loose Concrete Steel Fiber Resisting Crack In Shotcrete

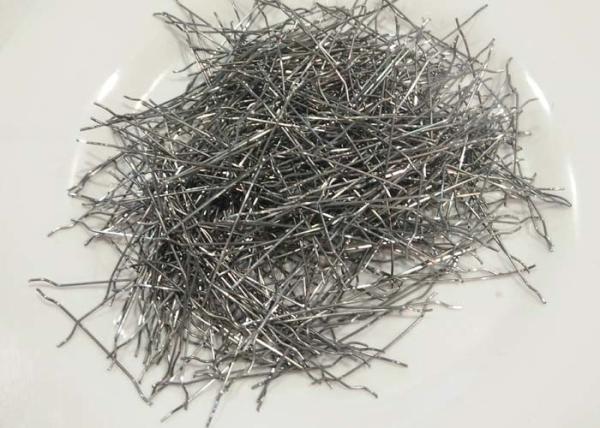

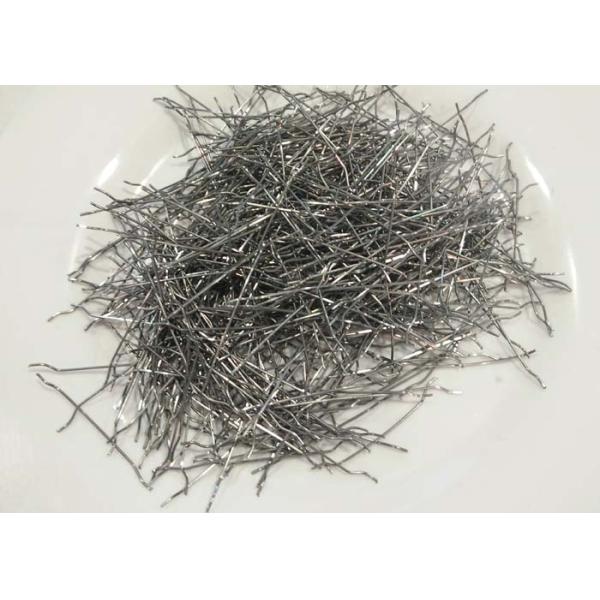

Concrete Steel Fiber Introduction

This concrete steel fiber is made of low carbon steel wire,high carbon steel wire,or stainless steel wire .
It has excellent tensile, bending and shearing strength, high tenacity,resistance against cracking,

impact and fatigue.

We supply Steel Fibers made from prime quality hard-drawn steel wire to ensure high tensile strength.The wire is deformed with hooked ends and cut to lengths, used in reinforcement concrete, mortar and other composite materials.


Concrete Steel Fiber Specification

Concrete
Steel Fiber		 Model Diameter (mm) Length (mm) Aspect ratio (mm) Tensile strength (MPa)
YS-60/60 1 60 60 ≥1000
YS-50/50 1 50 50 ≥1000
YS-65/60 0.9 60 65 ≥1000
YS-55/50 0.9 50 55 ≥1000
YS-80/60 0.75 60 80 ≥1000
YS-45/35 0.75 35 45 ≥1000
YS-50/30 0.6 30 50 ≥1100
YS-55/30 0.55 30 55 ≥1100
YS-65/35 0.53 35 65 ≥1100
YS-60/30 0.5 30 60 ≥1100
YS-50/25 0.5 25 50 ≥1100
YS-60/25 0.4 25 60 ≥1100

Concrete Steel Fiber Mixing Proportion

Areas of application LBS/Y3 (KG/M3)
Industrial Ground Floor Slabs 20-120 12-72
Airport(aprons, taxiways and runways) 20-160 12-95
Dolomite 80 48
Cemetery 25 15
Cement Slurry 40-120 20-72
Military Structure 160-200 95-120
Maritime 40-160 24-36
Highways 50-140 30-78
Bridge Decks 50-160 30-95
Dam and Stabilization 120 72
Commercial and Residential slabs 40-100 24-60
Cement Conduits 100-120 60-72
Cesspools 40 24
Shotcrete 40-60 24-36
Roads 20-25 12~15


Advantage for Concrete Steel Fiber:

  • Increase impact resistance
  • Increase fatigue effect
  • Increase crack resistance
  • Increase the concrete performance against thermal variations
  • Get minor permeability

Package and Delivery

50/25 Hooked End Concrete Steel Fiber Resisting Crack For Shotcrete

50/25 Hooked End Concrete Steel Fiber Resisting Crack For Shotcrete
