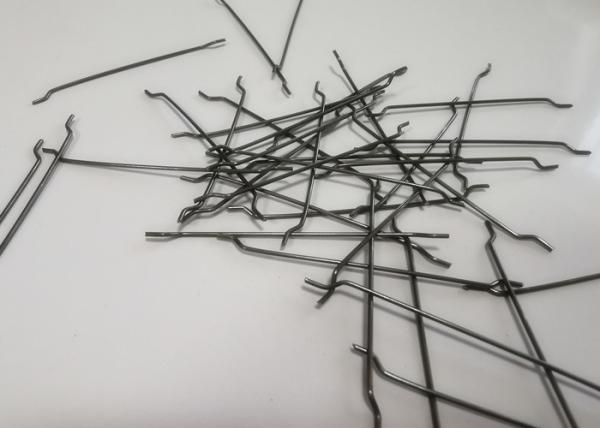

60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure
60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure
Specifications
Brand Name :
Yusen
Model Number :
YS-60/60
Certification :
ISO CE
Place of Origin :
China
MOQ :
1T
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000T/m
Delivery Time :
10Days
Packaging Details :
Pallet
Product name :
60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure
Key words :
Steel fibre
Diameter :
1.0mm
Length :
60mm
Color :
Black and smooth
Material :
Annealed wire
Stanadard :
ASTM A 820
Packing :
20kgs/bag
Description

60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure


Concrete Steel Fiber Introduction

This concrete steel fiber is made of low carbon steel wire,high carbon steel wire,or stainless steel wire .
It has excellent tensile, bending and shearing strength, high tenacity,resistance against cracking,

impact and fatigue.

It is widely used for buildings, road surface, bridges, tunnels, airport road surface,water conservancy

projects, military engineering, hydro-project and all kinds of building products.

Concrete Steel Fiber Specification

Concrete
Steel Fiber		 Model Diameter (mm) Length (mm) Aspect ratio (mm) Tensile strength (MPa)
YS-60/60 1 60 60 ≥1000
YS-50/50 1 50 50 ≥1000
YS-65/60 0.9 60 65 ≥1000
YS-55/50 0.9 50 55 ≥1000
YS-80/60 0.75 60 80 ≥1000
YS-45/35 0.75 35 45 ≥1000
YS-50/30 0.6 30 50 ≥1100
YS-55/30 0.55 30 55 ≥1100
YS-65/35 0.53 35 65 ≥1100
YS-60/30 0.5 30 60 ≥1100
YS-50/25 0.5 25 50 ≥1100
YS-60/25 0.4 25 60 ≥1100

Concrete Steel Fiber Mixing Proportion

Areas of application LBS/Y3 (KG/M3)
Industrial Ground Floor Slabs 20-120 12-72
Airport(aprons, taxiways and runways) 20-160 12-95
Dolomite 80 48
Cemetery 25 15
Cement Slurry 40-120 20-72
Military Structure 160-200 95-120
Maritime 40-160 24-36
Highways 50-140 30-78
Bridge Decks 50-160 30-95
Dam and Stabilization 120 72
Commercial and Residential slabs 40-100 24-60
Cement Conduits 100-120 60-72
Cesspools 40 24
Shotcrete 40-60 24-36
Roads 20-25 12~15


Advantage for Concrete Steel Fiber:

1. Totally or partially replace the steel bar,save material and labor cost

2. Make the concrete slab thinner

3. Wider joint spacing

4. Easy to use

5. Speed up the process of construction

6. Insisting crack

Package and Delivery

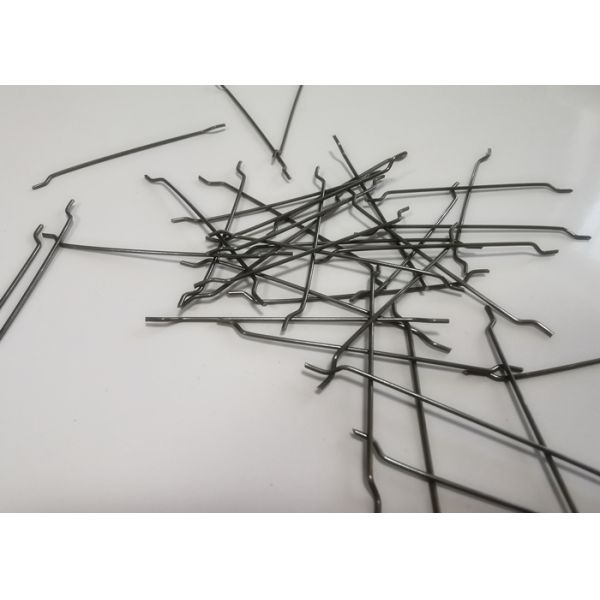

60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure



60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure

60/60 Hooked End Loose Concrete Carbon Steel Fiber for Reinforced in Infrastructure
